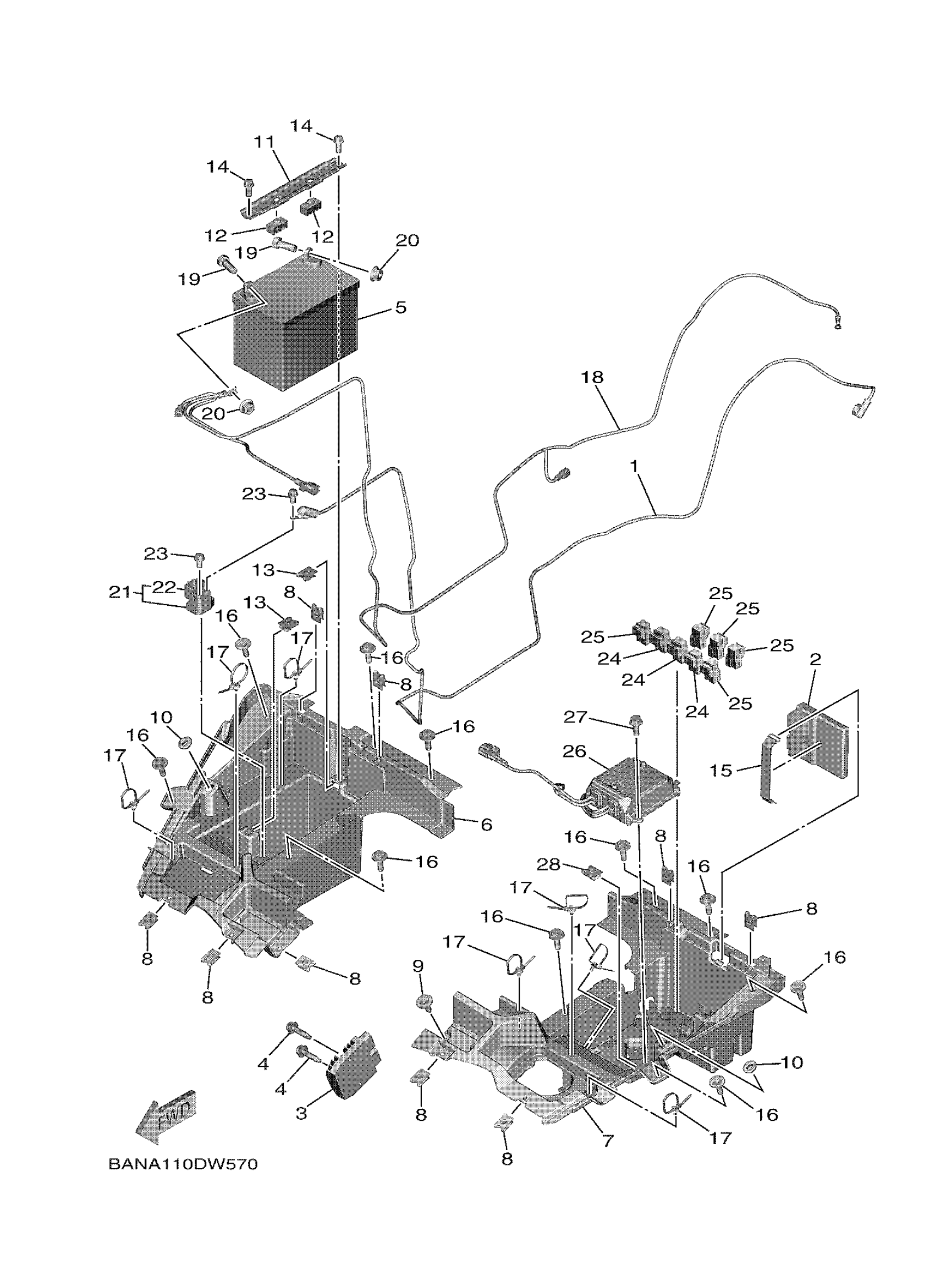

Yamaha YXE85WTZSB (WOLVERINE X2 850 XT R) DD61 2025 ELECTRICAL 2 Diagram

#

Description
Price

1

CORD, STARTER MOTOR

BG4-81815-00-00

Unavailable

2

ENGINE CONTROL UNI

BAR-8591A-01-00

Unavailable

3

RECTIFIER & REGULATOR ASSY

B5H-81960-00-00

Unavailable

4

BOLT, FLANGE

90105-06833-00

$1.63

5

11-U1LD GS BATTERY

11U-1LD00-00-00

Unavailable

6

BOX, BATTERY 1

BG4-H212B-00-00

$70.55

7

PANEL, SWITCH

BG4-H2565-00-00

$77.77

8

NUT, SPRING

90183-062A1-00

$1.75

9

BOLT, WITH WASHER

90119-06226-00

$2.12

10

GROMMET(4DN)

90480-01558-00

$3.68

11

BRACKET, BATTERY

2HC-H2128-00-00

$8.51

12

PAD, SEAT

3C3-24741-00-00

$7.77

13

NUT, SPRING

90183-062A1-00

$1.75

14

BOLT, FLANGE

95022-06014-00

$2.46

15

BAND, BATTERY

5JJ-82131-00-00

$10.74

16

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

17

CLAMP

1NS-F1338-00-00

Unavailable

18

WIRE, MINUS LEAD

BG4-82116-00-00

Unavailable

19

BOLT(6TD)

97080-08020-00

Unavailable

20

NUT

90179-08015-00

Unavailable

21

STARTER RELAY ASSY (RC19-080A)

5B4-81940-00-00

Unavailable

22

FUSE (10A)

42X-82151-00-00

Unavailable

23

BOLT, FLANGE

95022-06008-00

Unavailable

24

RELAY ASSY

5DM-81950-01-00

Unavailable

25

RELAY ASSY (8DM-11)

8DM-81950-11-00

Unavailable

26

POWER STRG. CONT. UNIT ASSY

BAN-859A0-01-00

Unavailable

27

BOLT, FLANGE DEEP RECESS

95D32-06016-00

Unavailable

28

NUT, SPRING

90183-062A1-00

$1.75
