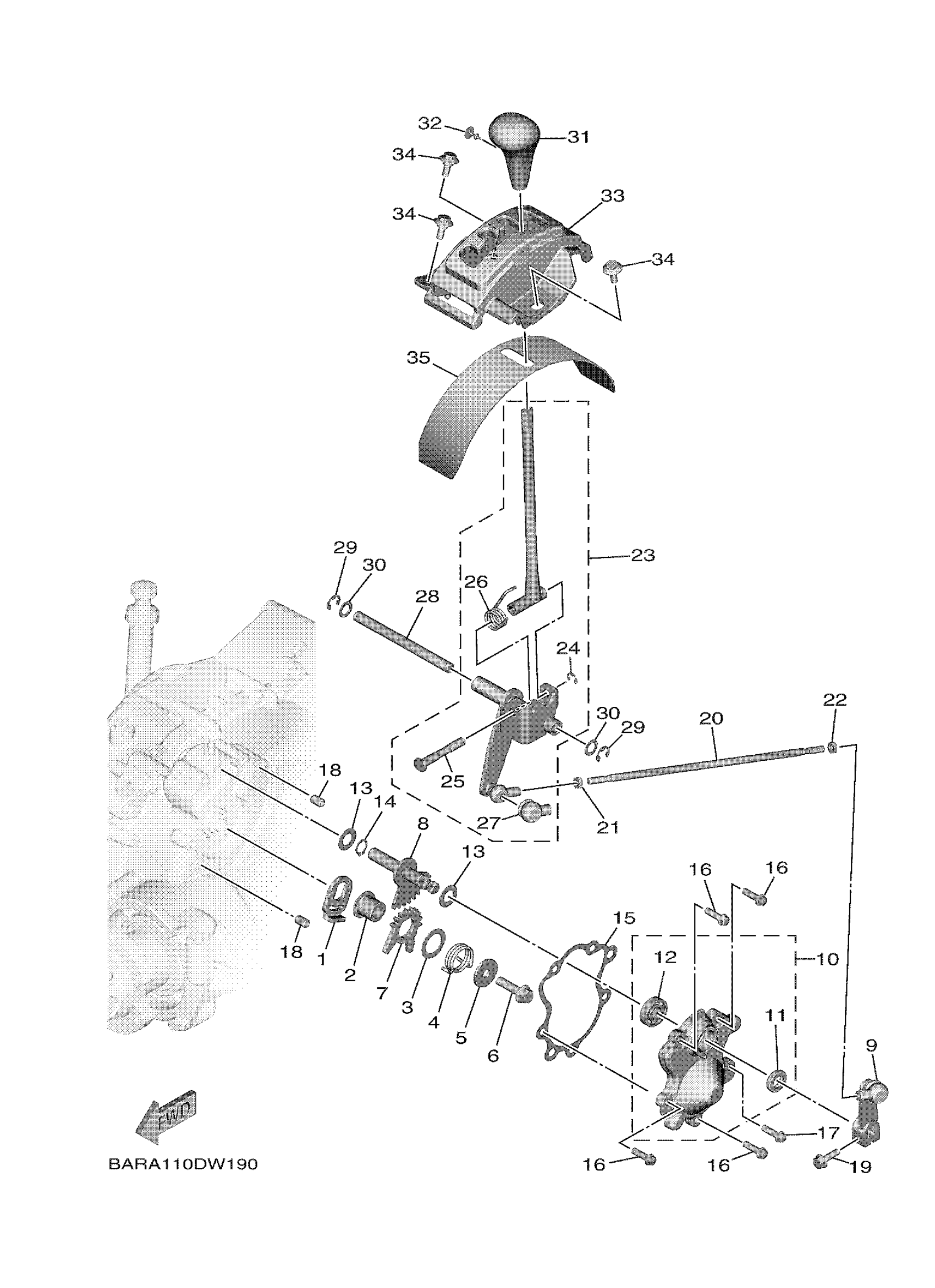

Yamaha YXE85WTZRD (WOLVERINE X2 XT R) BANV 2024 SHIFT SHAFT Diagram

#

Description
Price

1

LEVER

BG4-18198-00-00

$4.88

2

COLLAR

90387-13007-00

Unavailable

3

WASHER PLATE 328171160000

90201-20276-00

$8.49

4

SPRING, TORSION

90508-32143-00

$3.76

5

WASHER, PLATE (8M2)

90201-083A8-00

$2.02

6

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

7

LEVER

BG4-18191-00-00

$9.49

8

SHIFT SHAFT COMP.

BG4-18103-00-00

$38.99

9

SHIFT GUIDE COMP.

BG4-18104-00-00

Unavailable

10

SHIFTER BRKT. ASSY

BG4-18380-00-00

Unavailable

11

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

12

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

13

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

14

CIRCLIP(10Y)

99009-12400-00

$3.59

15

GASKET

BG4-18146-00-00

$8.49

16

. BOLT, FLANGE

95027-06020-00

Unavailable

17

BOLT, FLANGE

95022-06020-00

Unavailable

18

PIN, DOWEL

99530-08012-00

Unavailable

19

BOLT, FLANGE

95817-06020-00

Unavailable

20

ROD, SHIFT

BG4-18115-00-00

Unavailable

21

NUT (2H9)

90170-06228-00

Unavailable

22

NUT(JN5)

95317-06700-00

Unavailable

23

SHIFT LEVER ASSY

BG4-E8150-00-00

Unavailable

24

CIRCLIP(53L)

99001-06600-00

Unavailable

25

SHAFT, SHIFT

1HP-E8125-00-00

Unavailable

26

SPRING, RETURN

1HP-E8196-00-00

Unavailable

27

COVER, DUST

2H9-18154-00-00

Unavailable

28

PIN, SHIFT

BG4-18173-00-00

Unavailable

29

CIRCLIP(2R6)

99001-08600-00

Unavailable

30

WASHER, PLAIN(735)

90201-10119-00

Unavailable

31

KNOB, SHIFT LEVER

28P-18174-00-00

Unavailable

32

RIVET(81E)

90269-05055-00

Unavailable

33

GUIDE, SHIFT

BG4-E8172-00-00

Unavailable

34

BOLT

90109-06172-00

Unavailable

35

COVER, DUST

1HP-E8154-01-00

Unavailable
