Description

Price

1

BRACKET,PEDL SUPRT

1XD-F2548-10-00

$61.99

2

BOLT, FLANGE

95812-08020-00

$2.80

3

ACCEL PEDAL ASSY

B4J-F7801-00-00

$28.99

4

WASHER, PLATE

90201-15018-00

$7.49

5

CIRCLIP (122)

93430-12008-00

$8.49

6

SPRING, TENSION

90506-23023-00

$5.49

7

PEDAL, BRAKE

B4J-F7200-00-00

Unavailable

8

WASHER, PLATE

90201-15018-00

$7.49

9

CIRCLIP (122)

93430-12008-00

$8.49

10

SPRING, TENSION (2X4)

90506-20192-00

$7.49

11

CABLE, THROTTLE 1

BG4-26311-02-00

Unavailable

12

MUD GUARD COMP.

B4J-F1620-00-00

$13.49

13

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

14

GUSSET 3

BAR-F112A-00-00

$14.99

15

BOLT, WITH WASHER

90119-06226-00

$8.49

16

PARKING LEVER ASSY

BDW-F5690-00-00

Unavailable

17

SWITCH COMP.

B4J-H251S-00-00

Unavailable

18

BOLT, FLANGE

95817-06012-00

Unavailable

19

WIRE, BRAKE 1

BAR-26341-01-00

Unavailable

20

CLAMP(JN6)

90464-40825-00

Unavailable

21

CLAMP

90464-48800-00

Unavailable

22

MOLD, FUEL TANK

31A-24188-01-00

Unavailable

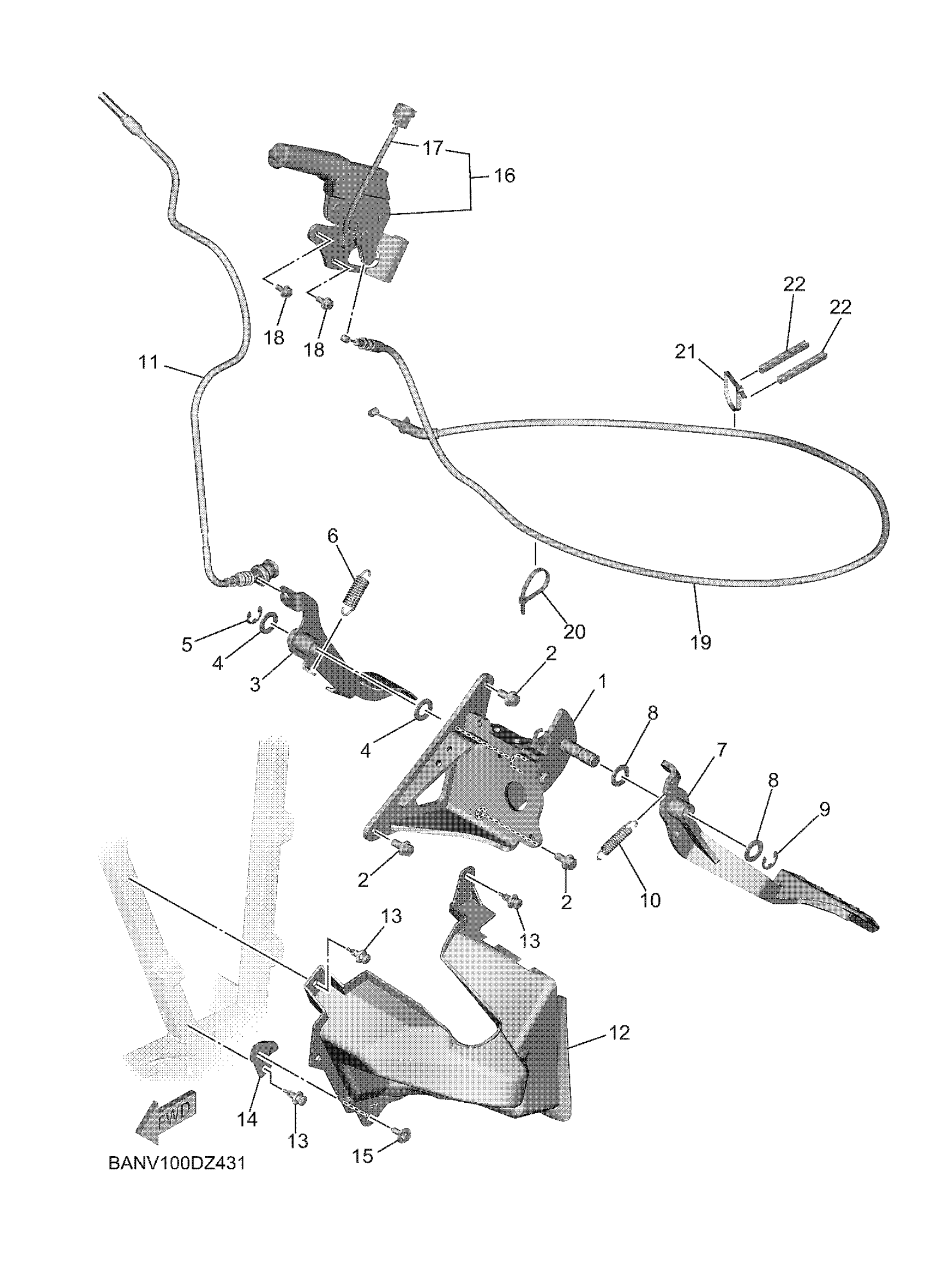

Yamaha YXE85WTZRD (WOLVERINE X2 XT R) BANV 2024 PEDAL WIRE Diagram

BRACKET,PEDL SUPRT

BOLT, FLANGE

ACCEL PEDAL ASSY

WASHER, PLATE

CIRCLIP (122)

SPRING, TENSION

PEDAL, BRAKE

WASHER, PLATE

CIRCLIP (122)

SPRING, TENSION (2X4)

CABLE, THROTTLE 1

MUD GUARD COMP.

RIVET,SPEC'L SHAPE

GUSSET 3

BOLT, WITH WASHER

PARKING LEVER ASSY

SWITCH COMP.

BOLT, FLANGE

WIRE, BRAKE 1

CLAMP(JN6)

CLAMP

MOLD, FUEL TANK
