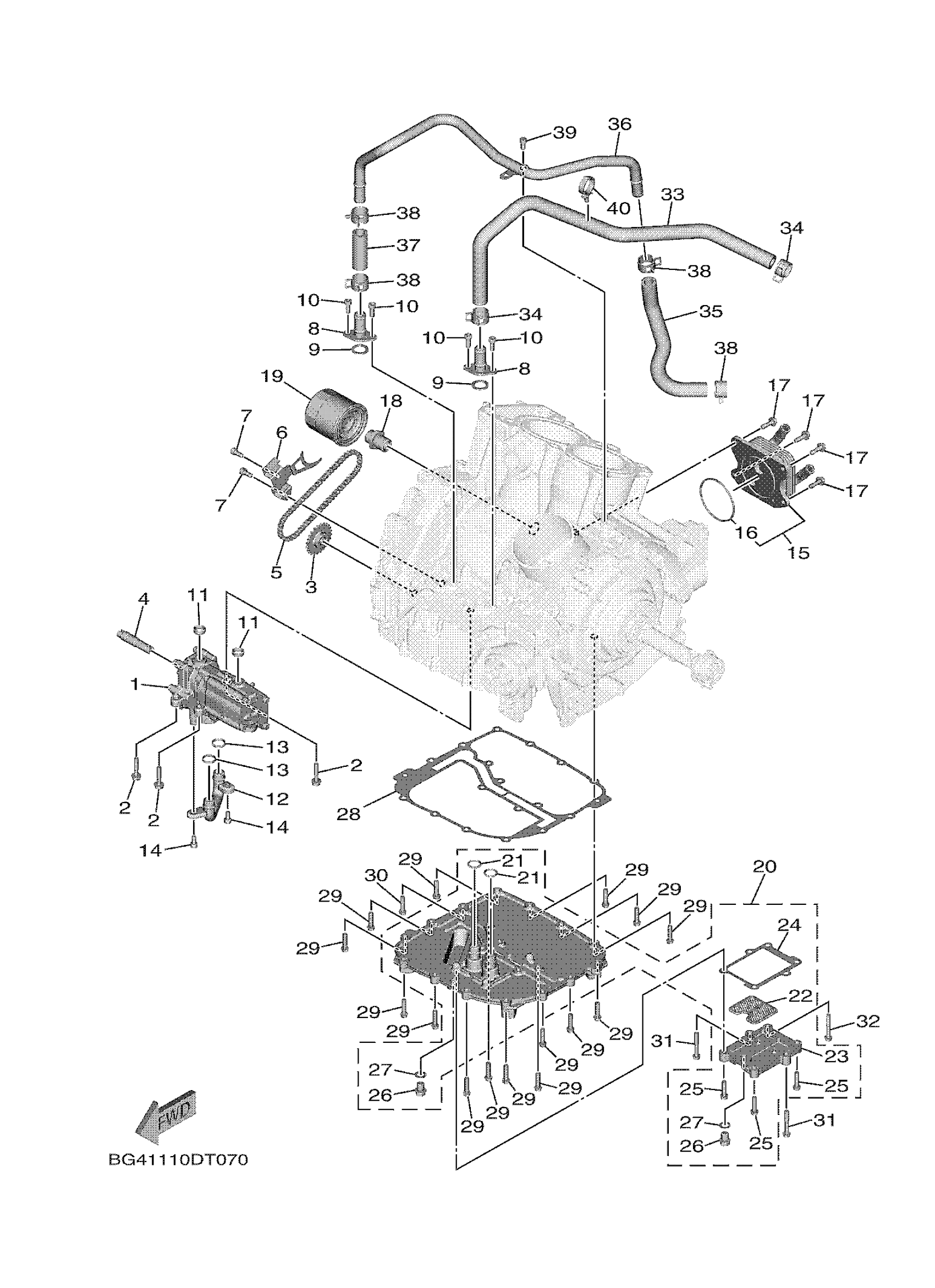

Yamaha YXE85WTZRD (WOLVERINE X2 XT R) BANV 2024 OIL PUMP Diagram
#
1
OIL PUMP ASSY
B4D-E3300-00-00
$179.99
2
BOLT, FLANGE
95812-06030-00
$8.49
3
SPROCKET, DRIVEN
BG4-E3355-10-00
Unavailable
4
SHAFT, DRIVEN GEAR
B4D-E3344-10-00
$126.99
5
CHAIN (DID25H-62LE)
94581-79062-00
$23.99
6
HOLDER
B4D-E3898-00-00
$14.99
7
BOLT (33M)
91312-06014-00
$5.60
8
CONNECTOR, SUCTION PIPE
B4D-E3115-00-00
Unavailable
9
O-RING (26H)
93210-16629-00
$7.49
10
BOLT,SOCKET
91317-06016-00
$1.25
11
GASKET
5GJ-13475-00-00
$5.49
12
PIPE, OIL 2
BG4-13418-00-00
Unavailable
13
O-RING
93210-14003-00
$8.49
14
BOLT,SOCKET
91317-06012-00
$8.49
15
OIL COOLER ASSY
BG4-13470-00-00
$221.99
16
O-RING
2HC-13473-00-00
Unavailable
17
BOLT, HEXAGON SOCKET HEAD
90110-06163-00
Unavailable
18
BOLT, UNION
90401-20008-00
Unavailable
19
ELEMENT ASSY, OIL CLEANER
1WD-E3440-21-00
Unavailable
20
STRAINER COVER ASSY
B4D-E3400-00-00
Unavailable
21
O-RING
93210-14003-00
$8.49
22
STRAINER, OIL
B4D-E3411-00-00
Unavailable
23
COVER 1
B4D-E3881-00-00
Unavailable
24
GASKET
B4D-E3475-00-00
Unavailable
25
BOLT, FLANGE
95022-06025-00
Unavailable
26
PLUG STRAIGTSCREW 367185880000
90340-10003-00
Unavailable
27
GASKET (1KH,1.0T)
90430-10148-00
Unavailable
28
GASKET, STRAINER COVER
B4D-E3414-00-00
Unavailable
29
BOLT, FLANGE
95022-06025-00
Unavailable
30
BOLT, FLANGE
90105-06221-00
Unavailable
31
BOLT, FLANGE
95022-06040-00
Unavailable
32
BOLT, FLANGE
90105-06224-00
Unavailable
33
HOSE, OIL 1
BG4-E316F-00-00
Unavailable
34
CLIP(34X)
90467-22097-00
Unavailable
35
HOSE, OIL 2
BG4-E316G-00-00
Unavailable
36
PIPE, DELIVERY 1
BG4-E3161-01-00
Unavailable
37
HOSE, OIL 1
2HC-E3464-00-00
Unavailable
38
CLIP(34X)
90467-22097-00
Unavailable
39
BOLT,SOCKET
91317-06012-00
$8.49
40
CLAMP(4NK)
90464-24230-00
Unavailable
