- YXE85WTZRD (WOLVERINE X2 XT R) BANV 2024
FRONT SUSPENSION & WHEEL

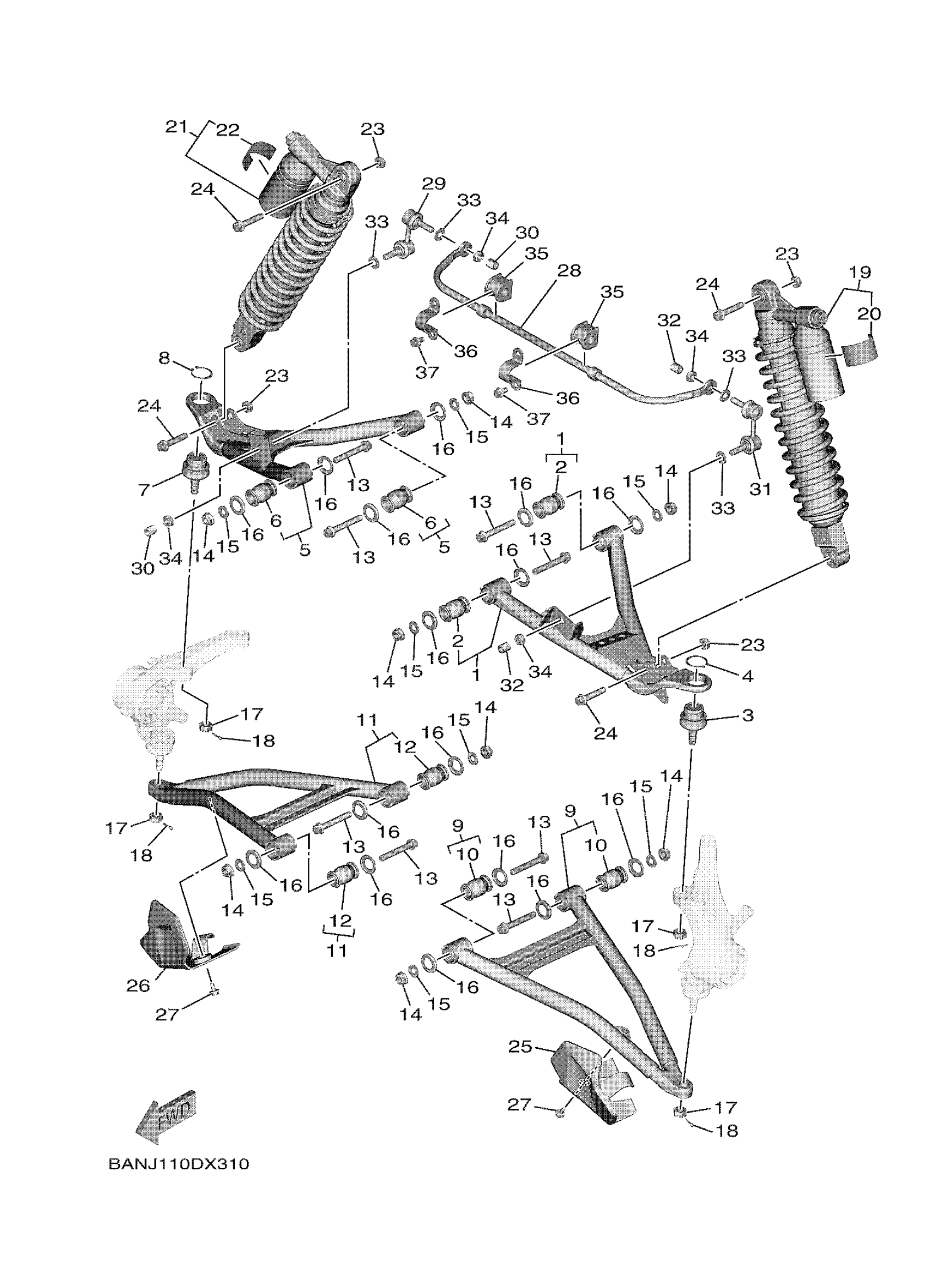

Yamaha YXE85WTZRD (WOLVERINE X2 XT R) BANV 2024 FRONT SUSPENSION & WHEEL Diagram
#
1
FRONT UPPER ARM CO
BAR-F3540-10-00
Unavailable
2
BUSH
B4J-F3526-01-00
Unavailable
3
BALL JOINT 2
1XD-23579-00-00
$76.99
4
CIRCLIP
93410-32075-00
$9.49
5
FRONT UPPER ARM CO
BAR-F3550-10-00
Unavailable
6
BUSH
B4J-F3526-01-00
Unavailable
7
BALL JOINT 2
1XD-23579-00-00
$76.99
8
CIRCLIP
93410-32075-00
$9.49
9
FRONT LOWER ARM CO
BAR-F3570-10-00
$88.99
10
BUSH
B4J-F3526-01-00
Unavailable
11
FRONT LOWER ARM CO
BAR-F3580-10-00
$88.99
12
BUSH
B4J-F3526-01-00
Unavailable
13
BOLT, FLANGE
90105-12095-00
$9.49
14
NUT, SELF-LOCKING
90185-12002-00
$12.49
15
WASHER, PLATE
90201-12045-00
$5.60
16
COVER, THRUST 1
B4J-F3517-00-00
Unavailable
17
NUT, CASTLE
90171-12001-00
Unavailable
18
PIN, COTTER
91490-25020-00
Unavailable
19
FR. SHOCK ABSORBER ASSY. ,1
B8K-F350A-91-00
Unavailable
20
LABEL, WARNING
B4J-F2259-00-00
Unavailable
21
FR. SHOCK ABSORBER ASSY. ,2
B8K-F350B-91-00
Unavailable
22
LABEL, WARNING
B4J-F2259-00-00
Unavailable
23
NUT, SELF-LOCKING
90185-10012-00
Unavailable
24
BOLT, FLANGE
90105-10283-00
Unavailable
25
COVER, UNDER 1
2MB-F3123-01-00
Unavailable
26
COVER, UNDER 2
2MB-F3133-01-00
Unavailable
27
BOLT, WITH WASHER
90119-06152-00
Unavailable
28
BAR, STABILIZER FR
B8K-F386E-01-00
Unavailable
29
JOINT, STABILIZER 1
16B-2385L-10-00
Unavailable
30
HOSE (L15)
90445-13030-00
Unavailable
31
JOINT, STABILIZER 2
16B-2385M-10-00
Unavailable
32
HOSE (L15)
90445-13030-00
Unavailable
33
WASHER, PLATE
90201-10035-00
Unavailable
34
NUT, SELF-LOCKING
90185-10012-00
Unavailable
35
BUSH
BAN-F376B-00-00
Unavailable
36
BRKT., STABILIZER
BG4-F386B-00-00
Unavailable
37
BOLT, FLANGE
95817-08014-00
Unavailable
