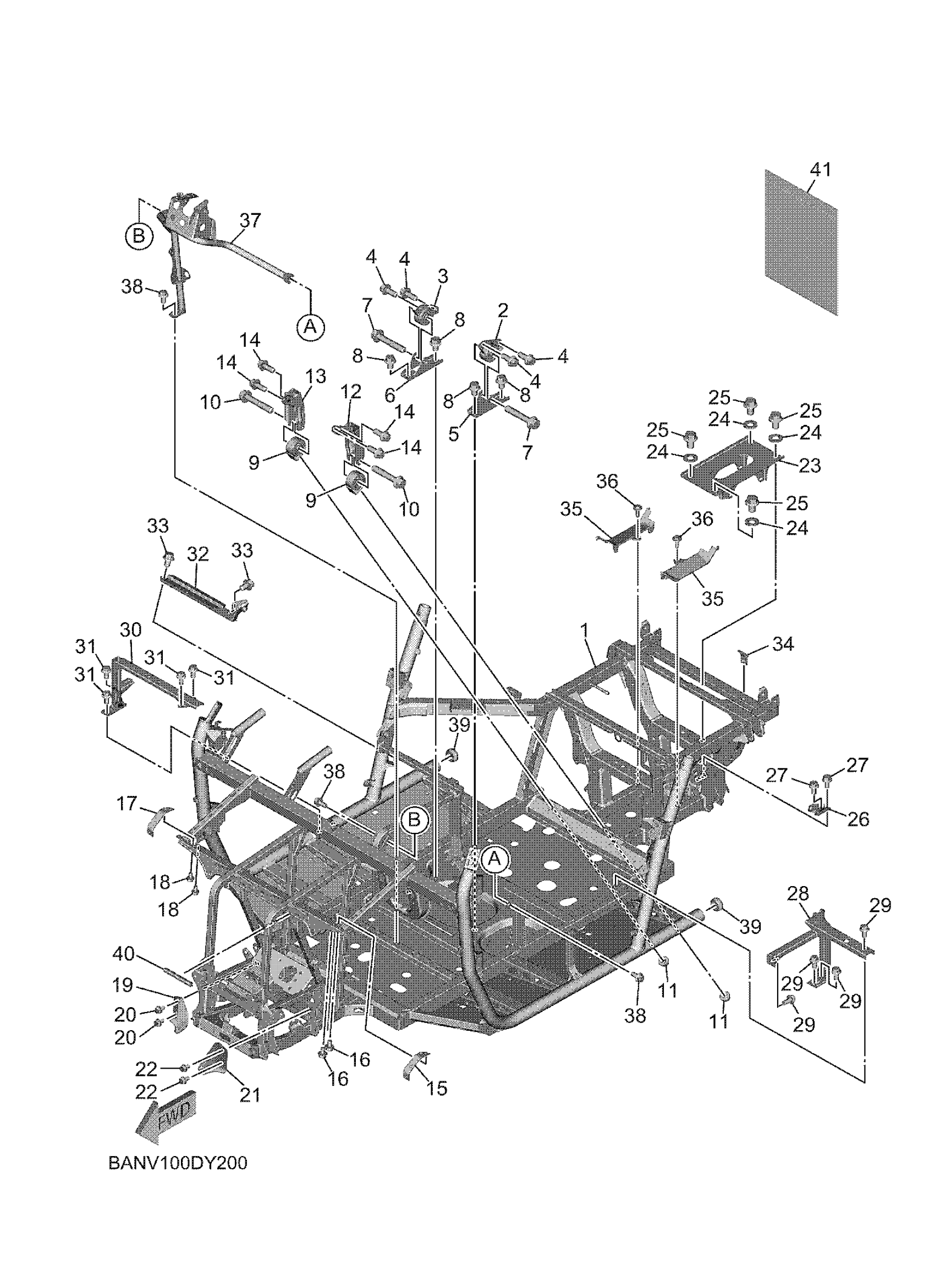

Yamaha YXE85WTZRD (WOLVERINE X2 XT R) BANV 2024 FRAME Diagram
#
1
FRAME COMP.
BAN-F1110-40-00
Unavailable
2
ENGINE BRACKET COMP.
BG4-21410-00-00
Unavailable
3
ENGINE BRACKET COMP. 2
BG4-21420-00-00
Unavailable
4
BOLT, FLANGE DEEP RECESS
95D32-10025-00
Unavailable
5
BRACKET 5
BG4-F161F-00-00
$12.49
6
BRACKET 3
BG4-F161A-00-00
$11.49
7
BOLT, FLANGE DEEP RECESS
95D32-12065-00
Unavailable
8
BOLT, FLANGE DEEP RECESS
95D32-10016-00
$1.06
9
BRACKET, ENGINE 1
B4J-21490-10-00
Unavailable
10
BOLT, FLANGE DEEP RECESS
95D32-12065-00
Unavailable
11
NUT
90179-10033-00
Unavailable
12
SUPPORT, ENGINE
B4J-F1283-03-00
$30.99
13
SUPT., ENGINE 2
B4J-F1284-03-00
$33.99
14
BOLT, FLANGE DEEP RECESS
95D37-10025-00
$1.96
15
BRACKET 1
BG4-F172K-00-00
$4.56
16
BOLT, FLANGE
95812-06010-00
Unavailable
17
BRACKET 1
BG4-F172K-00-00
$4.56
18
BOLT, FLANGE
95812-06010-00
Unavailable
19
BRACKET 2
BFN-F1239-00-00
Unavailable
20
BOLT, FLANGE
95812-12020-00
Unavailable
21
BRACKET
BFN-F1249-00-00
Unavailable
22
BOLT, FLANGE
95812-12020-00
Unavailable
23
STAY, SUPPORT 1
BG4-F831T-00-00
Unavailable
24
WASHER, PLATE
90201-12039-00
Unavailable
25
BOLT, FLANGE
90105-12121-00
Unavailable
26
BRKT., RR. AXLE
BAR-F1981-00-00
Unavailable
27
BOLT, FLANGE
95812-12020-00
Unavailable
28
LUG, SEAT RAIL LH.
BG4-F1143-10-00
Unavailable
29
BOLT, FLANGE
90105-08867-00
Unavailable
30
MEMBER, SEAT SUPPO
BG4-F255G-01-00
Unavailable
31
BOLT, FLANGE
90105-08867-00
Unavailable
32
BRACKET, LOCK 2
BG4-F287M-00-00
Unavailable
33
BOLT, FLANGE
95817-10020-00
Unavailable
34
STAY, MUFFLER 2
B8K-F1446-00-00
Unavailable
35
COVER 3
2MB-F198J-01-00
Unavailable
36
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
37
REINFORCEMENT, FRAME 1
BG4-F1986-01-00
Unavailable
38
BOLT, FLANGE
90105-08867-00
Unavailable
39
PLUG
B8K-F2417-00-00
Unavailable
40
MOLD, FUEL TANK
31A-24188-01-00
Unavailable
41
POUCH
1P0-F8186-01-00
Unavailable
