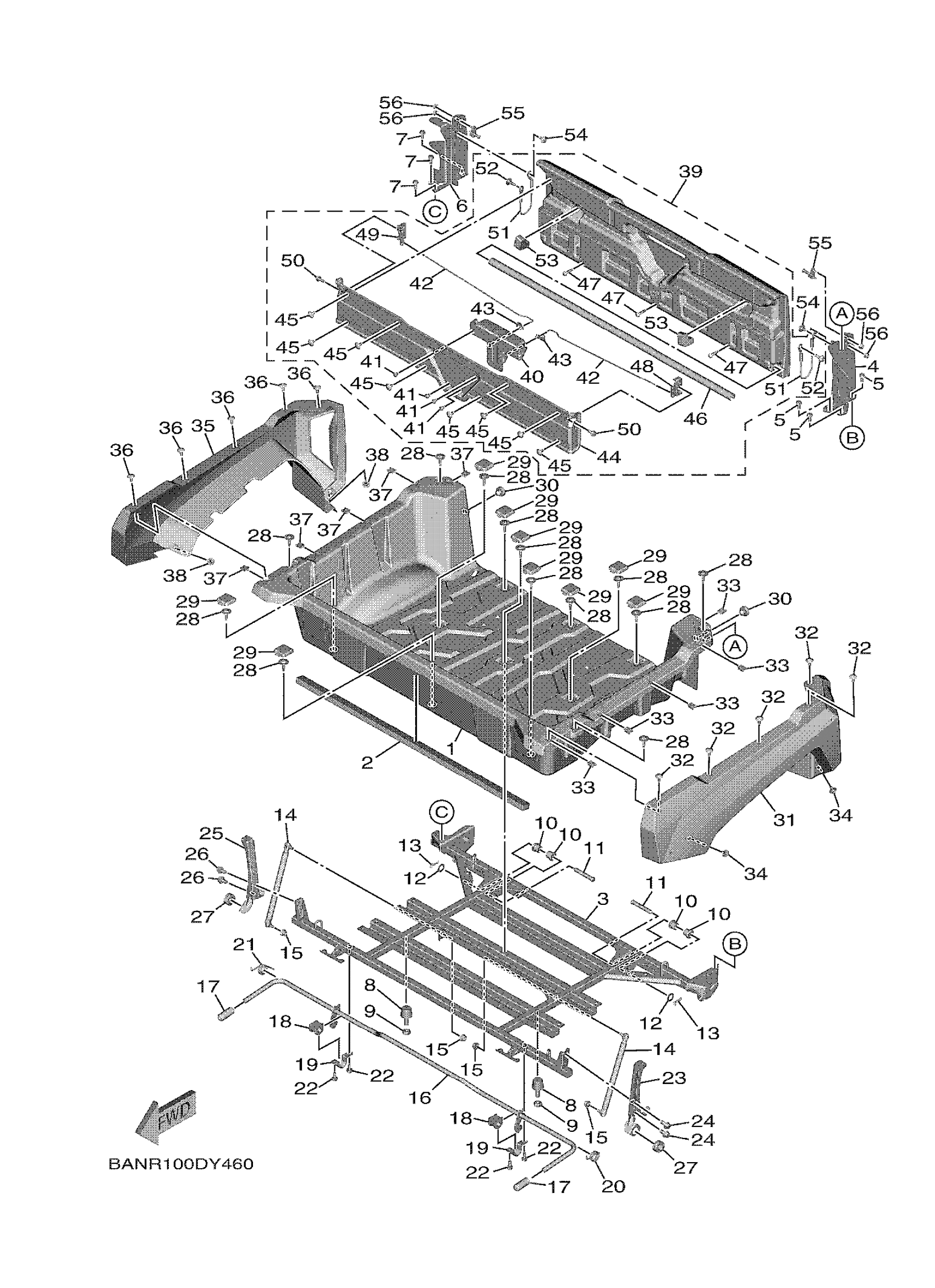

Yamaha YXE85WTZRD (WOLVERINE X2 XT R) BANV 2024 CARRIER Diagram

#

Description
Price

1

BOX

B8K-F1171-00-00

Unavailable

2

INSULATOR 3

B8K-F172S-00-00

$9.49

3

BOX, BASE

B8K-F845C-10-00

Unavailable

4

STAY, FRONT GUARD

B8K-F8413-11-00

$79.99

5

BOLT, FLANGE

95817-06016-00

$2.75

6

STAY, FRONT GUARD

B8K-F8414-11-00

Unavailable

7

BOLT, FLANGE

95817-06016-00

$2.75

8

HOLDER, DAMPER

B4M-F8375-00-00

$16.99

9

NUT

90170-10206-00

$5.60

10

BUSH 1

JW6-F2123-00-00

Unavailable

11

PIN, TAPER

1XD-F7827-00-00

Unavailable

12

WASHER PLATE 611441260000

90201-14212-00

$8.49

13

CLIP(3YF)

90468-16191-00

$8.49

14

DAMPER 1

B8K-F8415-10-00

$33.99

15

NUT, SELF-LOCKING

95602-08200-00

$3.20

16

LATCH ASSY

B8K-K7180-00-00

Unavailable

17

CAP, PROTECTOR END

B8K-K818M-00-00

Unavailable

18

GROMMET

90480-01819-00

Unavailable

19

BRKT., TRUNCK 1

B8K-F84AS-00-00

Unavailable

20

SPRING

B8K-F8489-00-00

Unavailable

21

SPRING 2

B8K-F848A-00-00

Unavailable

22

BOLT, FLANGE

95817-06016-00

$2.75

23

BRACKET 3

B8K-F8476-10-00

Unavailable

24

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

25

BRACKET 5

B8K-F8486-10-00

Unavailable

26

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

27

GROMMET

90480-25801-00

Unavailable

28

BOLT

90109-068A5-00

Unavailable

29

CAP

2MB-F143A-00-00

Unavailable

30

STOPPER, MAIN STAND

4N0-27114-00-00

Unavailable

31

PANEL, REAR FENDER

B8K-K8193-E0-00

Unavailable

32

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

33

NUT, SPRING

90183-062A1-00

Unavailable

34

BOLT

90109-06334-00

Unavailable

35

PANEL, REAR FENDER

B8K-K8194-E0-00

Unavailable

36

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

37

NUT, SPRING

90183-062A1-00

Unavailable

38

BOLT

90109-06334-00

Unavailable

39

REAR STORAGE LID C

BAN-K810N-10-00

Unavailable

40

HANDLE, LATCH

BG4-F389F-02-00

Unavailable

41

BOLT, BUTTON HEAD

92017-06010-00

Unavailable

42

ROD

B8K-F8478-00-00

Unavailable

43

CLIP, CABLE

BG4-F2805-01-00

Unavailable

44

COVER

B8K-F331G-00-00

Unavailable

45

BOLT,HEX. SOCKET BUTTON

90111-06181-00

Unavailable

46

HINGE 2

B8K-F463F-02-00

Unavailable

47

. SCREW

90149-06846-00

Unavailable

48

LOCK ASSY

BG4-F16A0-00-00

Unavailable

49

LOCK ASSY 2

BG4-F16B0-00-00

Unavailable

50

BOLT, FLANGE DEEP RECESS

95D32-06016-00

Unavailable

51

HOLDER, CABLE

B8K-K7195-00-00

Unavailable

52

BOLT

90109-06171-00

Unavailable

53

DAMPER 2

BG4-F8416-10-00

Unavailable

54

BOLT

90109-06202-00

Unavailable

55

BOLT, STUD

BG4-F4441-00-00

Unavailable

56

NUT, U FLANGE

95604-06200-00

Unavailable
