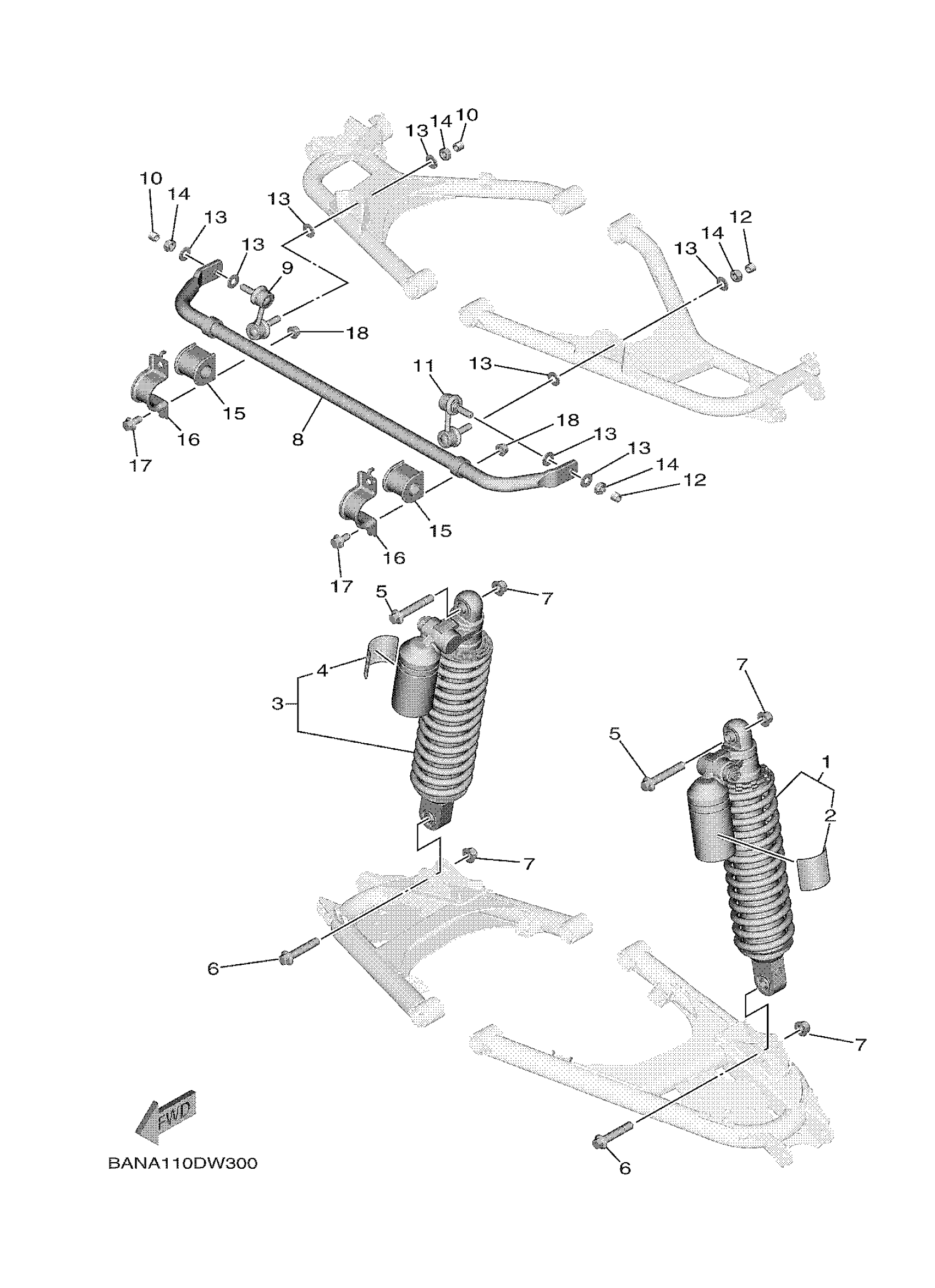

Yamaha YXE85WTZPT (WOLVERINE X2 XTR) BANR 2023 REAR SUSPENSION Diagram

RR. SHOCK ABSORBER ASSY. ,1

B8K-F220T-91-00

$574.99

LABEL, WARNING

B4J-F2259-00-00

$1.43

RR. SHOCK ABSORBER ASSY. ,2

B8K-F220U-91-00

$593.99

LABEL, WARNING

B4J-F2259-00-00

$1.43

BOLT, FLANGE

90105-12095-00

$9.49

BOLT, FLANGE

90105-12051-00

$9.49

NUT, SELF-LOCKING

90185-12002-00

$12.49

BAR, STABILIZER

BG4-G7491-02-00

$125.99

JOINT, STABILIZER 1

16B-2385L-10-00

$72.99

HOSE (L11)

90445-13029-00

Unavailable

JOINT, STABILIZER 2

16B-2385M-10-00

$72.99

HOSE (L11)

90445-13029-00

Unavailable

WASHER, PLATE

90201-10035-00

$4.19

NUT, SELF-LOCKING

90185-10012-00

$9.49

BUSH, STABILIZER F

BAR-F386G-01-00

Unavailable

COVER, STABILIZER

1XD-F386H-00-00

Unavailable

. BOLT, FLANGE

95812-10025-00

Unavailable

NUT, SELF-LOCKING

90185-10011-00

Unavailable
