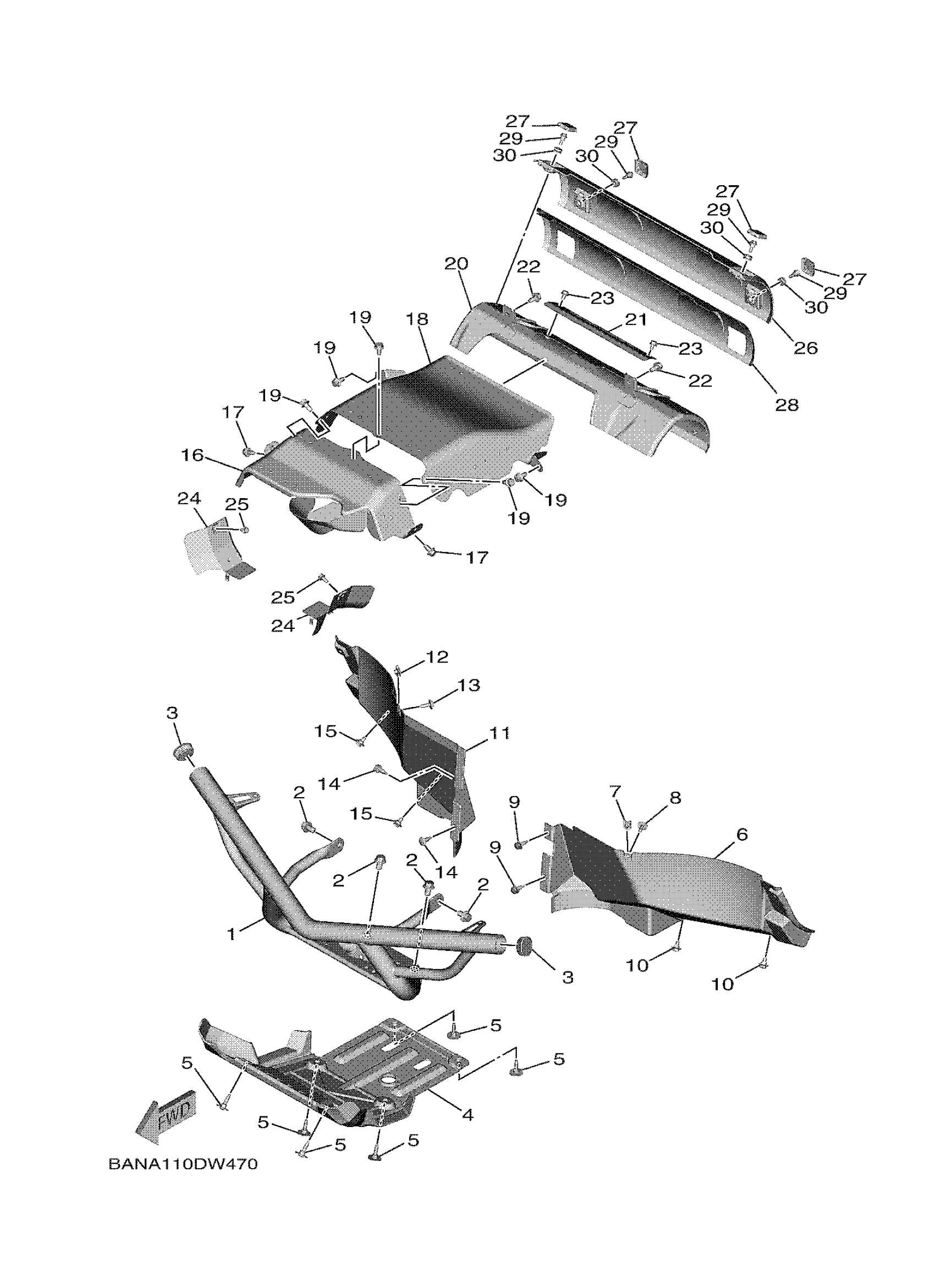

Yamaha YXE85WTZPT (WOLVERINE X2 XTR) BANR 2023 GUARD Diagram

#

Description
Price

1

BAR, CARRY FRONT

BAR-F845N-11-00

$217.09

2

BOLT, FLANGE

95812-10016-00

$7.70

3

PLUG (FRONT BUMPER)

5UG-F2417-00-00

$4.96

4

COVER, UNDER

2MB-F8385-00-00

$35.50

5

BOLT

90109-068A5-00

$5.67

6

GUARD 1

BG4-F2361-01-00

$15.26

7

NUT, SPRING

90183-062A1-00

$1.75

8

BOLT, WITH WASHER

90119-06226-00

$2.12

9

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

10

BOLT

90109-06202-00

$2.46

11

GUARD 2

BG4-F2362-01-00

$19.92

12

NUT, SPRING

90183-062A1-00

$1.75

13

BOLT, WITH WASHER

90119-06226-00

$2.12

14

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

15

BOLT

90109-06202-00

$2.46

16

INSULATOR, HEAT

BG4-F2898-02-00

Unavailable

17

BOLT, FLANGE

90105-08867-00

Unavailable

18

SHIELD, HEAT

BG4-F3892-02-00

Unavailable

19

BOLT, FLANGE

90105-08867-00

Unavailable

20

INSULATOR,MOUNTING

BG4-F2891-01-00

Unavailable

21

INSULATOR, MOUNTIN

BG4-F2894-00-00

Unavailable

22

BOLT, FLANGE

90105-08867-00

Unavailable

23

BLOT, FLANGE DEEP RECESS

95D32-06010-00

Unavailable

24

PROTECTOR 1

BAR-F2825-00-00

Unavailable

25

BOLT, FLANGE

90105-08867-00

Unavailable

26

PROTECTOR, MUFFLER

B8K-F194H-00-00

Unavailable

27

CAP

2MB-F143A-00-00

Unavailable

28

INSULATOR, HEAT

B8K-F2898-01-00

Unavailable

29

BOLT

90109-06262-00

Unavailable

30

GROMMET

90480-12025-00

Unavailable
