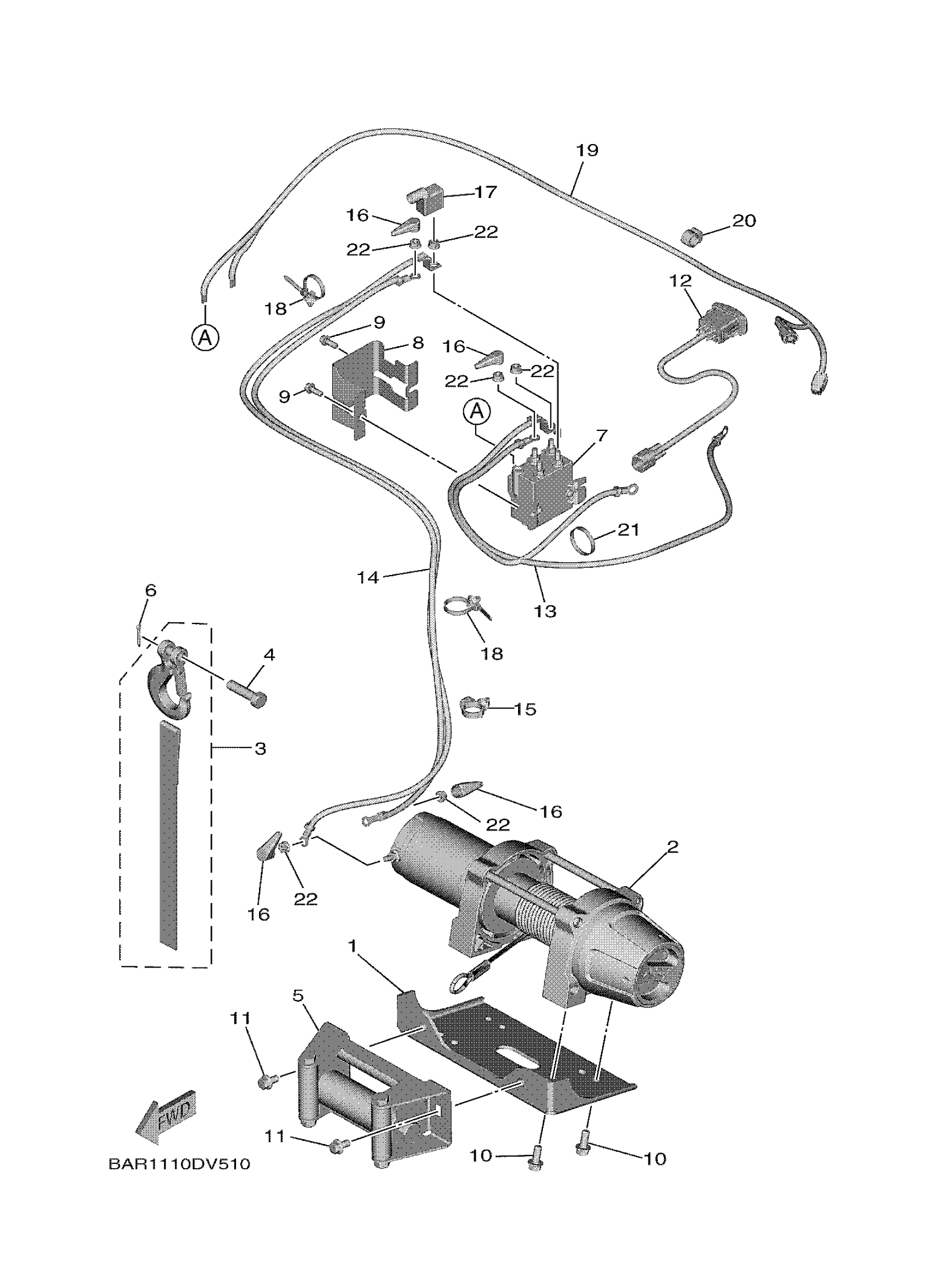

Yamaha YXE85WTZNB (WOLVERINE X2 EPS XTR) BANJ 2022 WINCH Diagram

#

Description
Price

1

PLATE

BAR-F7275-02-00

$16.09

2

WINCH

BAS-F845V-00-00

$605.55

3

HOOK

BAS-F8488-02-00

$35.64

4

PIN

BAS-F818A-00-00

$2.51

5

ROLLER

BAS-F178G-03-00

$74.88

6

PIN COTTER

91490-30025-00

Unavailable

7

CONTACTOR

BAS-H232W-00-00

$143.27

8

COVER, 7

BAR-F841V-00-00

$5.07

9

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$0.93

10

BOLT, FLANGE DEEP RECESS

95D32-08020-00

$0.43

11

BOLT, FLANGE

95812-10016-00

$7.70

12

SWITCH ASSY

BAS-H259E-02-00

$55.27

13

WIRE, INNER 1

BAR-F633K-02-00

$42.24

14

WIRE, INNER 2

BAR-F633L-03-00

$60.72

15

CLAMP

90464-20010-00

$2.01

16

PROTECTOR

BAS-F3472-00-00

Unavailable

17

COVER, LEAD WIRE

5LP-82119-00-00

Unavailable

18

CLAMP

1NS-F1338-00-00

Unavailable

19

WIRE HARNESS

BAR-H2105-00-00

Unavailable

20

CLAMP

90464-14010-00

Unavailable

21

CLAMP(JN6)

90464-31827-00

Unavailable

22

NUT, FLANGE

95702-06500-00

Unavailable
