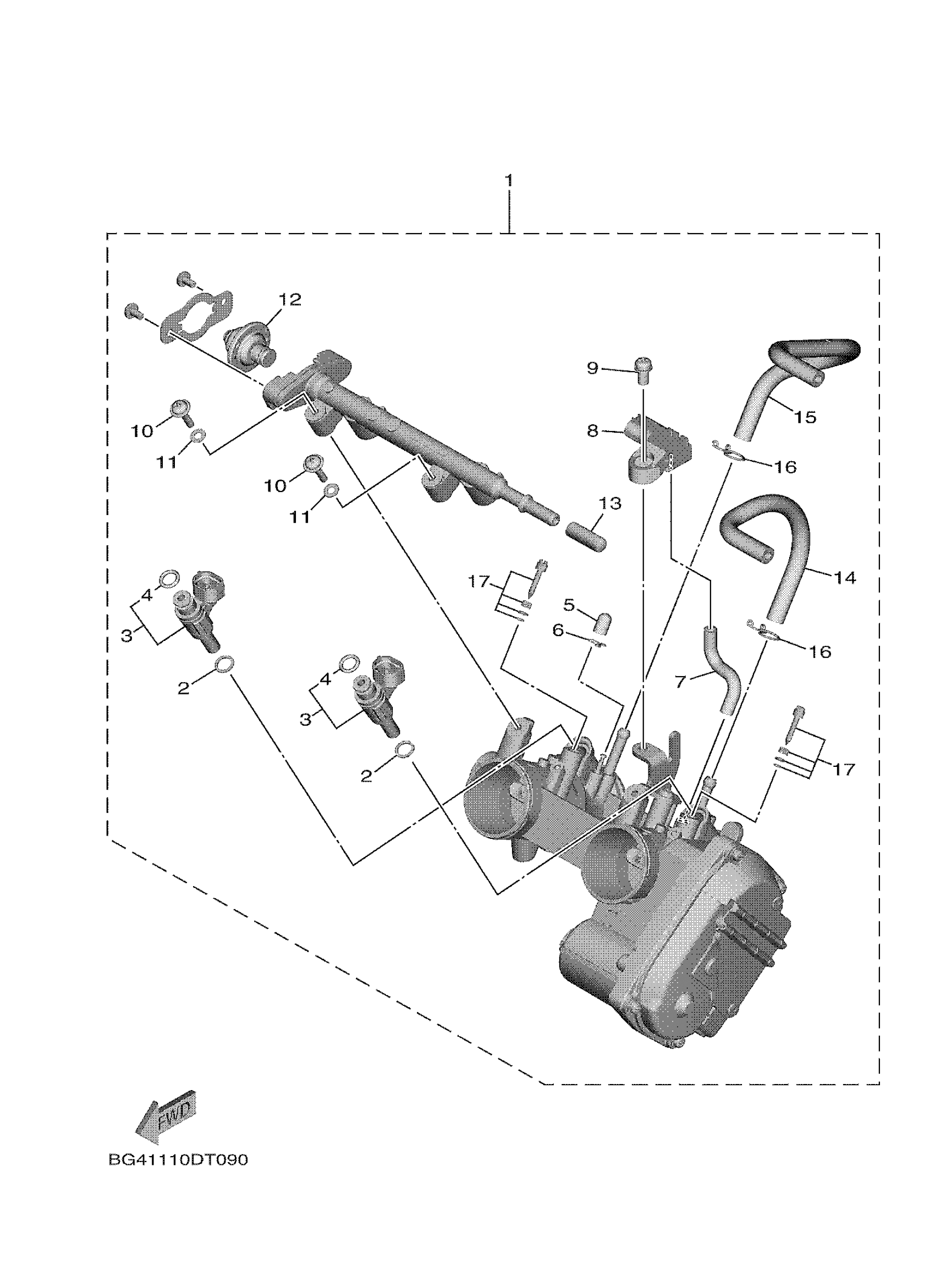

Yamaha YXE85WTZNB (WOLVERINE X2 EPS XTR) BANJ 2022 THROTTLE BODY ASSY 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

BG4-13750-20-00

Unavailable

2

. RUBBER, INJECTOR

68V-13766-10-00

Unavailable

3

INJECTOR

BG4-13761-11-00

$129.99

4

. O-RING

68V-1416A-00-00

Unavailable

5

CAP

895-14169-00-00

$5.49

6

CLIP, PIPE

8A7-14139-00-00

$8.99

7

HOSE

5PS-14987-00-00

$5.88

8

SENSOR, PRESSURE

1WS-82380-00-00

$193.99

9

SCREW

2C0-14216-00-00

$3.28

10

BOLT 1

14B-13573-00-00

$6.99

11

GASKET

363-14198-00-00

$10.99

12

DAMPER

5VK-13982-00-00

Unavailable

13

CAP

5UX-14118-00-00

$4.06

14

PIPE

BG4-14465-00-00

Unavailable

15

PIPE

BG4-14466-00-00

Unavailable

16

CLIP

90467-090A2-00

Unavailable

17

PILOT SCREW SET

2C0-14105-00-00

Unavailable
