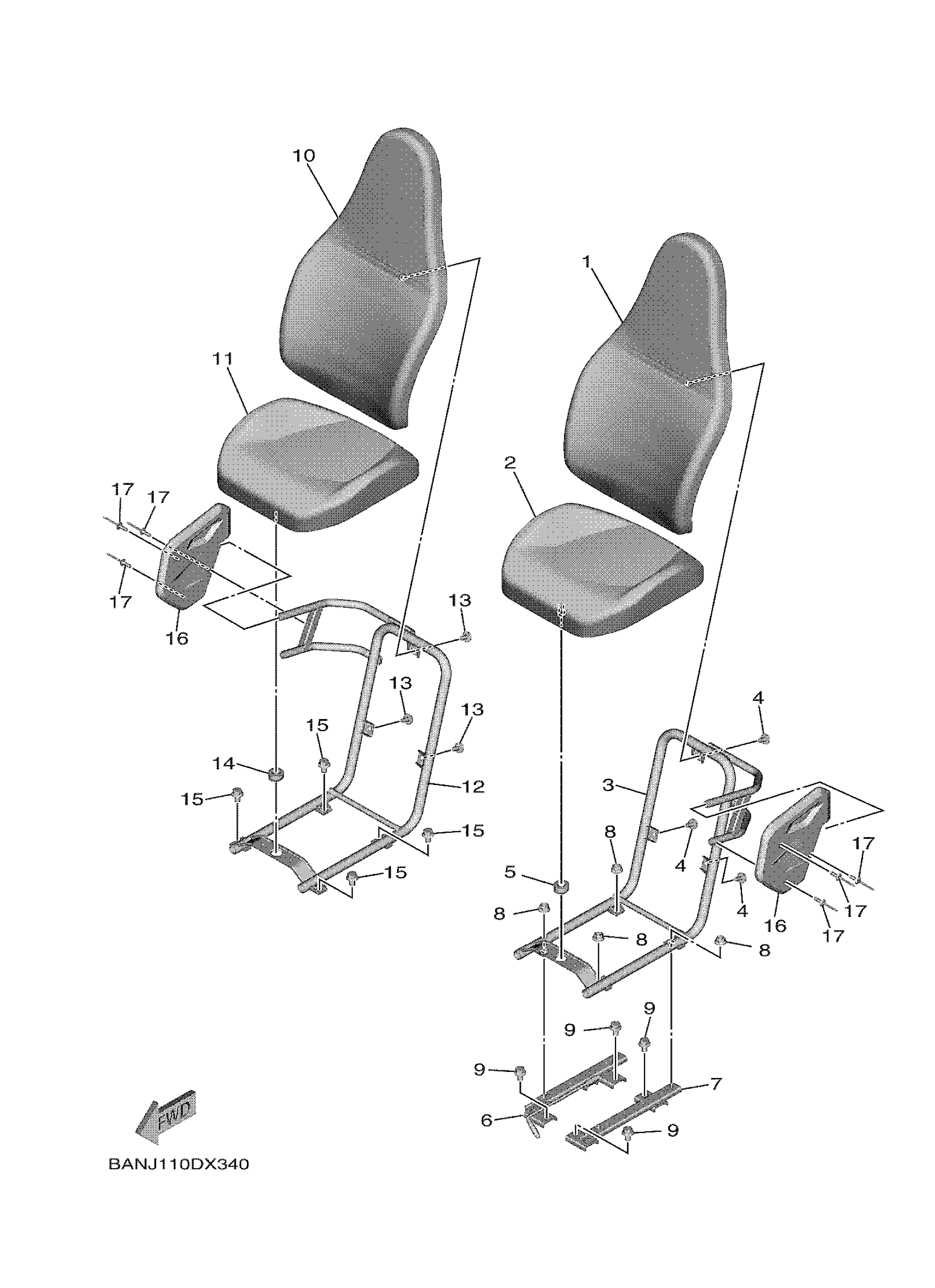

Yamaha YXE85WTZNB (WOLVERINE X2 EPS XTR) BANJ 2022 SEAT Diagram

#

Description
Price

1

SEAT BACK ASSY

BAR-F4790-30-00

Unavailable

2

SEAT ASSY 2

BAR-K8420-30-00

$520.99

3

FRAME, SEAT 1

B4J-F473C-02-00

$156.99

4

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$2.02

5

GROMMET

1XD-F4742-00-00

$3.69

6

ADJUSTER ASSY

B4J-F7270-01-00

$61.99

7

ADJUSTER ASSY

B4J-F7260-01-00

$46.99

8

NUT, SELF-LOCKING

95602-08200-00

$3.20

9

BOLT, FLANGE

95817-08012-00

$5.49

10

SEAT BACK ASSY

BAR-F4790-30-00

Unavailable

11

SEAT ASSY 2

BAR-K8420-30-00

$520.99

12

FRAME, SEAT 2

B4J-F473D-02-00

$156.99

13

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$2.02

14

GROMMET

1XD-F4742-00-00

$3.69

15

BOLT, FLANGE

95817-08012-00

$5.49

16

COVER

B4J-F117F-00-00

Unavailable

17

RIVET, BLIND(J50)

90267-49152-00

Unavailable
