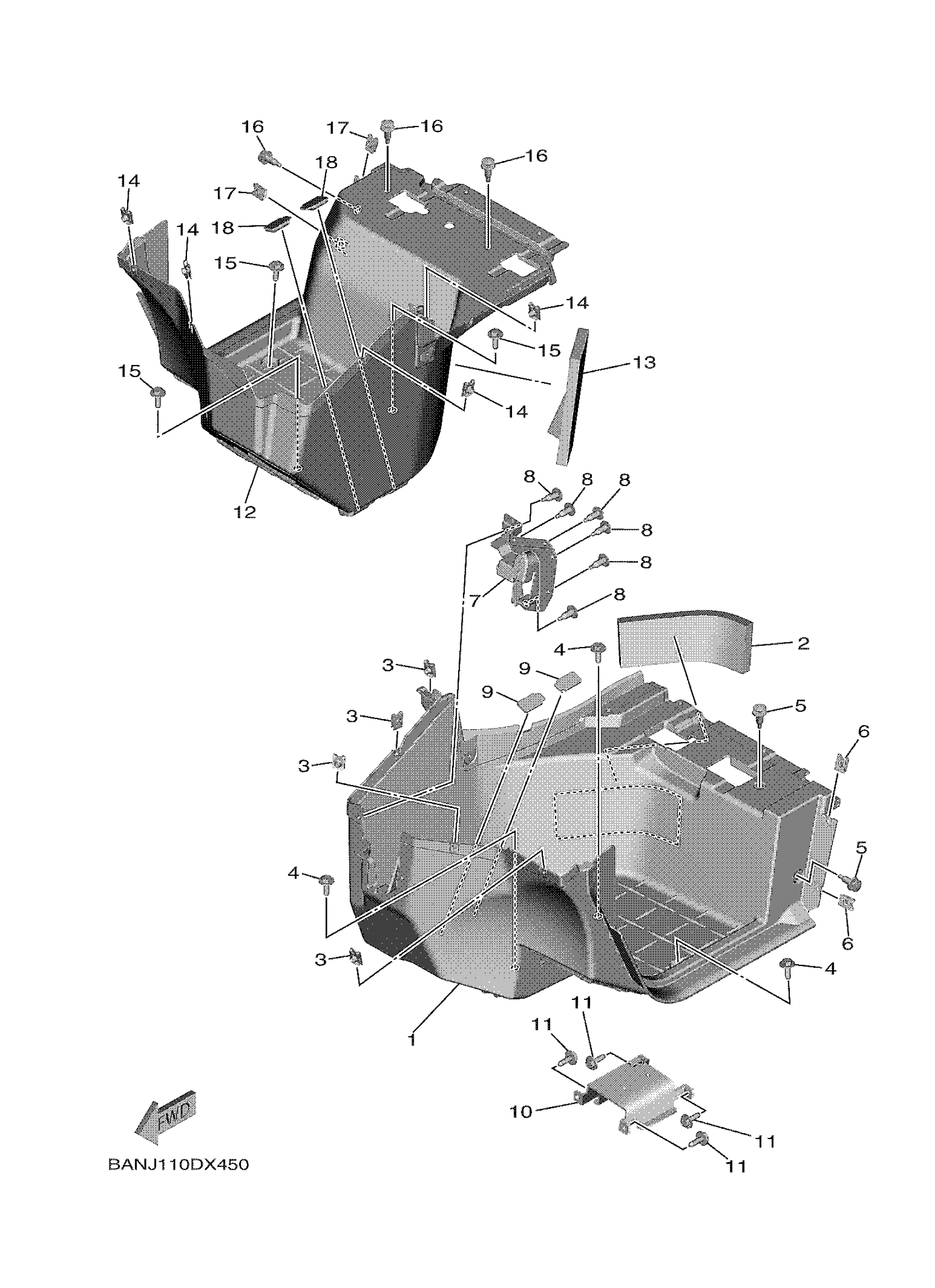

Yamaha YXE85WTHNH (WOLVERINE X2 EPS HUNTING) BANL 2022 STAND & FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

BG4-F7411-00-00

$120.15

2

INSULATOR, SIDE CO

B8K-F174T-00-00

$5.27

3

NUT, SPRING

90183-062A1-00

$1.75

4

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

5

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

6

NUT, SPRING

90183-062A1-00

$1.75

7

COVER, DUST

BG4-F7286-00-00

$8.14

8

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

9

PLUG, HOLE

BG4-F312G-00-00

Unavailable

10

BRACKET, FOOTREST

B4J-F7452-00-00

Unavailable

11

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

12

FOOTREST 2

BG4-F7421-01-00

$81.83

13

INSULATOR, SIDE CO

B8K-F174T-00-00

$5.27

14

NUT, SPRING

90183-062A1-00

$1.75

15

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

16

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

17

NUT, SPRING

90183-062A1-00

$1.75

18

PLUG, HOLE

BG4-F312G-00-00

Unavailable
