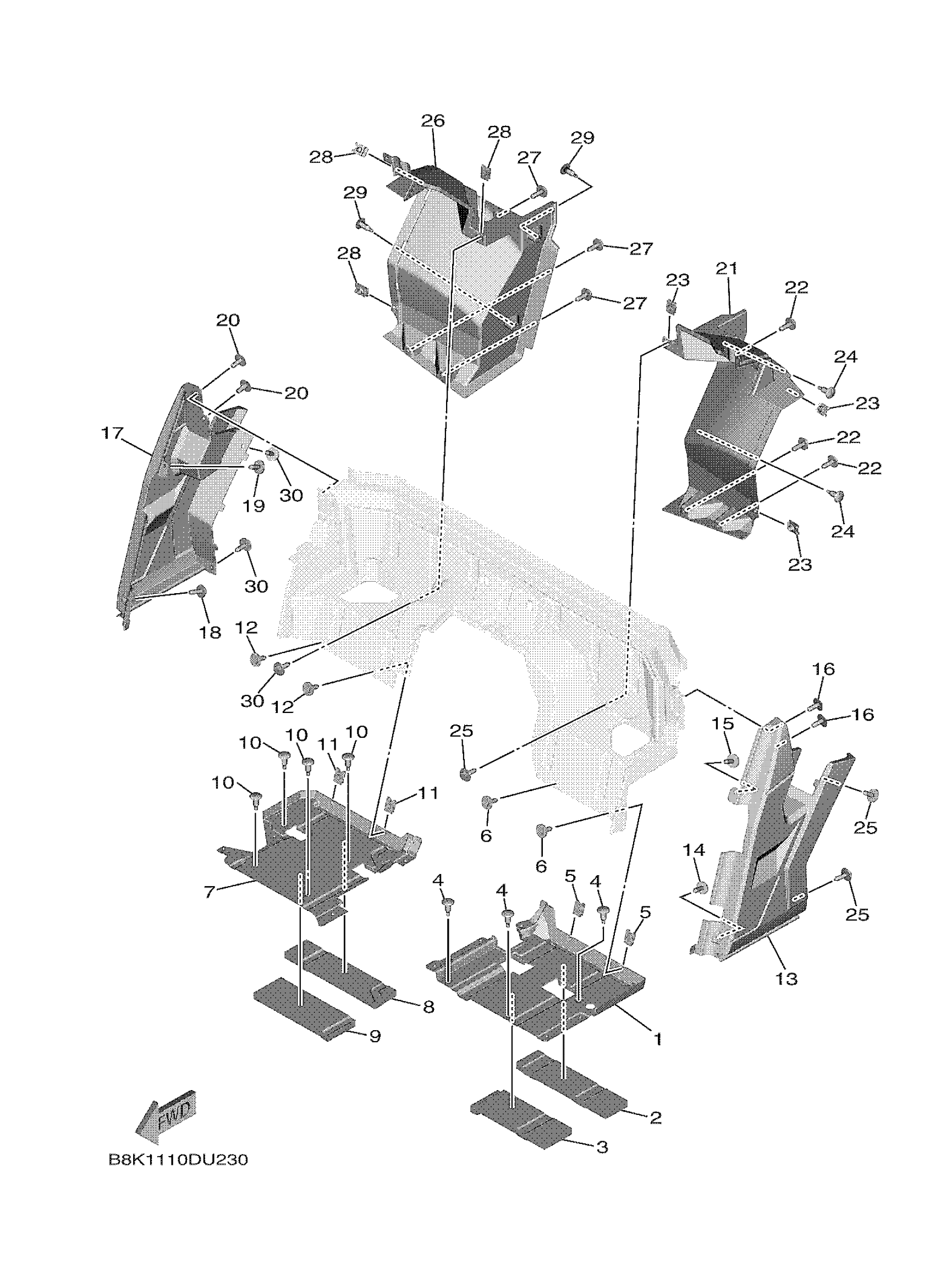

Yamaha YXE85WTHNH (WOLVERINE X2 EPS HUNTING) BANL 2022 SIDE COVER 2 Diagram

#

Description
Price

1

PLATE

B8K-F84A3-01-00

$18.59

2

INSULATOR 5

B8K-F174S-00-00

$4.67

3

INSULATOR, SIDE CO

B8K-F174T-00-00

$5.27

4

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

5

NUT, SPRING

90183-062A1-00

$1.75

6

BOLT, WITH WASHER

90119-06226-00

$2.12

7

PLATE, UNDER 2

B8K-F84A4-00-00

$6.40

8

INSULATOR 5

B8K-F174S-00-00

$4.67

9

INSULATOR, SIDE CO

B8K-F174T-00-00

$5.27

10

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

11

NUT, SPRING

90183-062A1-00

$1.75

12

BOLT, WITH WASHER

90119-06226-00

$2.12

13

COVER, SIDE 4

B8K-F1741-00-00

$24.20

14

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

15

BOLT, WITH WASHER

90119-06226-00

$2.12

16

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

17

COVER, SIDE 5

B8K-F171E-00-00

Unavailable

18

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

19

BOLT, WITH WASHER

90119-06226-00

$2.12

20

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

21

MUD GUARD 1

B8K-F2327-00-00

Unavailable

22

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

23

NUT, SPRING

90183-062A1-00

$1.75

24

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

25

BOLT, WITH WASHER

90119-06226-00

$2.12

26

MUD GUARD 2

B8K-F2328-00-00

Unavailable

27

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

28

NUT, SPRING

90183-062A1-00

$1.75

29

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

30

BOLT, WITH WASHER

90119-06226-00

$2.12
