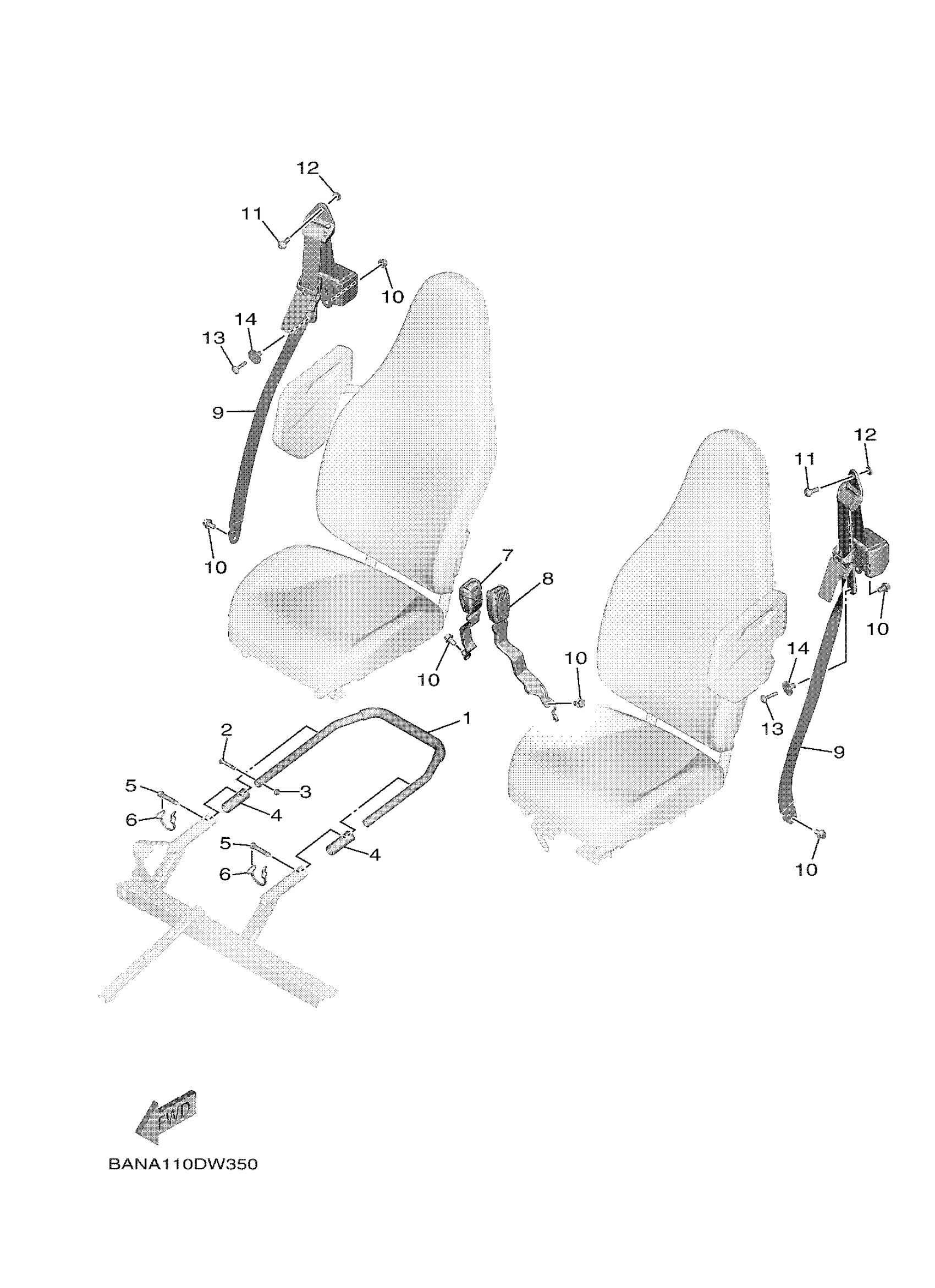

Yamaha YXE85WTHNH (WOLVERINE X2 EPS HUNTING) BANL 2022 SEAT 2 Diagram

#

Description
Price

1

ASSIST GRIP ASSY.,

2MB-F470J-00-00

$83.91

2

BOLT

90101-06824-00

$1.13

3

NUT, SELF-LOCKING

95617-06100-00

$2.17

4

BUSH, CAP

1XD-F467K-00-00

$2.21

5

PIN, LOCK

1XD-F5926-00-00

Unavailable

6

SNAP, PIN

1XD-F311F-00-00

$6.29

7

FR. BELT RECEIVER

B4J-F470R-01-00

$46.74

8

FR. BELT RECEIVER

B4J-F470R-12-00

$97.41

9

FR. SEAT BELT ASSY

B4J-F470L-02-00

$136.79

10

BOLT, FLANGE DEEP RECESS

95D32-12020-00

$2.11

11

BOLT,HEX. SOCKET B

90111-11800-00

$2.14

12

WASHER, PLATE (583)

90201-12593-00

$6.35

13

BOLT, HEXAGON SOCKET BUTTON

90111-06142-00

$9.27

14

COLLAR (17W)

90387-075H4-00

$6.02
