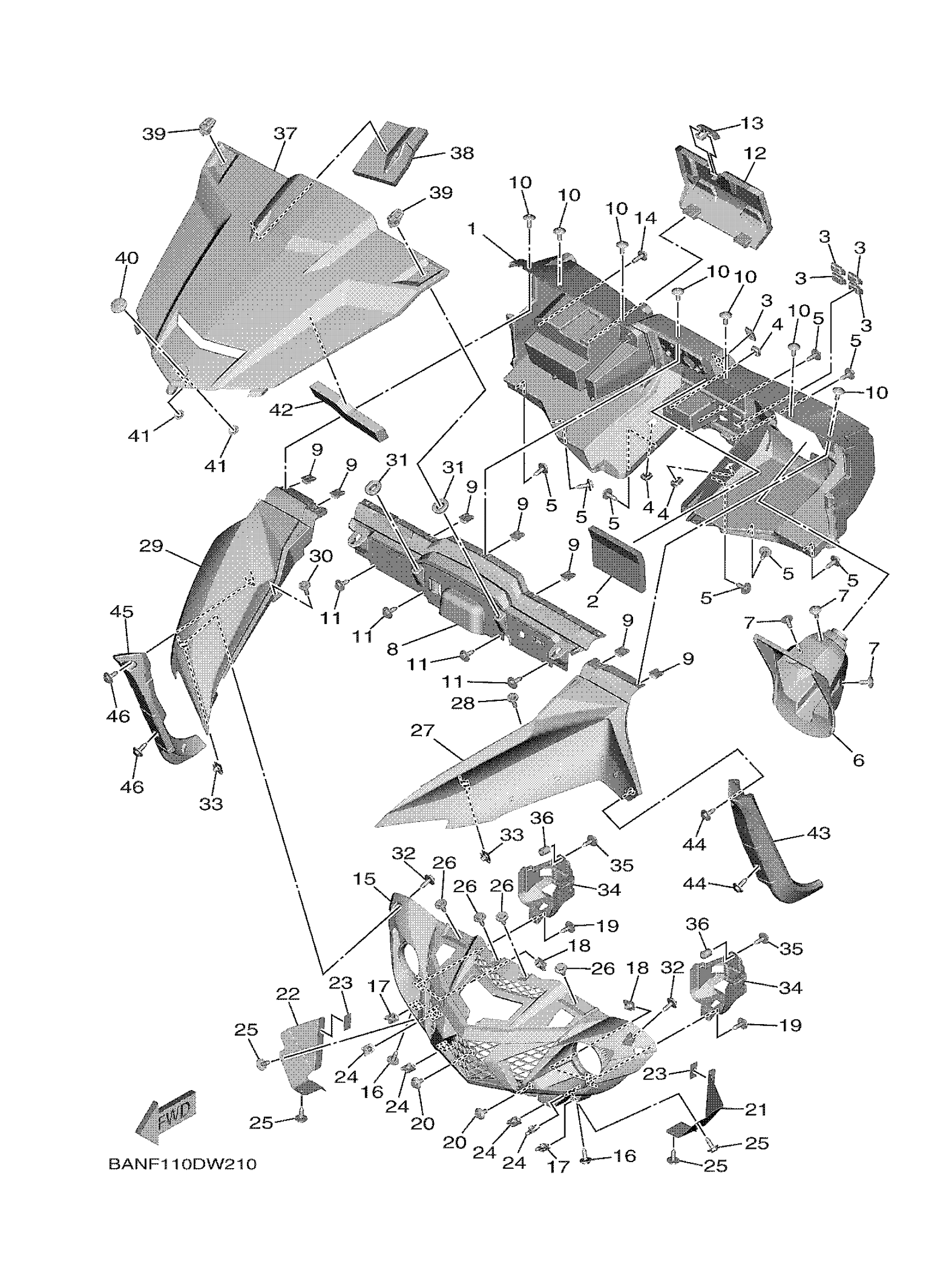

Yamaha YXE85WTHNH (WOLVERINE X2 EPS HUNTING) BANL 2022 FRONT FENDER Diagram

#

Description
Price

1

PANEL, INSTRUMENT

BAR-K7711-01-00

$209.99

2

INSULATOR 4

B8K-F173S-00-00

$8.49

3

PLUG, HOLE

BG4-F312G-00-00

$1.64

4

CAP 2

B4J-F3742-00-00

$1.43

5

BOLT, WITH WASHER

90119-06226-00

$8.49

6

COVER, STEERING

BG4-F3818-00-00

$18.99

7

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

8

COVER, FRONT

BG4-F2865-00-00

$33.99

9

NUT, SPRING

90183-062A1-00

$1.96

10

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

11

BOLT, WITH WASHER

90119-06226-00

$8.49

12

LID

BG4-F160F-00-00

$13.49

13

LOCK

F2X-U2875-00-00

Unavailable

14

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

15

GRILLE, FRONT

BG4-F8309-11-00

$85.99

16

BOLT, WITH WASHER

90119-06226-00

$8.49

17

NUT, SPRING

90183-062A1-00

$1.96

18

NUT, SPRING

90183-062A1-00

$1.96

19

BOLT, WITH WASHER

90119-06226-00

$8.49

20

BOLT

90109-06202-00

Unavailable

21

COVER 1

BG4-E246A-00-00

Unavailable

22

COVER 2

BG4-E246E-00-00

Unavailable

23

DAMPER

5UG-K7588-01-00

Unavailable

24

NUT, SPRING

90183-062A1-00

$1.96

25

BOLT, WITH WASHER

90119-06226-00

$8.49

26

BOLT, WITH WASHER

90119-06226-00

$8.49

27

FRONT FENDER COMP.

BG4-F1510-40-00

Unavailable

28

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

29

FRONT FENDER COMP.

BG4-F1501-40-00

Unavailable

30

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

31

GROMMET(4DN)

90480-01558-00

Unavailable

32

BOLT, WITH WASHER

90119-06226-00

$8.49

33

NUT, SPRING

90183-062A1-00

$1.96

34

COVER, HEADLIGHT

2UD-F838E-00-00

Unavailable

35

BOLT, WITH WASHER

90119-06226-00

$8.49

36

HOSE

90445-08029-00

Unavailable

37

HOOD 1

BG4-F1982-60-00

Unavailable

38

INSULATOR 4

B8K-F173S-00-00

$8.49

39

LEVER, LOCK

1XD-2175K-10-00

Unavailable

40

TUNING FORK MARK

1XD-F175B-01-00

Unavailable

41

NUT, SPRING

90183-06071-00

Unavailable

42

DAMPER, PLATE

90520-50004-00

Unavailable

43

EXT,FRONT FENDER 1

BG4-K8185-01-00

Unavailable

44

BOLT, WITH WASHER

90119-06226-00

$8.49

45

EXT,FRONT FENDER 2

BG4-K8186-01-00

Unavailable

46

BOLT, WITH WASHER

90119-06226-00

$8.49
