Description

Price

1

BRACKET,PEDL SUPRT

1XD-F2548-10-00

$61.99

2

BOLT, FLANGE

95812-08020-00

$2.80

3

ACCEL PEDAL ASSY

B4J-F7801-00-00

$28.99

4

WASHER, PLATE

90201-15018-00

$7.49

5

CIRCLIP (122)

93430-12008-00

$8.49

6

SPRING, TENSION

90506-23023-00

$5.49

7

PEDAL, BRAKE

B4J-F7200-00-00

Unavailable

8

WASHER, PLATE

90201-15018-00

$7.49

9

CIRCLIP (122)

93430-12008-00

$8.49

10

SPRING, TENSION (2X4)

90506-20192-00

$7.49

11

CABLE, THROTTLE 1

BG4-26311-02-00

Unavailable

12

MUD GUARD COMP.

B4J-F1620-00-00

$13.49

13

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

14

GUSSET 3

BAR-F112A-00-00

$14.99

15

BOLT, WITH WASHER

90119-06226-00

$8.49

16

PARKING LEVER ASSY

BDW-F5690-00-00

Unavailable

17

. SWITCH COMP

5UG-H251S-00-00

Unavailable

18

BOLT, FLANGE

95817-06012-00

Unavailable

19

WIRE, BRAKE 1

BAR-26341-01-00

Unavailable

20

CLAMP(JN6)

90464-40825-00

Unavailable

21

CLAMP

90464-48800-00

Unavailable

22

MOLD, FUEL TANK

31A-24188-01-00

Unavailable

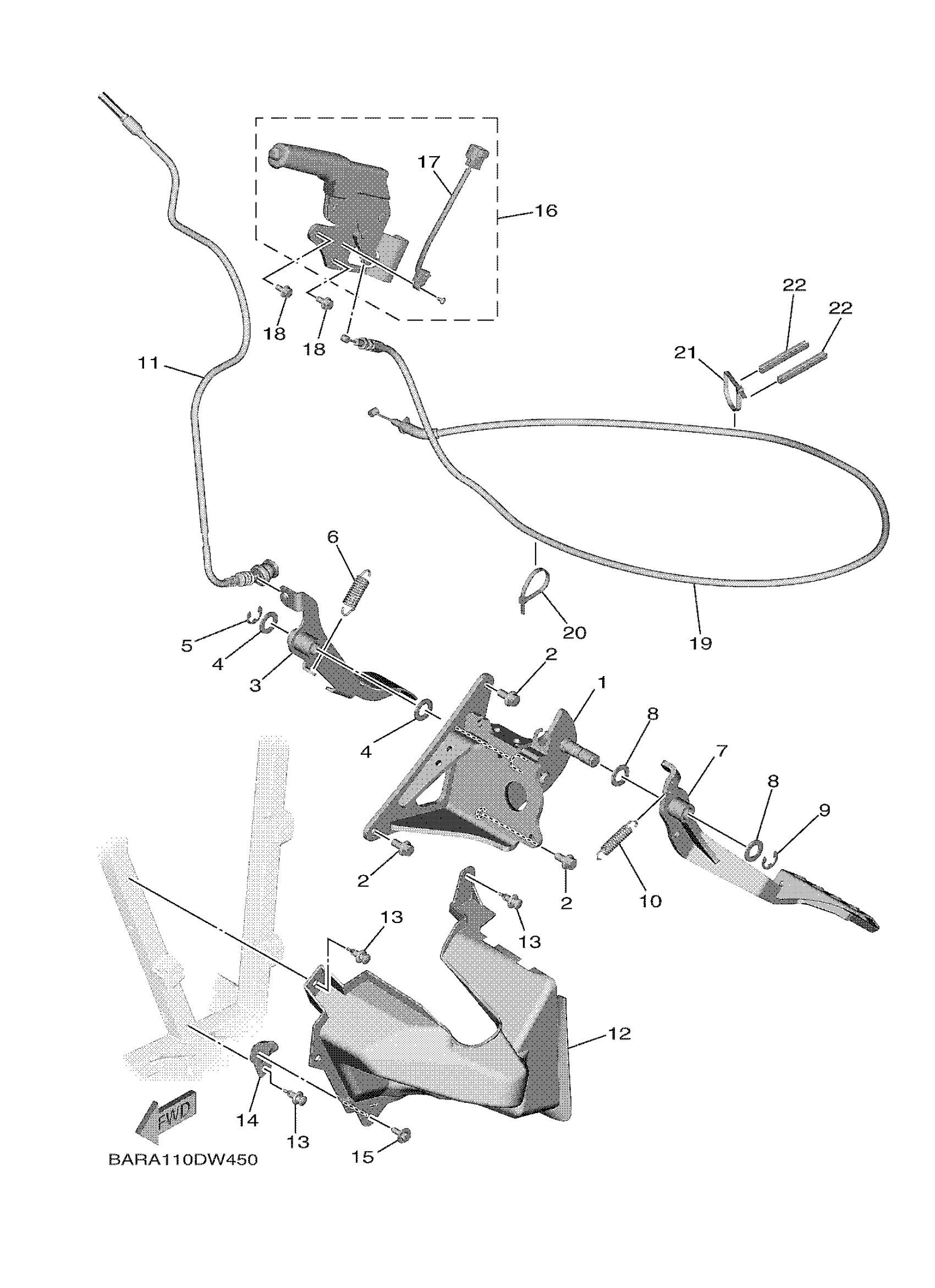

Yamaha YXE85WTANS (WOLVERINE X2 EPS R SPEC) BANN 2022 PEDAL WIRE Diagram

BRACKET,PEDL SUPRT

BOLT, FLANGE

ACCEL PEDAL ASSY

WASHER, PLATE

CIRCLIP (122)

SPRING, TENSION

PEDAL, BRAKE

WASHER, PLATE

CIRCLIP (122)

SPRING, TENSION (2X4)

CABLE, THROTTLE 1

MUD GUARD COMP.

RIVET,SPEC'L SHAPE

GUSSET 3

BOLT, WITH WASHER

PARKING LEVER ASSY

. SWITCH COMP

BOLT, FLANGE

WIRE, BRAKE 1

CLAMP(JN6)

CLAMP

MOLD, FUEL TANK
