- YXE85WTANS (WOLVERINE X2 EPS R SPEC) BANN 2022
FRONT FENDER

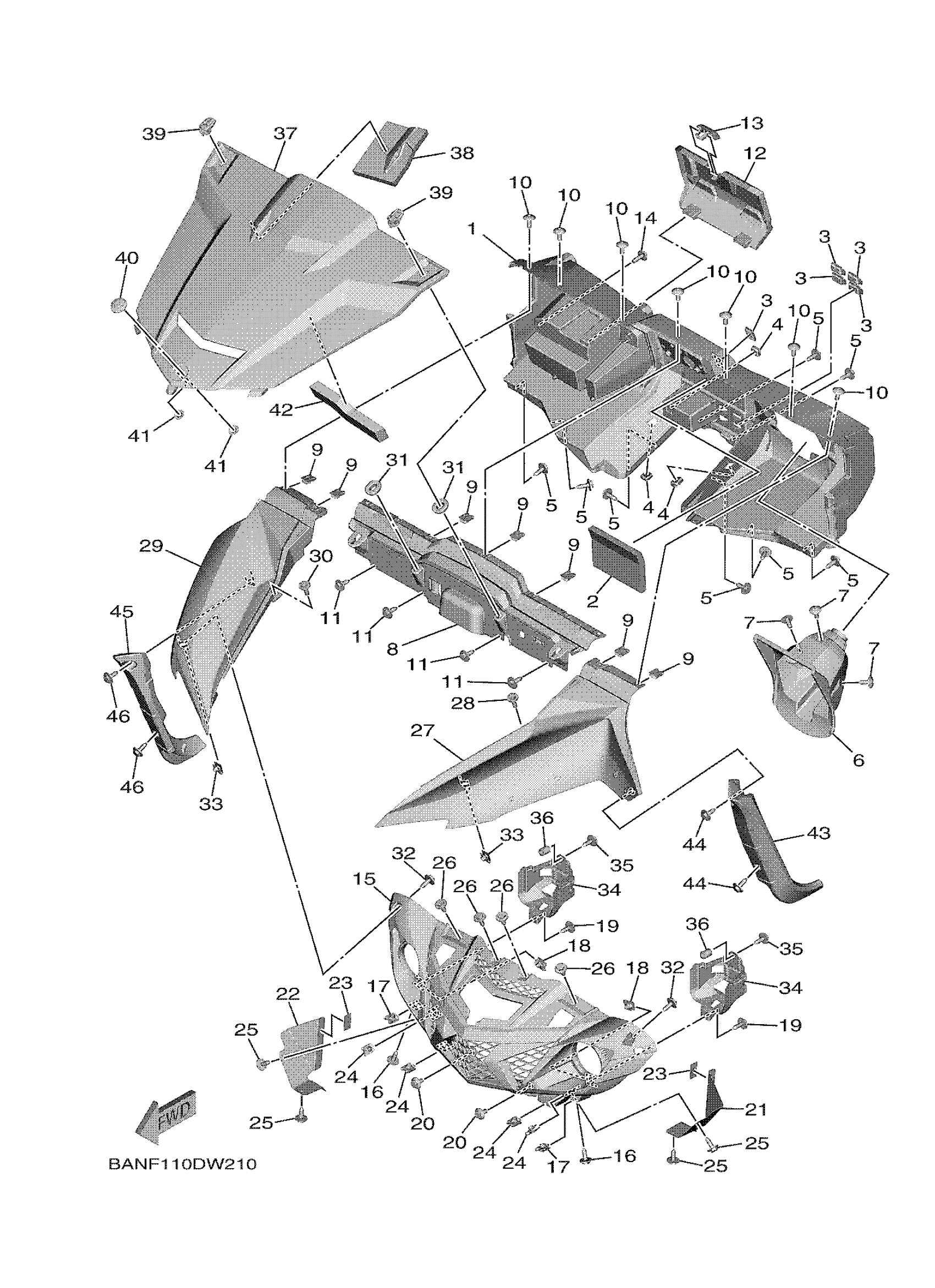

Yamaha YXE85WTANS (WOLVERINE X2 EPS R SPEC) BANN 2022 FRONT FENDER Diagram
#
1
PANEL, INSTRUMENT
BAR-K7711-01-00
$209.99
2
INSULATOR 4
B8K-F173S-00-00
$8.49
3
PLUG, HOLE
BG4-F312G-00-00
$1.64
4
CAP 2
B4J-F3742-00-00
$1.43
5
BOLT, WITH WASHER
90119-06226-00
$8.49
6
COVER, STEERING
BG4-F3818-00-00
$18.99
7
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
8
COVER, FRONT
BG4-F2865-00-00
$33.99
9
NUT, SPRING
90183-062A1-00
$1.96
10
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
11
BOLT, WITH WASHER
90119-06226-00
$8.49
12
LID
BG4-F160F-00-00
$13.49
13
LOCK
F2X-U2875-00-00
Unavailable
14
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
15
GRILLE, FRONT
BG4-F8309-11-00
$85.99
16
BOLT, WITH WASHER
90119-06226-00
$8.49
17
NUT, SPRING
90183-062A1-00
$1.96
18
NUT, SPRING
90183-062A1-00
$1.96
19
BOLT, WITH WASHER
90119-06226-00
$8.49
20
BOLT
90109-06202-00
Unavailable
21
COVER 1
BG4-E246A-00-00
Unavailable
22
COVER 2
BG4-E246E-00-00
Unavailable
23
DAMPER
5UG-K7588-01-00
Unavailable
24
NUT, SPRING
90183-062A1-00
$1.96
25
BOLT, WITH WASHER
90119-06226-00
$8.49
26
BOLT, WITH WASHER
90119-06226-00
$8.49
27
FENDER, FRONT
BG4-F1511-60-00
Unavailable
28
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
29
FENDER, FRONT 2
BG4-F1556-60-00
Unavailable
30
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
31
GROMMET(4DN)
90480-01558-00
Unavailable
32
BOLT, WITH WASHER
90119-06226-00
$8.49
33
NUT, SPRING
90183-062A1-00
$1.96
34
COVER, HEADLIGHT
2UD-F838E-00-00
Unavailable
35
BOLT, WITH WASHER
90119-06226-00
$8.49
36
HOSE
90445-08029-00
Unavailable
37
HOOD 1
BG4-F1982-50-00
Unavailable
38
INSULATOR 4
B8K-F173S-00-00
$8.49
39
LEVER, LOCK
1XD-2175K-10-00
Unavailable
40
TUNING FORK MARK
1XD-F175B-01-00
Unavailable
41
NUT, SPRING
90183-06071-00
Unavailable
42
DAMPER, PLATE
90520-50004-00
Unavailable
43
EXT,FRONT FENDER 1
BG4-K8185-01-00
Unavailable
44
BOLT, WITH WASHER
90119-06226-00
$8.49
45
EXT,FRONT FENDER 2
BG4-K8186-01-00
Unavailable
46
BOLT, WITH WASHER
90119-06226-00
$8.49
