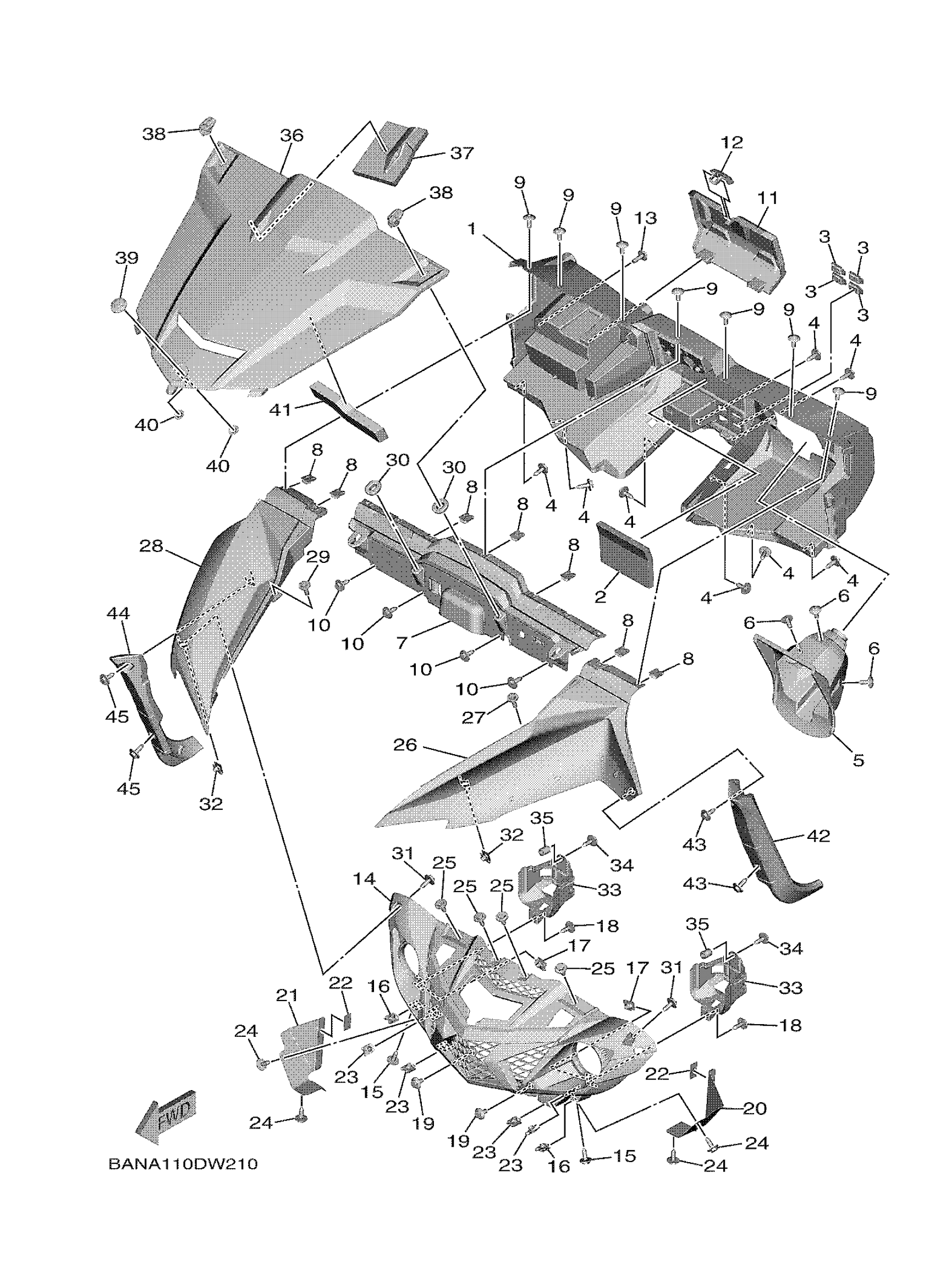

Yamaha YXE85WPZMG (WOLVERINE X2 EPS SE) BANA 2021 FRONT FENDER Diagram

#

Description
Price

1

PANEL, INSTRUMENT

BAR-K7711-01-00

$170.83

2

INSULATOR 4

B8K-F173S-00-00

$6.36

3

PLUG, HOLE

BG4-F312G-00-00

Unavailable

4

BOLT, WITH WASHER

90119-06226-00

$2.12

5

COVER, STEERING

BG4-F3818-00-00

$16.95

6

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

7

COVER, FRONT

BG4-F2865-00-00

$34.67

8

NUT, SPRING

90183-062A1-00

$1.75

9

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

10

BOLT, WITH WASHER

90119-06226-00

$2.12

11

LID

BG4-F160F-00-00

$11.03

12

LOCK

F2X-U2875-00-00

$2.57

13

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

14

GRILLE, FRONT

BG4-F8309-11-00

$67.85

15

BOLT, WITH WASHER

90119-06226-00

$2.12

16

NUT, SPRING

90183-062A1-00

$1.75

17

NUT, SPRING

90183-062A1-00

$1.75

18

BOLT, WITH WASHER

90119-06226-00

$2.12

19

BOLT

90109-06202-00

Unavailable

20

COVER 1

BG4-E246A-00-00

Unavailable

21

COVER 2

BG4-E246E-00-00

Unavailable

22

DAMPER

5UG-K7588-01-00

Unavailable

23

NUT, SPRING

90183-062A1-00

$1.75

24

BOLT, WITH WASHER

90119-06226-00

$2.12

25

BOLT, WITH WASHER

90119-06226-00

$2.12

26

FRONT FENDER COMP.

BG4-F1510-80-00

Unavailable

27

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

28

FRONT FENDER COMP.

BG4-F1501-80-00

Unavailable

29

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

30

GROMMET(4DN)

90480-01558-00

Unavailable

31

BOLT, WITH WASHER

90119-06226-00

$2.12

32

NUT, SPRING

90183-062A1-00

$1.75

33

COVER, HEADLIGHT

2UD-F838E-00-00

Unavailable

34

BOLT, WITH WASHER

90119-06226-00

$2.12

35

HOSE

90445-08029-00

$3.07

36

HOOD ASSY 3

BG4-F197A-21-00

Unavailable

37

INSULATOR 4

B8K-F173S-00-00

$6.36

38

LEVER, LOCK

1XD-2175K-10-00

Unavailable

39

TUNING FORK MARK

1XD-F175B-01-00

Unavailable

40

NUT, SPRING

90183-06071-00

$0.50

41

DAMPER, PLATE

90520-50004-00

Unavailable

42

EXT,FRONT FENDER 1

BG4-K8185-01-00

Unavailable

43

BOLT, WITH WASHER

90119-06226-00

$2.12

44

EXT,FRONT FENDER 2

BG4-K8186-01-00

Unavailable

45

BOLT, WITH WASHER

90119-06226-00

$2.12
