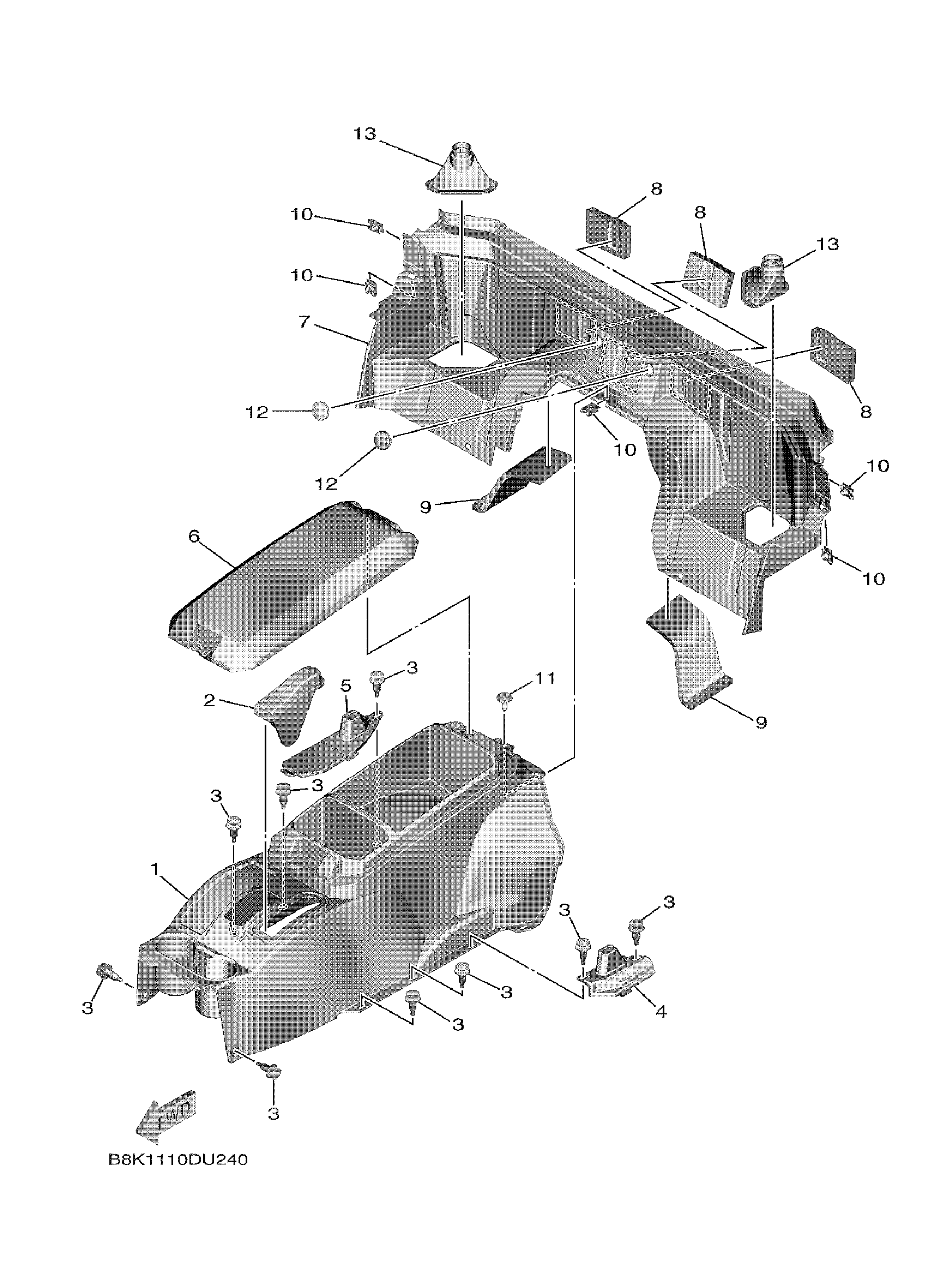

Yamaha YXE85WPSKB (WOLVERINE X2 R-SPEC EPS SE) B8K1 2019 SIDE COVER 3 Diagram

#

Description
Price

1

COVER, TOP

BG4-F170F-00-00

$223.58

2

COVER, HANDLE LEVE

1XD-F6372-00-00

$7.56

3

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

4

PLATE, RUBBER 4

BG4-F8499-00-00

$5.48

5

PLATE, RUBBER 3

BG4-F8485-00-00

$10.91

6

LID 2

2MB-F177J-10-00

Unavailable

7

COVER,REAR PURPBLU

B8K-F2866-01-00

$60.02

8

INSULATOR, SIDE CO

B8K-F174A-00-00

$2.53

9

INSULATOR, SIDE CO

B8K-F174T-00-00

$5.27

10

NUT, SPRING

90183-060A6-00

$3.90

11

BOLT, WITH WASHER

90119-06226-00

$2.12

12

PLUG

90338-18266-00

$6.52

13

PLATE, RUBBER 5

B8K-F845J-01-00

$33.68
