- YXE85WPSKB (WOLVERINE X2 R-SPEC EPS SE) B8K1 2019
FRONT SUSPENSION WHEEL

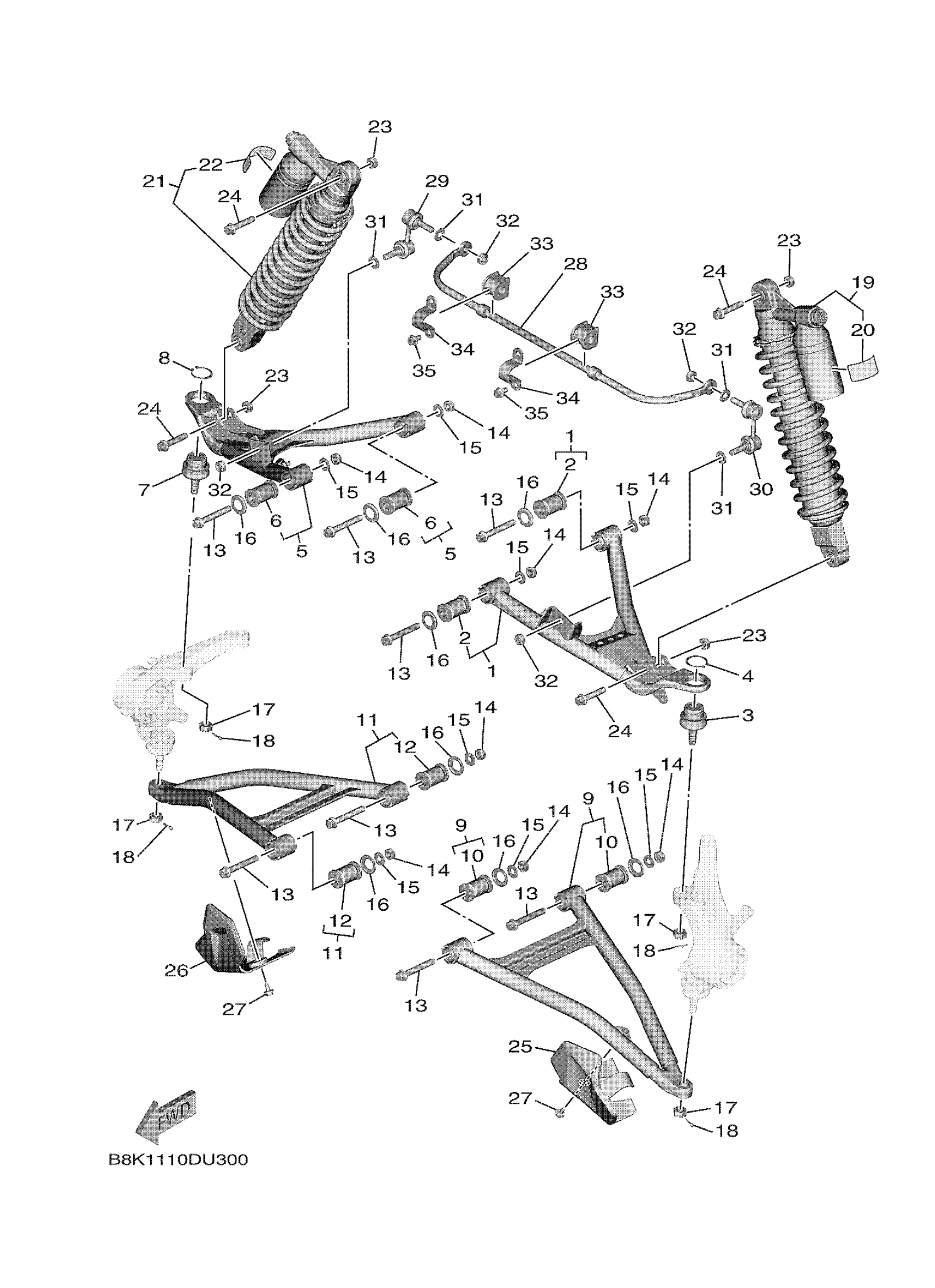

Yamaha YXE85WPSKB (WOLVERINE X2 R-SPEC EPS SE) B8K1 2019 FRONT SUSPENSION WHEEL Diagram
#
1
FRT. UPPER ARM (L)
BG4-F3540-01-00
$87.99
2
BUSH
1HP-F3526-00-00
$22.99
3
BALL JOINT 2
1XD-23579-00-00
$76.99
4
CIRCLIP
93410-32075-00
$9.49
5
FRT. UPPER ARM (R)
BG4-F3550-01-00
$89.99
6
BUSH
1HP-F3526-00-00
$22.99
7
BALL JOINT 2
1XD-23579-00-00
$76.99
8
CIRCLIP
93410-32075-00
$9.49
9
FRT LWR ARM CMPL L
BG4-F3570-01-00
$81.99
10
BUSH
1HP-F3526-00-00
$22.99
11
FRT LWR ARM CMPL R
BG4-F3580-01-00
$81.99
12
BUSH
1HP-F3526-00-00
$22.99
13
BOLT, FLANGE
90105-10267-00
$9.49
14
NUT, SELF-LOCKING
90185-10012-00
$9.49
15
WASHER, PLATE
90201-10035-00
$4.19
16
COVER, THRUST 1
BG4-F3517-00-00
Unavailable
17
NUT, CASTLE
90171-12001-00
Unavailable
18
PIN, COTTER
91490-25020-00
Unavailable
19
FR. SHOCK ABSORBER
B8K-F350A-10-00
Unavailable
20
LABEL,WARNING
1HP-F2259-01-00
Unavailable
21
FR. SHOCK ABSORBER
B8K-F350B-10-00
Unavailable
22
LABEL,WARNING
1HP-F2259-01-00
Unavailable
23
NUT, SELF-LOCKING
90185-10012-00
$9.49
24
BOLT, FLANGE
90105-10283-00
Unavailable
25
COVER, UNDER 1
2MB-F3123-01-00
Unavailable
26
COVER, UNDER 2
2MB-F3133-01-00
Unavailable
27
BOLT, WITH WASHER
90119-06152-00
Unavailable
28
BAR, STABILIZER FR
B8K-F386E-01-00
Unavailable
29
JOINT, STABILIZER 1
16B-2385L-10-00
Unavailable
30
JOINT, STABILIZER 2
16B-2385M-10-00
Unavailable
31
WASHER, PLATE
90201-10035-00
$4.19
32
NUT, SELF-LOCKING
90185-10012-00
$9.49
33
GROMMET
90480-01820-00
Unavailable
34
BRKT., STABILIZER
BG4-F386B-00-00
Unavailable
35
BOLT, FLANGE
95817-08014-00
Unavailable
