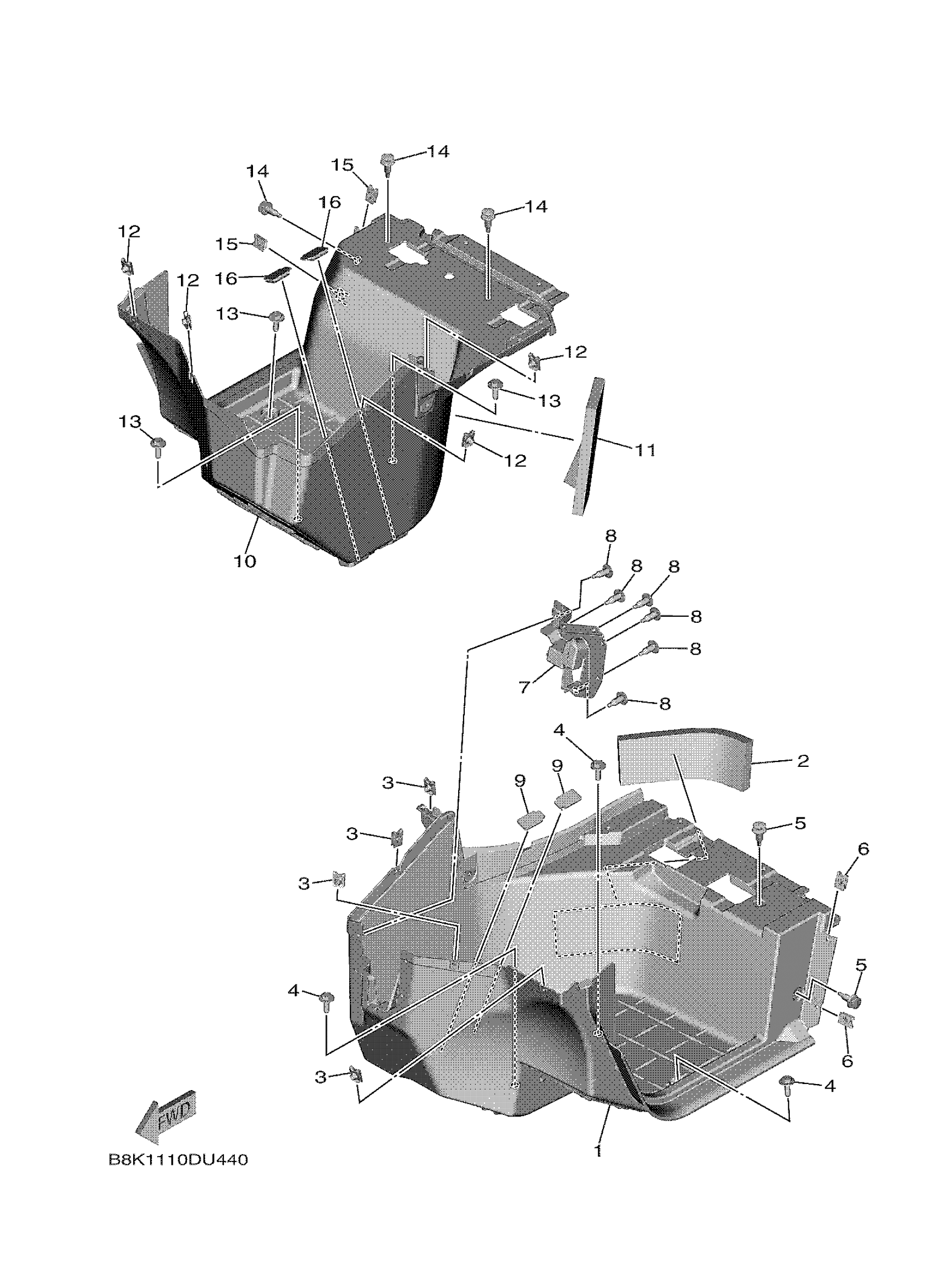

Yamaha YXE85WPLKL (WOLVERINE X2 R-SPEC EPS SE) B8K8 2019 STAND FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

BG4-F7411-00-00

$120.15

2

INSULATOR, SIDE CO

B8K-F174T-00-00

$5.27

3

NUT, SPRING

90183-060A6-00

$3.90

4

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

5

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

6

NUT, SPRING

90183-060A6-00

$3.90

7

COVER, DUST

BG4-F7286-00-00

$8.14

8

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

9

PLUG, HOLE

BG4-F312G-00-00

Unavailable

10

FOOTREST 2

BG4-F7421-01-00

$81.83

11

INSULATOR, SIDE CO

B8K-F174T-00-00

$5.27

12

NUT, SPRING

90183-060A6-00

$3.90

13

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

14

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

15

NUT, SPRING

90183-060A6-00

$3.90

16

PLUG, HOLE

BG4-F312G-00-00

Unavailable
