- YXE85WPLKL (WOLVERINE X2 R-SPEC EPS SE) B8K8 2019
CARRIER

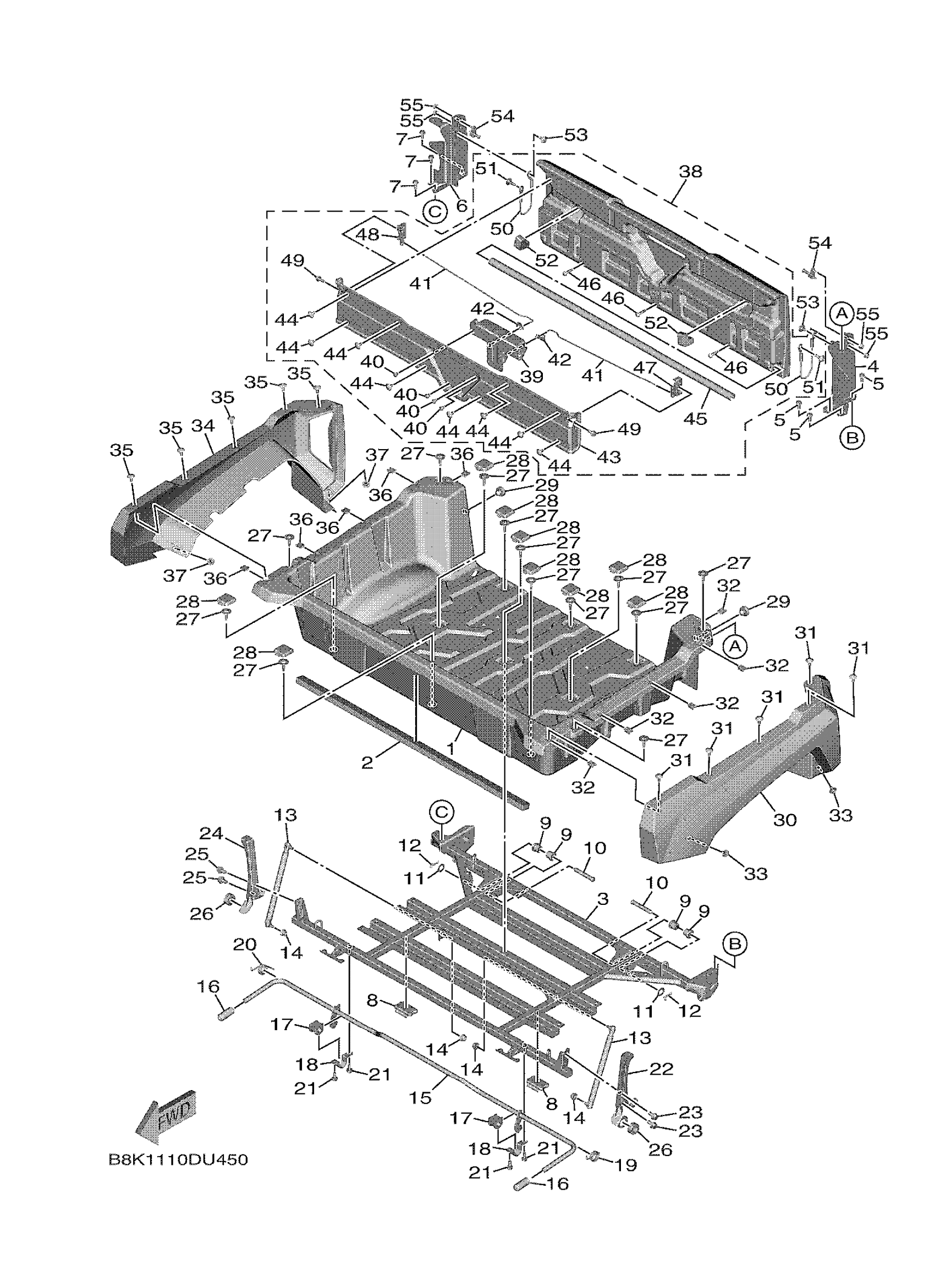

Yamaha YXE85WPLKL (WOLVERINE X2 R-SPEC EPS SE) B8K8 2019 CARRIER Diagram
#
1
BOX
B8K-F1171-00-00
Unavailable
2
INSULATOR 3
B8K-F172S-00-00
$9.49
3
BOX, BASE
B8K-F845C-10-00
Unavailable
4
STAY, FRONT GUARD
B8K-F8413-11-00
$79.99
5
BOLT, FLANGE
95817-06016-00
$2.75
6
STAY, FRONT GUARD 2
B8K-F8414-10-00
$57.99
7
BOLT, FLANGE
95817-06016-00
$2.75
8
DAMPER
B42-F113B-00-00
$3.76
9
BUSH 1
JW6-F2123-00-00
Unavailable
10
PIN, TAPER
1XD-F7827-00-00
Unavailable
11
WASHER PLATE 611441260000
90201-14212-00
$8.49
12
CLIP(3YF)
90468-16191-00
$8.49
13
DAMPER 1
B8K-F8415-00-00
$28.99
14
NUT, SELF-LOCKING
95602-08200-00
$3.20
15
LATCH ASSY
B8K-K7180-00-00
$37.99
16
CAP, PROTECTOR END
B8K-K818M-00-00
Unavailable
17
GROMMET
90480-01819-00
Unavailable
18
BRKT., TRUNCK 1
B8K-F84AS-00-00
Unavailable
19
SPRING
B8K-F8489-00-00
Unavailable
20
SPRING 2
B8K-F848A-00-00
Unavailable
21
BOLT, FLANGE
95817-06016-00
$2.75
22
BRACKET 3
B8K-F8476-10-00
Unavailable
23
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
24
BRACKET 5
B8K-F8486-10-00
Unavailable
25
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
26
GROMMET
90480-25801-00
Unavailable
27
BOLT
90109-068A5-00
Unavailable
28
CAP
2MB-F143A-00-00
Unavailable
29
PLUG
90338-10801-00
Unavailable
30
PANEL, REAR FENDER 3
B8K-K8193-D0-00
Unavailable
31
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
32
NUT, SPRING
90183-060A6-00
Unavailable
33
BOLT
90109-06202-00
Unavailable
34
PANEL, REAR FENDER
B8K-K8194-D0-00
Unavailable
35
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
36
NUT, SPRING
90183-060A6-00
Unavailable
37
BOLT
90109-06202-00
Unavailable
38
REAR STORAGE LID C
B8K-K810N-00-00
Unavailable
39
HANDLE, LATCH
BG4-F389F-02-00
Unavailable
40
. BOLT, HEXAGON SOCKET BUTTON
90111-06838-00
Unavailable
41
ROD
B8K-F8478-00-00
Unavailable
42
CLIP, CABLE
BG4-F2805-01-00
Unavailable
43
COVER
B8K-F331G-00-00
Unavailable
44
BOLT, HEXAGON SOCKET HEAD(1FK)
90110-06102-00
Unavailable
45
HINGE 2
B8K-F463F-02-00
Unavailable
46
. SCREW
90149-06846-00
Unavailable
47
LOCK ASSY
BG4-F16A0-00-00
Unavailable
48
LOCK ASSY 2
BG4-F16B0-00-00
Unavailable
49
BOLT, FLANGE
95817-06016-00
$2.75
50
HOLDER, CABLE
B8K-K7195-00-00
Unavailable
51
BOLT
90109-06171-00
Unavailable
52
DAMPER 2
BG4-F8416-10-00
Unavailable
53
BOLT
90109-06202-00
Unavailable
54
BOLT, STUD
BG4-F4441-00-00
Unavailable
55
NUT, U FLANGE
95604-06200-00
Unavailable
