Description

Price

1

SEAT BACK ASSY

BAR-F4790-02-00

$265.99

2

COVER, SINGLE SEAT

BAR-F4711-01-00

$271.99

3

SEAT ASSY 2

BAR-K8420-01-00

$183.99

4

COVER, SEAT BACK

BAR-F4791-01-00

$249.99

5

FRAME, SEAT 1

B4J-F473C-02-00

$156.99

6

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$2.02

7

GROMMET

1XD-F4742-00-00

$3.69

8

ADJUSTER ASSY

B4J-F7270-01-00

$61.99

9

ADJUSTER ASSY

B4J-F7260-01-00

$46.99

10

NUT, SELF-LOCKING

95602-08200-00

$3.20

11

BOLT, FLANGE

95817-08012-00

$5.49

12

SEAT BACK ASSY

BAR-F4790-02-00

$265.99

13

COVER, SINGLE SEAT

BAR-F4711-01-00

$271.99

14

SEAT ASSY 2

BAR-K8420-01-00

$183.99

15

COVER, SEAT BACK

BAR-F4791-01-00

$249.99

16

FRAME, SEAT 2

B4J-F473D-02-00

Unavailable

17

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$2.02

18

GROMMET

1XD-F4742-00-00

$3.69

19

BOLT, FLANGE

95817-08012-00

$5.49

20

COVER

B4J-F117F-00-00

Unavailable

21

RIVET, BLIND(J50)

90267-49152-00

Unavailable

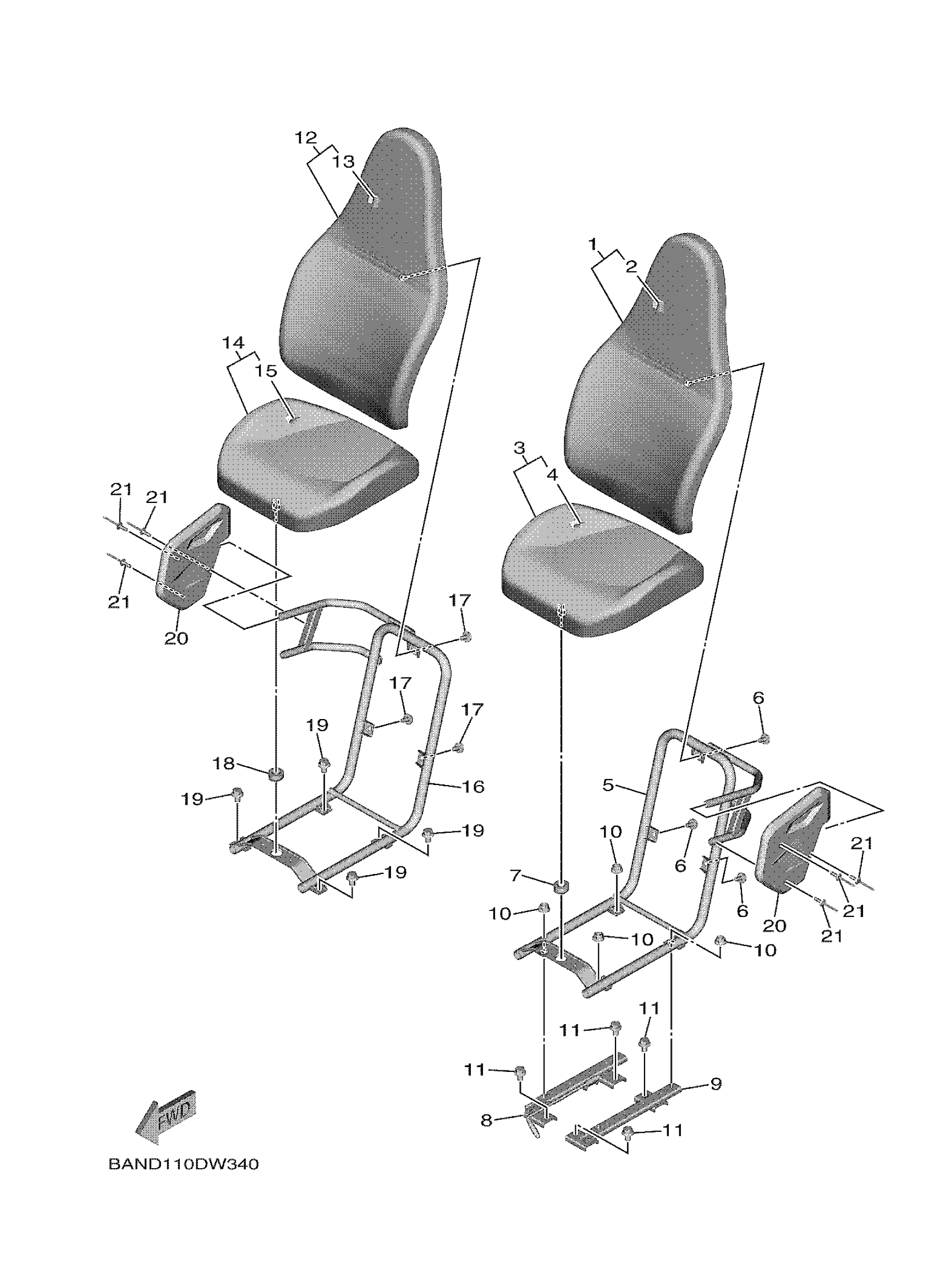

Yamaha YXE85WPHMH (WOLVERINE X2 EPS HUNTER) BAND 2021 SEAT Diagram

SEAT BACK ASSY

COVER, SINGLE SEAT

SEAT ASSY 2

COVER, SEAT BACK

FRAME, SEAT 1

BOLT,HEX. SOCKET BUTTON

GROMMET

ADJUSTER ASSY

ADJUSTER ASSY

NUT, SELF-LOCKING

BOLT, FLANGE

SEAT BACK ASSY

COVER, SINGLE SEAT

SEAT ASSY 2

COVER, SEAT BACK

FRAME, SEAT 2

BOLT,HEX. SOCKET BUTTON

GROMMET

BOLT, FLANGE

COVER

RIVET, BLIND(J50)
