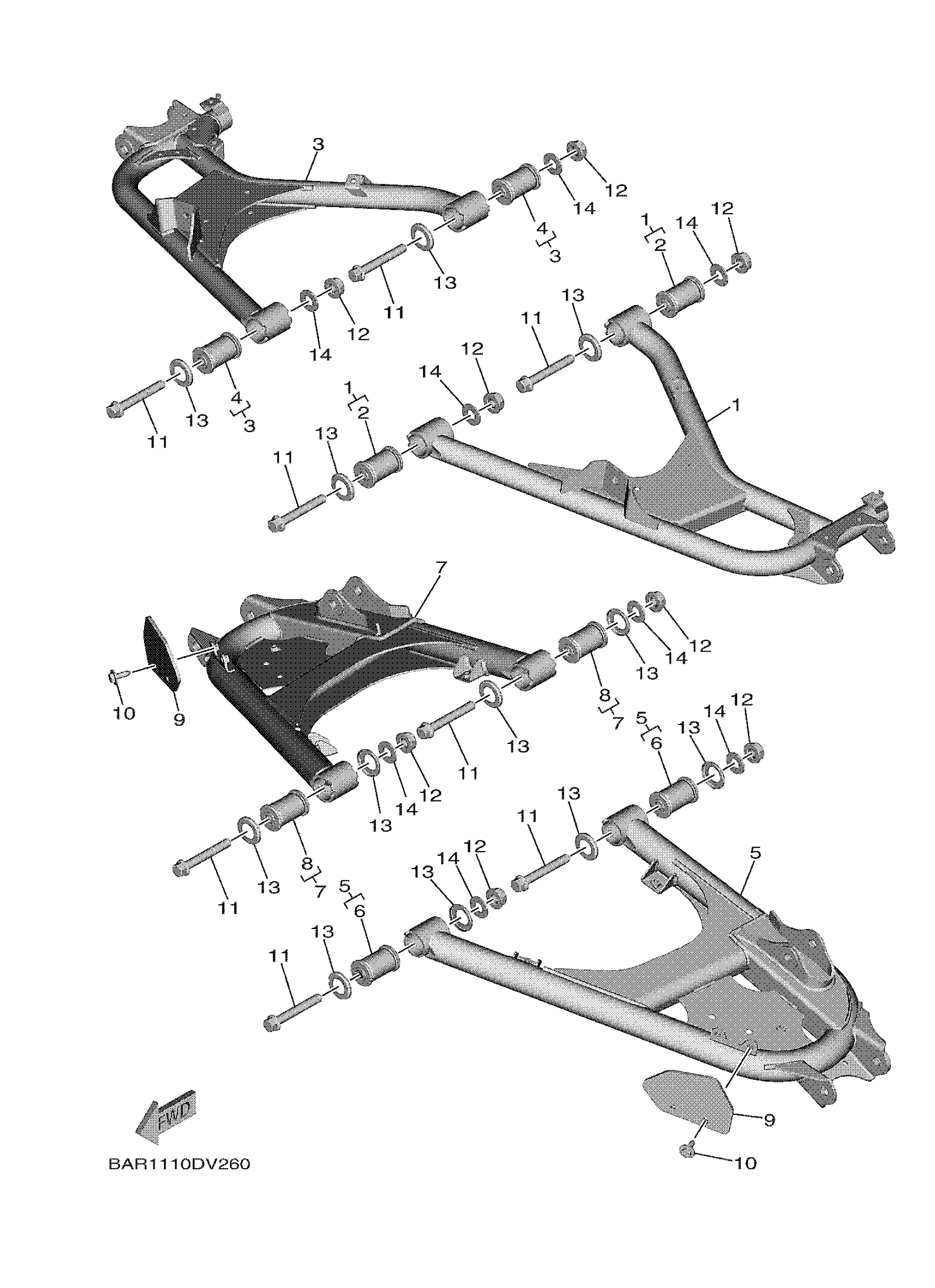

Yamaha YXE85WPHMH (WOLVERINE X2 EPS HUNTER) BAND 2021 REAR ARM Diagram

#

Description
Price

1

RR. UPR. ARM COMP.

BAR-F2104-01-00

$61.23

2

BUSH

BAR-F3526-00-00

$91.08

3

RR. UPR. ARM COMP.

BAR-F2105-01-00

$62.27

4

BUSH

BAR-F3526-00-00

$91.08

5

RR LWR ARM COMP

BAR-F2106-02-00

$78.52

6

BUSH

BAR-F3526-00-00

$91.08

7

RR LWR ARM COMP

BAR-F2107-02-00

$101.71

8

BUSH

BAR-F3526-00-00

$91.08

9

COVER, THRUST 1

2HC-F2128-10-00

$1.97

10

BOLT, WITH WASHER

90119-06226-00

$2.12

11

BOLT, FLANGE

90105-12095-00

$7.16

12

NUT, SELF-LOCKING

90185-12002-00

$9.38

13

COVER, THRUST 1

BAR-F3517-00-00

Unavailable

14

WASHER, PLATE

90201-12045-00

$4.81
