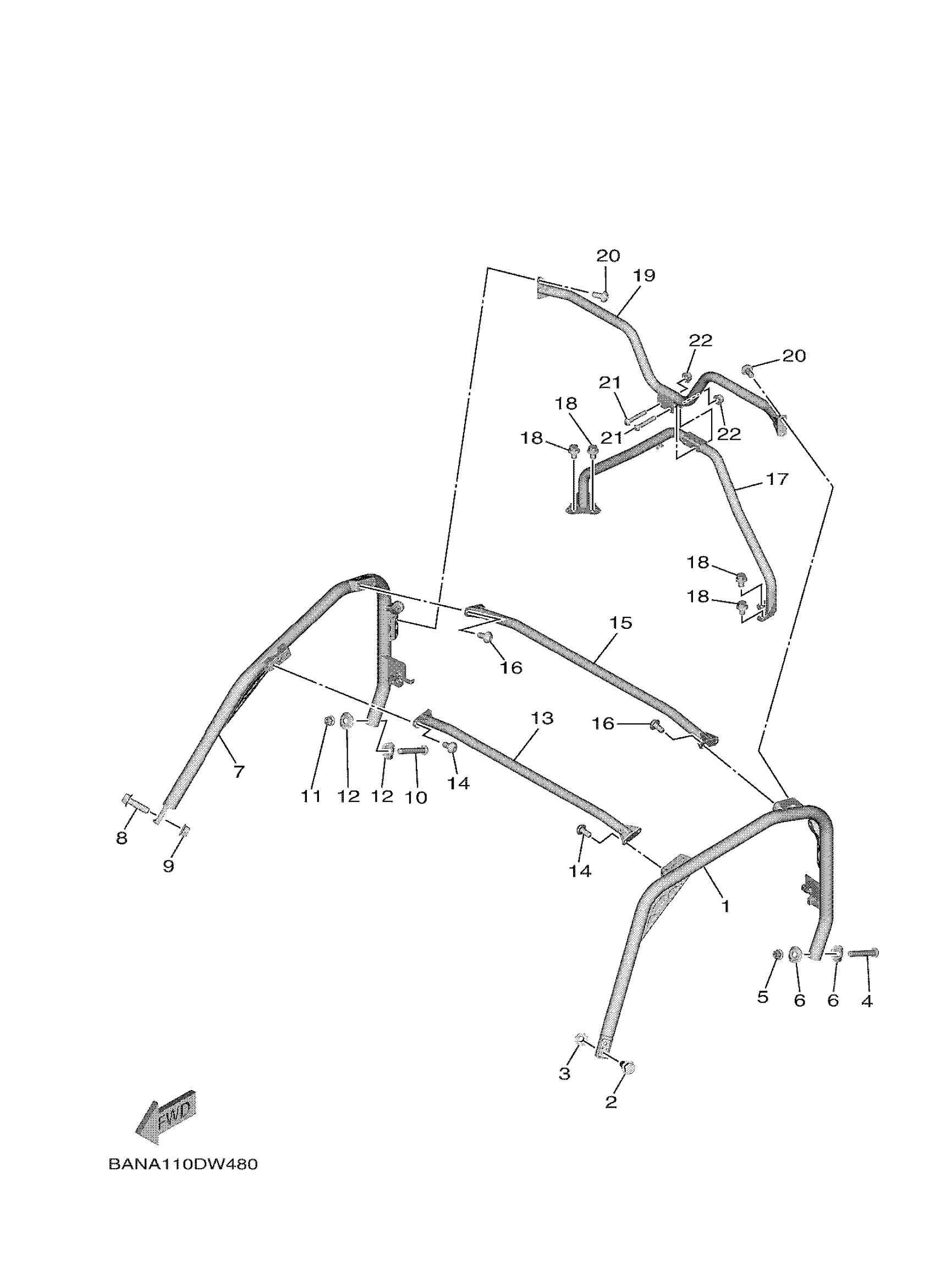

Yamaha YXE85WPHMH (WOLVERINE X2 EPS HUNTER) BAND 2021 GUARD 2 Diagram

#

Description
Price

1

SUPPORT, ROOF 3

B4M-K831A-00-00

$98.38

2

BOLT, FLANGE

95817-12040-00

$3.33

3

NUT, SELF-LOCKING

90185-12002-00

$9.38

4

BOLT,BUTTON

92017-10070-00

$4.08

5

NUT, SELF-LOCKING

90185-10819-00

$0.91

6

WASHER 2

1XD-K7526-00-00

$3.92

7

SUPPORT, ROOF 4

B4M-K831E-00-00

$92.03

8

BOLT, FLANGE

95817-12040-00

$3.33

9

NUT, SELF-LOCKING

90185-12002-00

$9.38

10

BOLT,BUTTON

92017-10070-00

$4.08

11

NUT, SELF-LOCKING

90185-10819-00

$0.91

12

WASHER 2

1XD-K7526-00-00

$3.92

13

MEMBER, ROOF FRAME

B4J-K8392-01-00

$131.13

14

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

15

MEMBER, ROOF FRAME 2

B4J-K8393-01-00

$134.42

16

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

17

ROOF SUPPORT ASSY

B4M-K830B-00-00

Unavailable

18

BOLT, FLANGE

95812-10016-00

Unavailable

19

REINFORCEMENT, ROO

B4M-K831M-00-00

Unavailable

20

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

21

BOLT,BUTTON

92017-10060-00

Unavailable

22

NUT, SELF-LOCKING

90185-10819-00

$0.91
