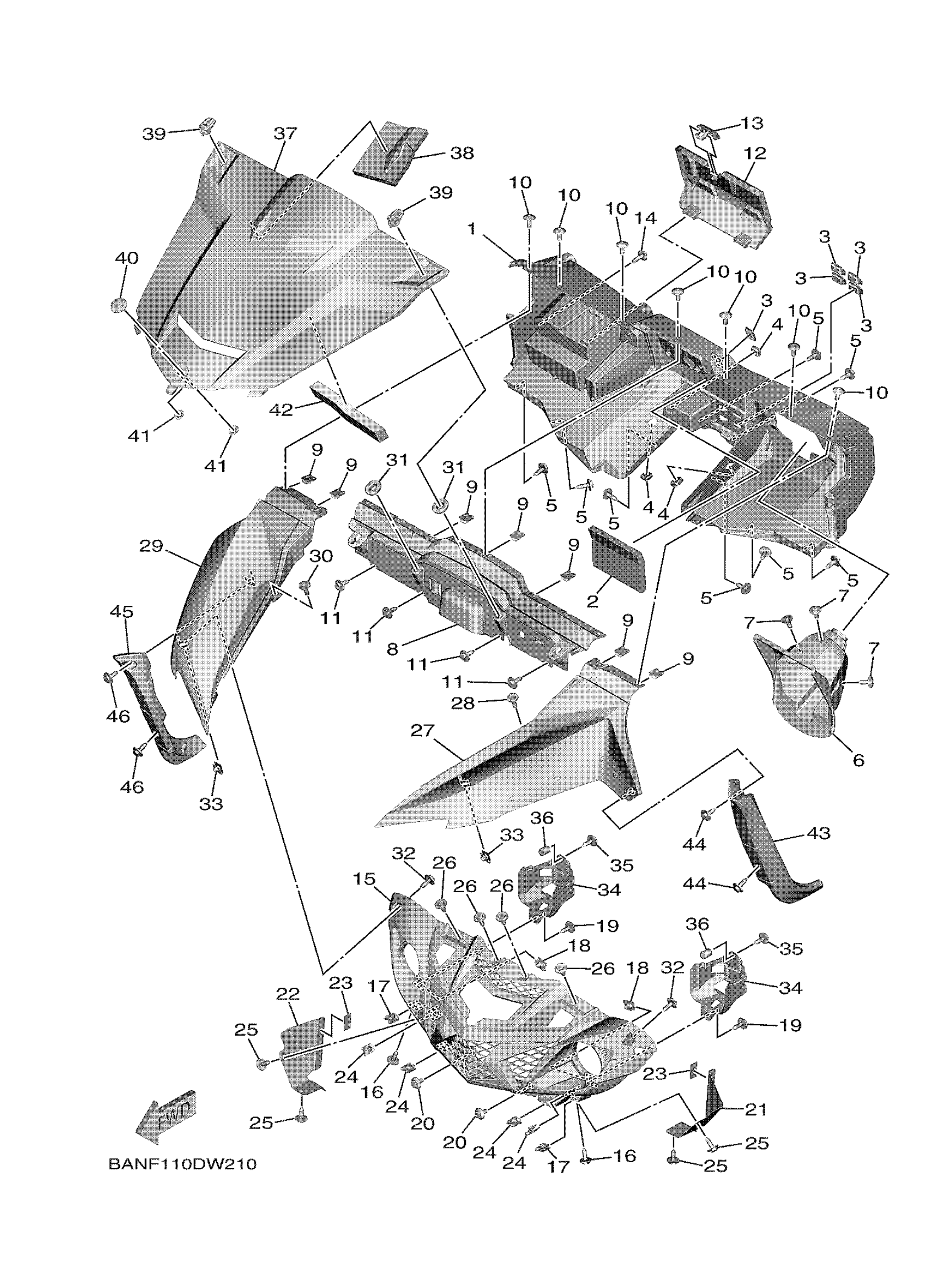

Yamaha YXE85WPHMH (WOLVERINE X2 EPS HUNTER) BAND 2021 FRONT FENDER Diagram

#

Description
Price

1

PANEL, INSTRUMENT

BAR-K7711-01-00

$168.28

2

INSULATOR 4

B8K-F173S-00-00

$6.27

3

PLUG, HOLE

BG4-F312G-00-00

Unavailable

4

CAP 2

B4J-F3742-00-00

$1.52

5

BOLT, WITH WASHER

90119-06226-00

$2.00

6

COVER, STEERING

BG4-F3818-00-00

$16.70

7

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

8

COVER, FRONT

BG4-F2865-00-00

$34.15

9

NUT, SPRING

90183-062A1-00

$1.75

10

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

11

BOLT, WITH WASHER

90119-06226-00

$2.00

12

LID

BG4-F160F-00-00

$10.87

13

LOCK

F2X-U2875-00-00

$2.57

14

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

15

GRILLE, FRONT

BG4-F8309-11-00

$66.84

16

BOLT, WITH WASHER

90119-06226-00

$2.00

17

NUT, SPRING

90183-062A1-00

$1.75

18

NUT, SPRING

90183-062A1-00

$1.75

19

BOLT, WITH WASHER

90119-06226-00

$2.00

20

BOLT

90109-06202-00

Unavailable

21

COVER 1

BG4-E246A-00-00

Unavailable

22

COVER 2

BG4-E246E-00-00

Unavailable

23

DAMPER

5UG-K7588-01-00

Unavailable

24

NUT, SPRING

90183-062A1-00

$1.75

25

BOLT, WITH WASHER

90119-06226-00

$2.00

26

BOLT, WITH WASHER

90119-06226-00

$2.00

27

FRONT FENDER COMP.

BG4-F1510-40-00

Unavailable

28

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

29

FRONT FENDER COMP.

BG4-F1501-40-00

Unavailable

30

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

31

GROMMET(4DN)

90480-01558-00

Unavailable

32

BOLT, WITH WASHER

90119-06226-00

$2.00

33

NUT, SPRING

90183-062A1-00

$1.75

34

COVER, HEADLIGHT

2UD-F838E-00-00

Unavailable

35

BOLT, WITH WASHER

90119-06226-00

$2.00

36

HOSE

90445-08029-00

$3.21

37

HOOD 1

BG4-F1982-60-00

Unavailable

38

INSULATOR 4

B8K-F173S-00-00

$6.27

39

LEVER, LOCK

1XD-2175K-10-00

Unavailable

40

TUNING FORK MARK

1XD-F175B-01-00

Unavailable

41

NUT, SPRING

90183-06071-00

$0.50

42

DAMPER, PLATE

90520-50004-00

Unavailable

43

EXT,FRONT FENDER 1

BG4-K8185-01-00

Unavailable

44

BOLT, WITH WASHER

90119-06226-00

$2.00

45

EXT,FRONT FENDER 2

BG4-K8186-01-00

Unavailable

46

BOLT, WITH WASHER

90119-06226-00

$2.00
