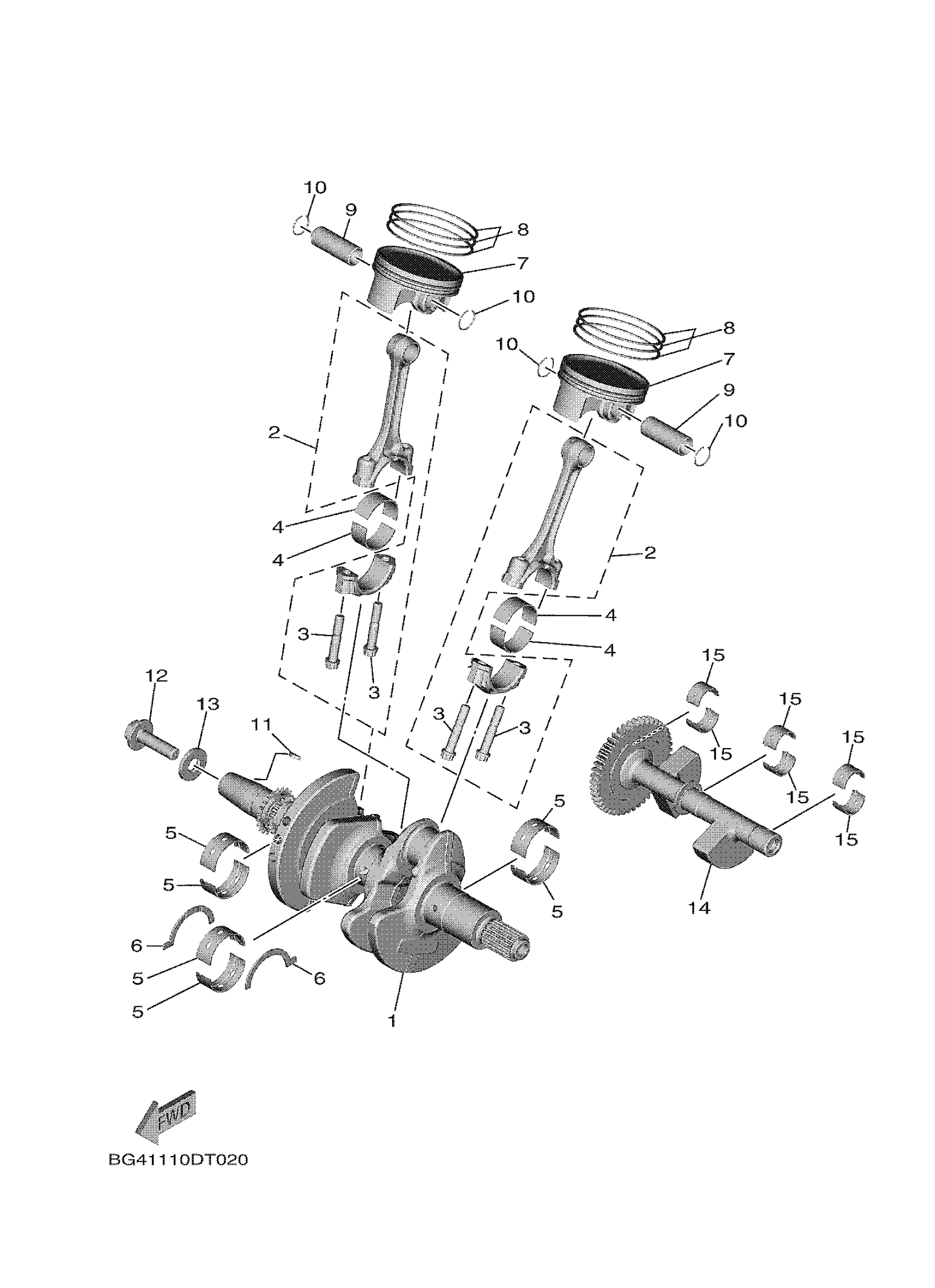

Yamaha YXE85WPHMH (WOLVERINE X2 EPS HUNTER) BAND 2021 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

B4D-11400-00-00

$463.49

2

CONNECTING ROD ASSY

BG4-11650-00-00

$125.96

3

BOLT, CONNECTING ROD

5PX-11654-00-00

$5.99

4

PLANE BEARING, CONNECTING ROD

5JW-11656-00-00

$10.72

4

PLANE BEARING, CONNECTING ROD

5JW-11656-10-00

$10.74

4

PLANE BEARING, CONNECTING ROD

5JW-11656-20-00

$10.64

4

PLANE BEARING, CONNECTING ROD

5JW-11656-30-00

$11.48

4

PLANE BEARING, CONNECTING ROD

5JW-11656-40-00

$10.74

4

PLANE BEARING, CONNECTING ROD

5JW-11656-50-00

$9.17

5

PLANE BEARING, CRANKSHAFT 1

23P-11416-00-00

$16.03

5

PLANE BEARING, CRANKSHAFT 1

23P-11416-10-00

Unavailable

5

PLANE BEARING, CRANKSHAFT 1

23P-11416-20-00

$18.30

5

PLANE BEARING, CRANKSHAFT 1

23P-11416-30-00

$18.27

5

PLANE BEARING, CRANKSHAFT 1

23P-11416-40-00

$16.07

6

BEARING, THRUST 1

BG4-11426-00-00

$11.48

7

PISTON (STD)

BG4-E1631-00-00

Unavailable

8

PISTON RING SET (STD)

B4D-E1603-00-00

Unavailable

9

PIN, PISTON

2HC-11633-00-00

Unavailable

10

CIRCLIP (26H)

93450-19095-00

Unavailable

11

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

12

BOLT, UNION

90401-12003-00

Unavailable

13

WASHER (838)

90201-12191-00

Unavailable

14

BALANCER ASSY

B4D-E1500-00-00

Unavailable

15

PLANE BEARING, BALANCE WEIGHT

2S3-11413-00-00

Unavailable

15

PLANE BEARING, BALANCE WEIGHT

2S3-11413-10-00

Unavailable

15

PLANE BEARING, BALANCE WEIGHT

2S3-11413-20-00

Unavailable

15

PLANE BEARING, BALANCE WEIGHT

2S3-11413-30-00

Unavailable

15

PLANE BEARING, BALANCE WEIGHT

2S3-11413-40-00

Unavailable
