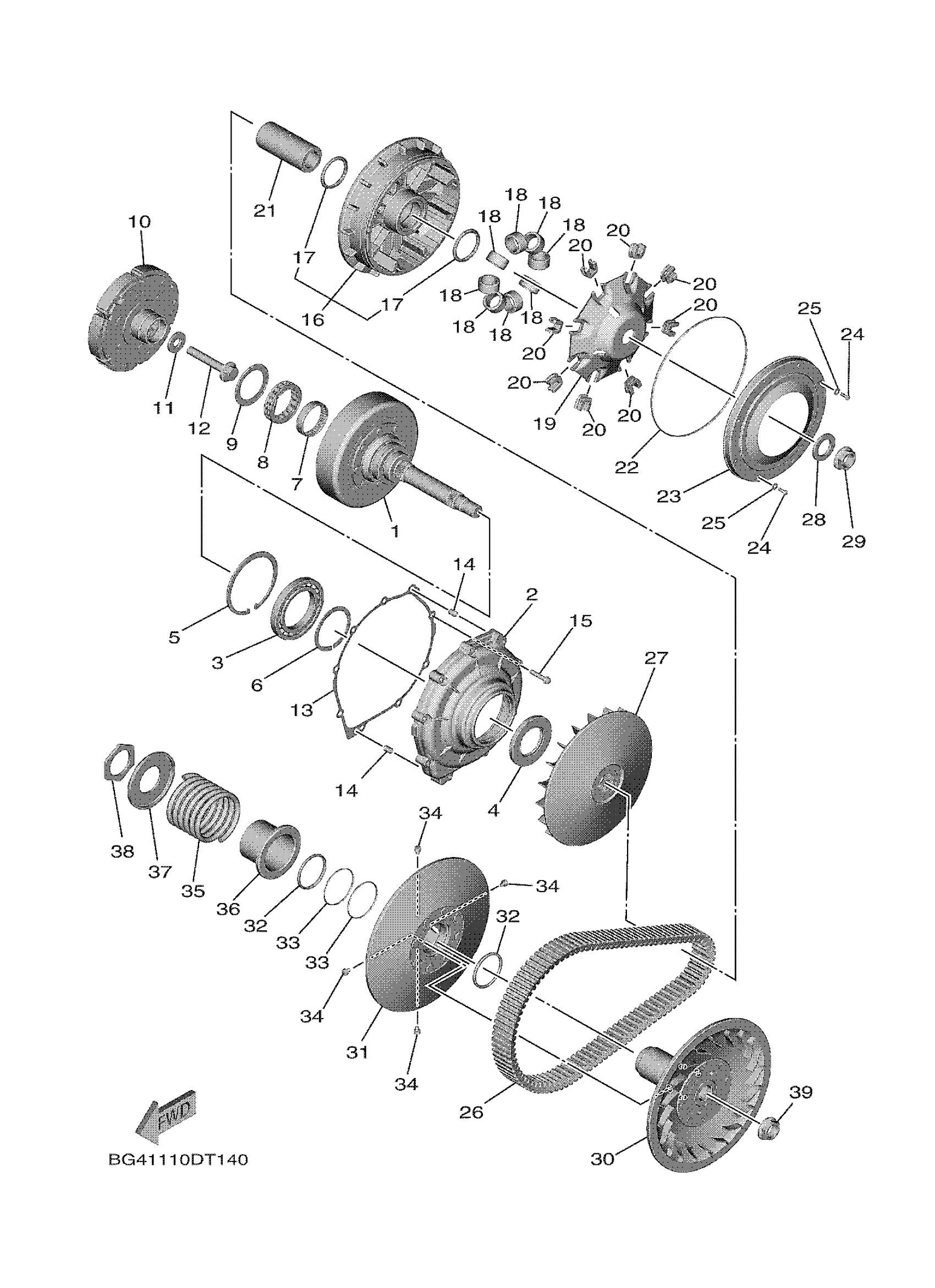

Yamaha YXE85WPHMH (WOLVERINE X2 EPS HUNTER) BAND 2021 CLUTCH Diagram
#
1
CLUTCH HOUSING COMP.
BG4-16611-00-00
$359.99
2
HOUSING, BEARING 1
BG4-15163-00-00
$87.99
3
BRG,R-B 16012 95MM 276G NT
93316-01201-00
$88.99
4
OIL SEAL
93102-45009-00
$24.99
5
CIRCLIP(6U3)
99009-95500-00
$15.99
6
CIRCLIP
99009-60800-00
$9.49
7
BEARING
93317-445B3-00
$42.99
8
BEARING, ONE WAY
4SH-16664-00-00
$154.99
9
RING, SEAL
1HP-16717-00-00
$31.99
10
CLUTCH CARRIER ASSY
BG4-16620-10-00
$455.99
11
WASHER (838)
90201-12191-00
$7.49
12
BOLT, UNION
90401-12004-00
$36.99
13
GASKET, 2
BG4-15463-00-00
$15.99
14
PIN, DOWEL
99530-08012-00
Unavailable
15
BOLT, FLANGE
95022-06030-00
$3.72
16
PRIMARY SLIDING SHEAVE COMP.
BG4-17606-00-00
Unavailable
17
OIL SEAL
93101-41001-00
Unavailable
18
WEIGHT
BG4-17632-00-00
Unavailable
19
CAM
BG4-17623-00-00
Unavailable
20
SLIDER
BG4-17653-00-00
Unavailable
21
COLLAR
BG4-17645-00-00
Unavailable
22
O-RING
93211-74001-00
Unavailable
23
STOPPER
BG4-17639-00-00
Unavailable
24
SCREW, PAN HEAD
90157-04006-00
Unavailable
25
WASHER, PLATE(4HC)
90201-047R9-00
Unavailable
26
V-BELT
BG4-17641-00-00
Unavailable
27
SHEAVE, PRIMARY FIXED
BG4-17611-00-00
Unavailable
28
WASHER, PLATE
90201-26016-00
Unavailable
29
NUT
90179-22025-00
Unavailable
30
SECONDARY FIXED SHEAVE COMP.
BG4-17660-00-00
Unavailable
31
SECONDARY SLIDING SHEAVE
BG4-17670-00-00
Unavailable
32
OIL SEAL
93101-48004-00
Unavailable
33
O-RING
93210-50768-00
Unavailable
34
PIN, GUIDE
4CW-17664-00-00
Unavailable
35
SPRING, COMPRESSION
90501-850A0-00
Unavailable
36
SEAT, SECONDARY SPRING
B4J-17684-00-00
Unavailable
37
SEAT,SPRING
BG4-17644-00-00
Unavailable
38
NUT
90170-42003-00
Unavailable
39
NUT
90179-22025-00
Unavailable
