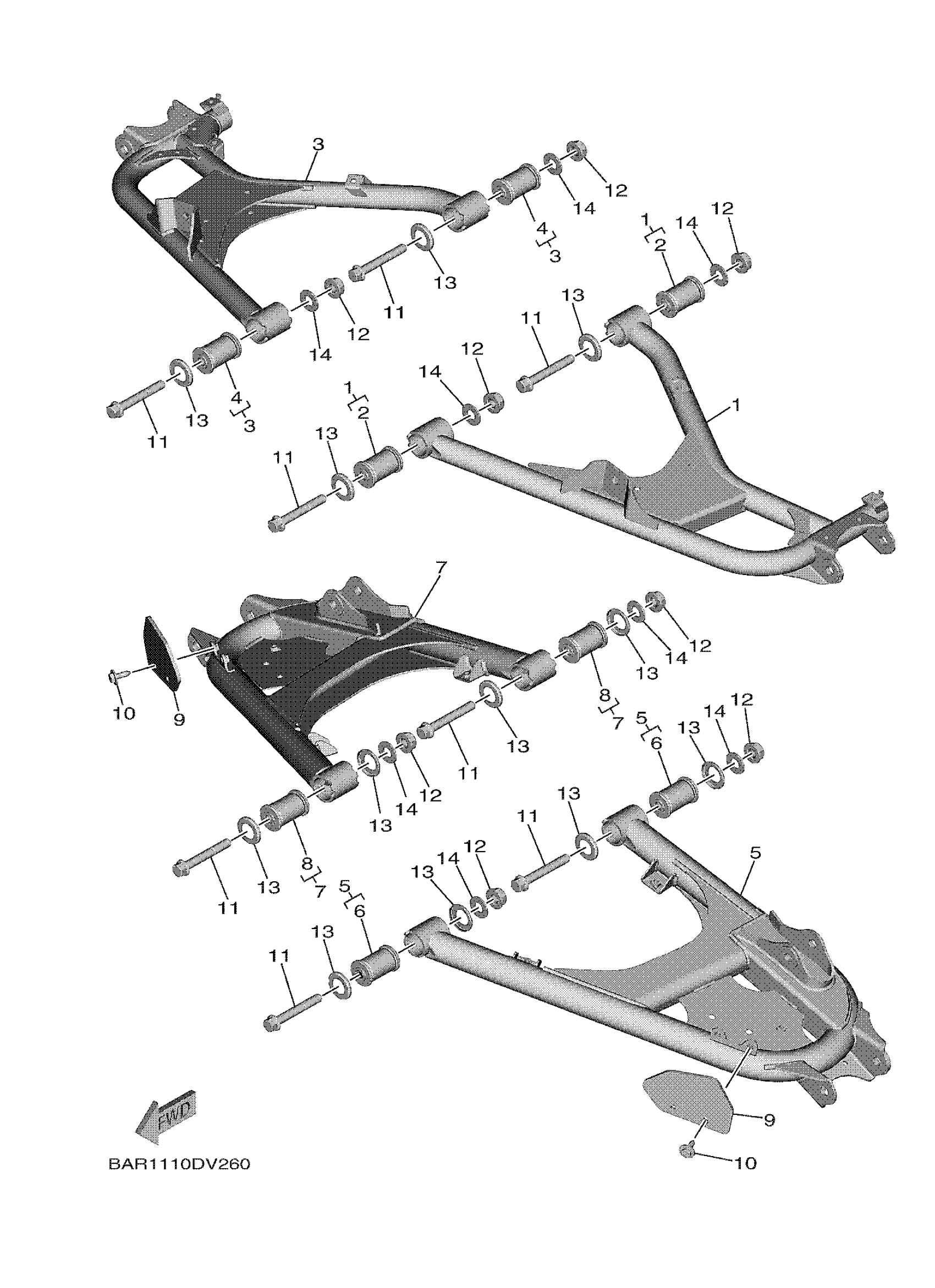

Yamaha YXE85WPHLH (WOLVERINE X2 R-SPEC EPS HUNTER) BAN3 2020 REAR ARM Diagram

#

Description
Price

1

RR. UPR. ARM COMP.

BAR-F2104-01-00

$69.99

2

BUSH

BAR-F3526-00-00

$97.99

3

RR. UPR. ARM COMP.

BAR-F2105-01-00

$69.99

4

BUSH

BAR-F3526-00-00

$97.99

5

RR LWR ARM COMP

BAR-F2106-02-00

$127.99

6

BUSH

BAR-F3526-00-00

$97.99

7

RR LWR ARM COMP

BAR-F2107-02-00

$126.99

8

BUSH

BAR-F3526-00-00

$97.99

9

COVER, THRUST 1

2HC-F2128-10-00

$2.49

10

BOLT, WITH WASHER

90119-06226-00

$8.49

11

BOLT, FLANGE

90105-12095-00

$9.49

12

NUT, SELF-LOCKING

90185-12002-00

$12.49

13

COVER, THRUST 1

BAR-F3517-00-00

Unavailable

14

WASHER, PLATE

90201-12045-00

$5.60
