- YXE85WPHLH (WOLVERINE X2 R-SPEC EPS HUNTER) BAN3 2020
GUARD 2

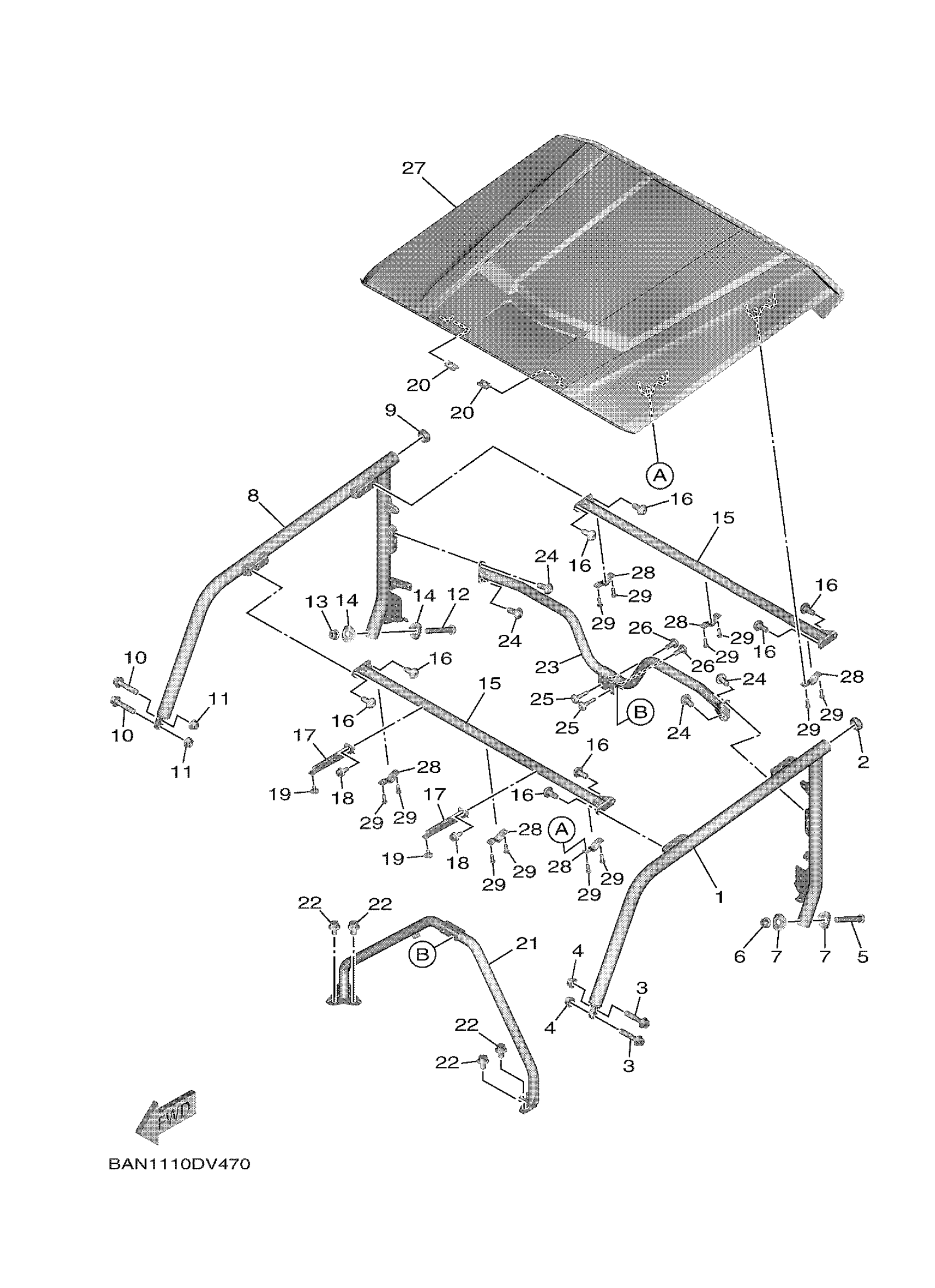

Yamaha YXE85WPHLH (WOLVERINE X2 R-SPEC EPS HUNTER) BAN3 2020 GUARD 2 Diagram
#
Description
Price
1
SUPPORT, ROOF 3
B8K-K831A-10-00
$646.99
2
PLUG
B8K-F2417-00-00
$2.39
3
BOLT, FLANGE(4GB)
95817-10045-00
$6.99
4
NUT, SELF-LOCKING
90185-10819-00
$0.90
5
BOLT,BUTTON
92017-10070-00
$4.14
6
NUT, SELF-LOCKING
90185-10819-00
$0.90
7
WASHER 2
1XD-K7526-00-00
$5.49
8
SUPPORT, ROOF 4
B8K-K831E-10-00
$648.99
9
PLUG
B8K-F2417-00-00
$2.39
10
BOLT, FLANGE(4GB)
95817-10045-00
$6.99
11
NUT, SELF-LOCKING
90185-10819-00
$0.90
12
BOLT,BUTTON
92017-10070-00
$4.14
13
NUT, SELF-LOCKING
90185-10819-00
$0.90
14
WASHER 2
1XD-K7526-00-00
$5.49
15
MEMBER, ROOF FRAME
BG4-K8392-12-00
$208.99
16
BOLT,HEX. SOCKET B
90111-10802-00
Unavailable
17
SUPPORT 1
B8K-F2567-00-00
Unavailable
18
BOLT, FLANGE
90105-08867-00
Unavailable
19
BOLT,HEX. SOCKET BUTTON
90111-06083-00
Unavailable
20
NUT, SPRING
90183-060A6-00
Unavailable
21
ROOF SUPPORT ASSY
B8K-K830B-10-00
Unavailable
22
BOLT, FLANGE
95812-10016-00
Unavailable
23
REINFORCEMENT, ROO
B8K-K831M-10-00
Unavailable
24
BOLT,HEX. SOCKET B
90111-10802-00
Unavailable
25
BOLT
5UG-K7519-00-00
Unavailable
26
NUT, SPECIAL
5UG-K7573-00-00
Unavailable
27
COVER, SUN ROOF
B8K-K8314-00-00
Unavailable
28
CLAMP, SUPPORT
BAN-K8366-00-00
Unavailable
29
TAPPING SCREW
90169-06801-00
Unavailable
