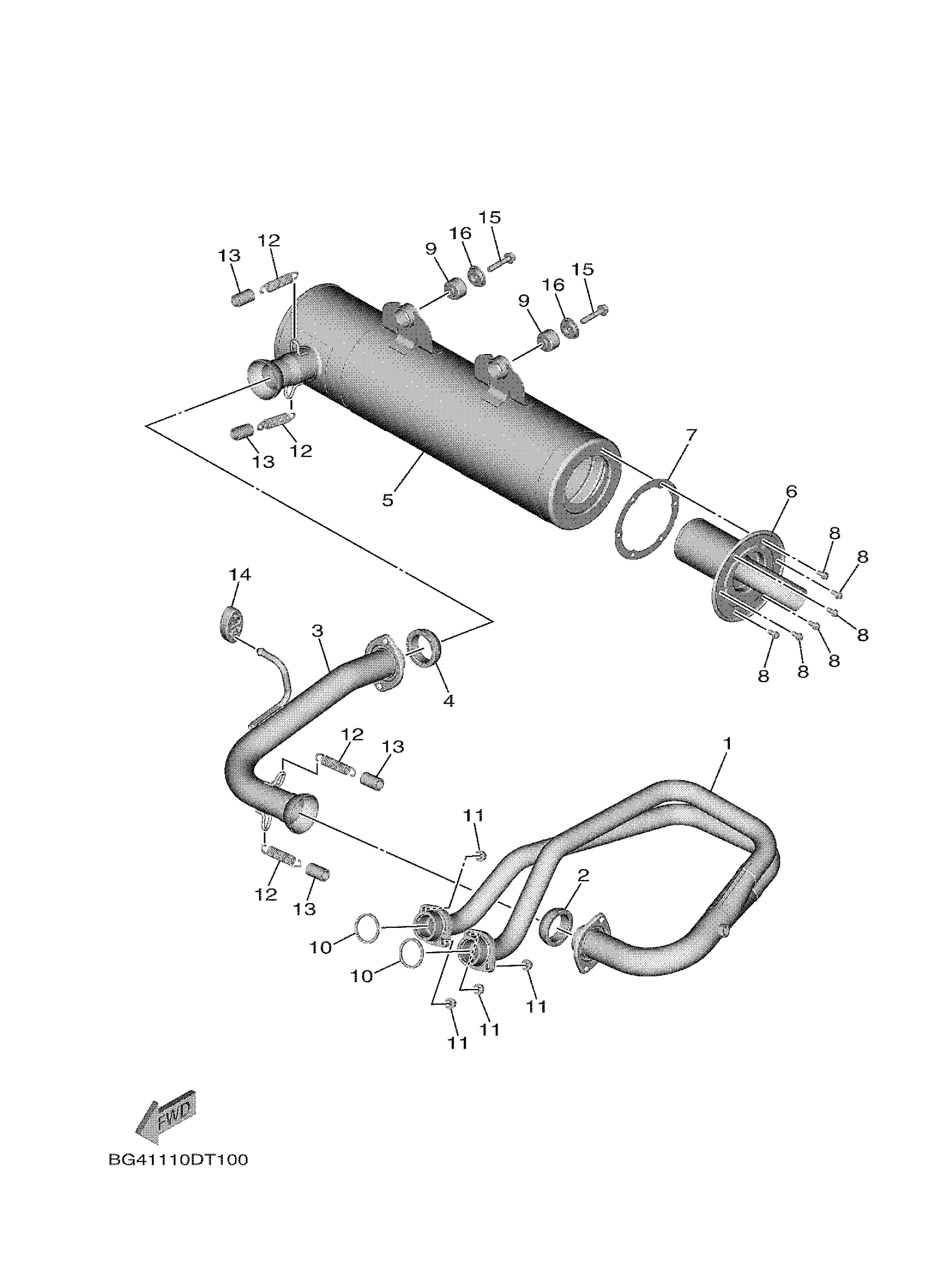

Yamaha YXE85WPHLH (WOLVERINE X2 R-SPEC EPS HUNTER) BAN3 2020 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

BG4-E4611-00-00

$207.99

2

GASKET, MUFFLER

2MB-E4714-00-00

Unavailable

3

PIPE, EXHAUST 2

BG4-E4621-00-00

$101.99

4

GASKET, MUFFLER

2MB-E4714-00-00

Unavailable

5

MUFFLER 1

BG4-E4711-03-00

$618.99

6

SPARK ARRESTER ASS

BG4-E4780-01-00

$57.99

7

GASKET, SILENCER

2HC-14755-00-00

$22.99

8

BOLT, FLANGE

95022-06012-00

$3.29

9

DAMPER,FOOTREST

1HP-F7414-00-00

$21.99

10

GASKET, EXHAUST PIPE

4FM-14613-00-00

$12.99

11

NUT,FLANGE(J10)

95702-08500-00

$1.43

12

SPRING, TENSION

90506-26012-00

$13.99

13

PIPE, 4-3

BG4-1464K-00-00

$13.99

14

DAMPER, MUFFLER

5UG-14737-00-00

$16.49

15

BOLT, FLANGE

95817-08040-00

$7.49

16

WASHER

3B4-14759-01-00

Unavailable
