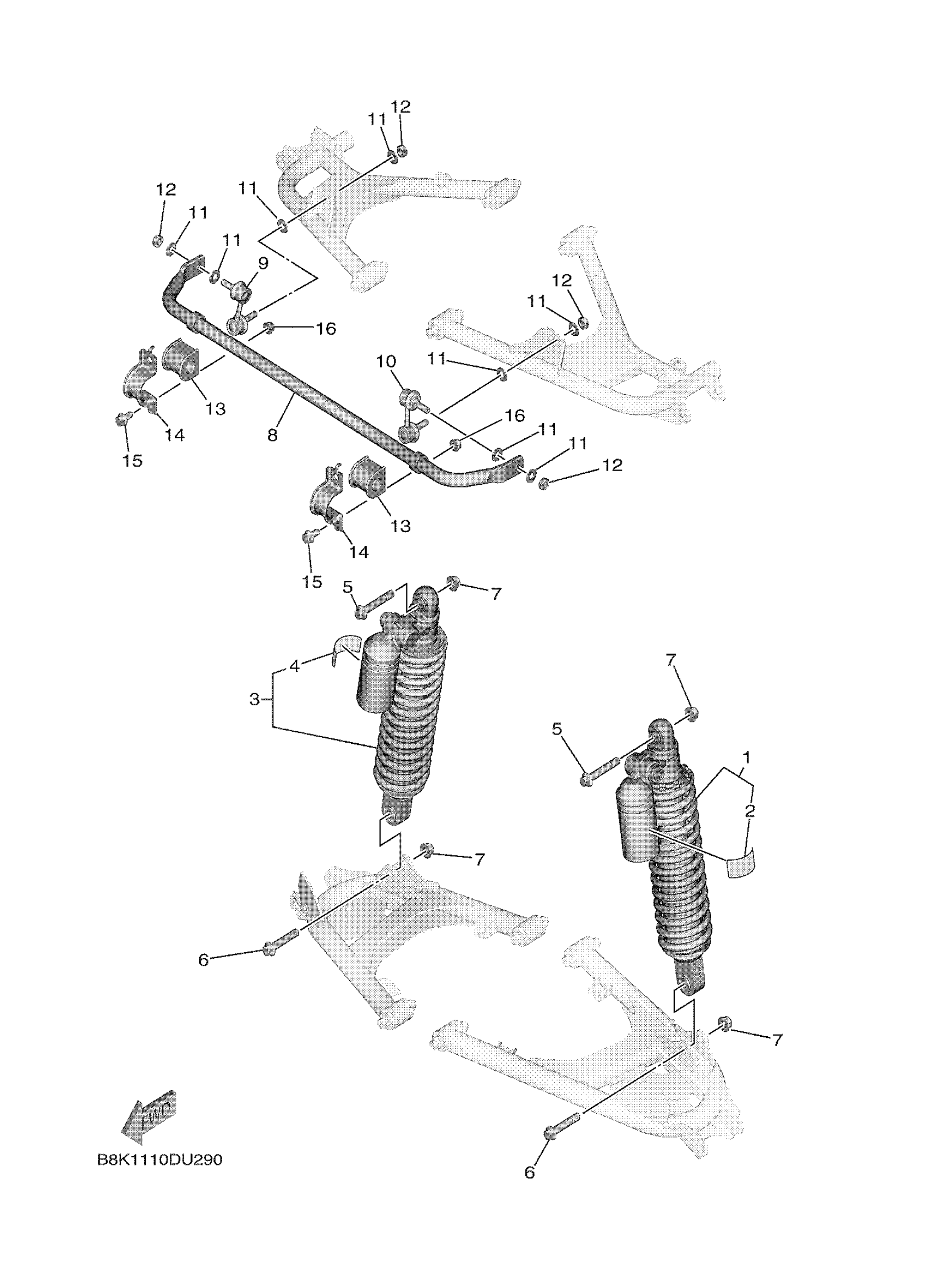

Yamaha YXE85WPHKH (WOLVERINE X2 R-SPEC EPS HUNTER) B8K3 2019 REAR SUSPENSION Diagram

RR. SHOCK ABSORBER ASSY. ,1

B8K-F220T-01-00

Unavailable

LABEL,WARNING

1HP-F2259-01-00

$15.89

RR. SHOCK ABSORBER ASSY. ,2

B8K-F220U-01-00

Unavailable

LABEL,WARNING

1HP-F2259-01-00

$15.89

BOLT, FLANGE

90105-12056-00

$8.84

BOLT, FLANGE

90105-12055-00

$9.99

NUT, SELF-LOCKING

90185-12009-00

$6.75

BAR, STABILIZER

BG4-G7491-02-00

$101.44

JOINT, STABILIZER 1

16B-2385L-10-00

$59.51

JOINT, STABILIZER 2

16B-2385M-10-00

$60.41

WASHER, PLATE

90201-10035-00

$3.33

NUT, SELF-LOCKING

90185-10012-00

$2.78

BUSH, STABILIZER F

1XD-F386G-00-00

Unavailable

COVER, STABILIZER

1XD-F386H-00-00

$6.79

BOLT, FLANGE

95817-10020-00

$4.89

NUT, SELF-LOCKING

90185-10011-00

Unavailable
