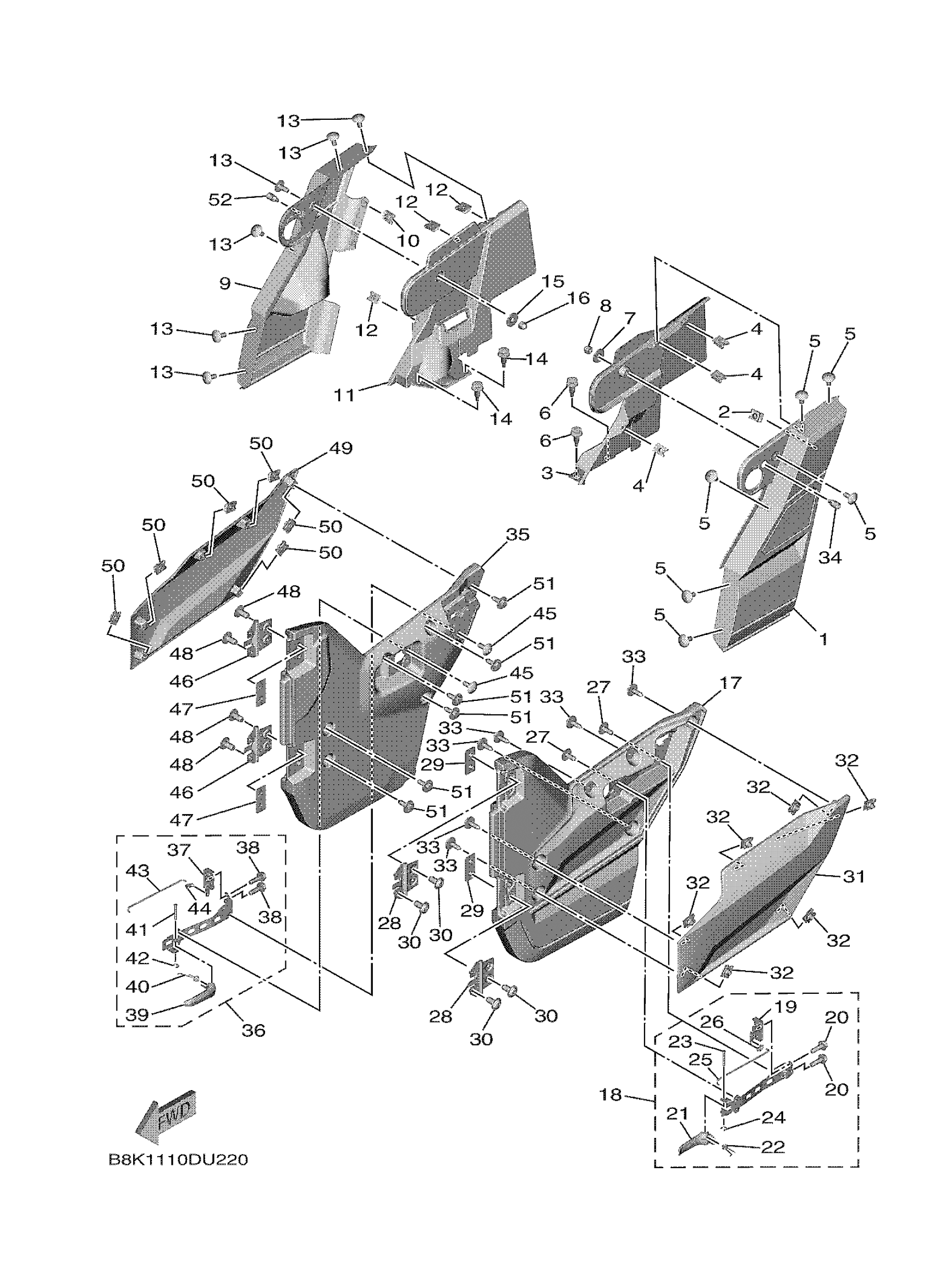

Yamaha YXE85WPBLL (WOLVERINE X2 EPS) BAN8 2020 SIDE COVER Diagram
#
1
COVER, SIDE 2
BG4-F1721-00-00
$93.99
2
NUT, SPRING
90183-060A6-00
$5.49
3
COVER, SIDE 1
B8K-F2864-00-00
Unavailable
4
NUT, SPRING
90183-060A6-00
$5.49
5
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
6
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
7
WASHER, PLATE
90201-06036-00
$8.49
8
NUT (J17)
95380-06800-00
$8.49
9
COVER, SIDE 3
BG4-F1731-00-00
$94.99
10
NUT, SPRING
90183-060A6-00
$5.49
11
COVER, SIDE 2
B8K-F2868-00-00
$15.99
12
NUT, SPRING
90183-060A6-00
$5.49
13
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
14
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
15
WASHER, PLATE
90201-06036-00
$8.49
16
NUT (J17)
95380-06800-00
$8.49
17
PNL., DOOR FR. LH
BG4-K8557-00-00
Unavailable
18
BODY, LATCH 1
2HC-K7171-00-00
Unavailable
19
LOCK ASSY
2HC-F16A0-00-00
Unavailable
20
BOLT, FLANGE
95817-06020-00
Unavailable
21
LEVER, LATCH 1
2HC-F17N1-00-00
Unavailable
22
SPRING
2HC-F1742-00-00
Unavailable
23
. PIN
90249-05801-00
Unavailable
24
CIRCLIP (EU0)
99080-04600-00
Unavailable
25
. ROD 1
2HC-F7247-00-00
Unavailable
26
. CLIP, CABLE
2HC-F2805-00-00
Unavailable
27
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
28
HINGE ASSY
BG4-F4772-00-00
Unavailable
29
NUT,PLATE
BG4-F1736-00-00
Unavailable
30
SCREW
90149-08805-00
Unavailable
31
TRIM, SIDE PANEL 1
BG4-K817H-10-00
Unavailable
32
NUT, SPRING
90183-060A6-00
$5.49
33
BOLT, WITH WASHER
90119-06226-00
Unavailable
34
PAD
2MB-F8378-00-00
Unavailable
35
PNL., DOOR FR. RH
BG4-K8558-00-00
Unavailable
36
BODY, LATCH 2
2HC-K7172-00-00
Unavailable
37
LOCK ASSY 2
2HC-F16B0-00-00
Unavailable
38
BOLT, FLANGE
95817-06020-00
Unavailable
39
LEVER, LATCH 1
2HC-F17N1-00-00
Unavailable
40
SPRING
2HC-F1742-00-00
Unavailable
41
. PIN
90249-05801-00
Unavailable
42
CIRCLIP (EU0)
99080-04600-00
Unavailable
43
. ROD 2
2HC-F7248-00-00
Unavailable
44
. CLIP, CABLE
2HC-F2805-00-00
Unavailable
45
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
46
HINGE ASSY
BG4-F4772-00-00
Unavailable
47
NUT,PLATE
BG4-F1736-00-00
Unavailable
48
SCREW
90149-08805-00
Unavailable
49
TRIM, SIDE PANEL 2
BG4-K817J-10-00
Unavailable
50
NUT, SPRING
90183-060A6-00
$5.49
51
BOLT, WITH WASHER
90119-06226-00
Unavailable
52
PAD
2MB-F8378-00-00
Unavailable
