- YXE85WPBLL (WOLVERINE X2 EPS) BAN8 2020
MIDDLE DRIVE GEAR

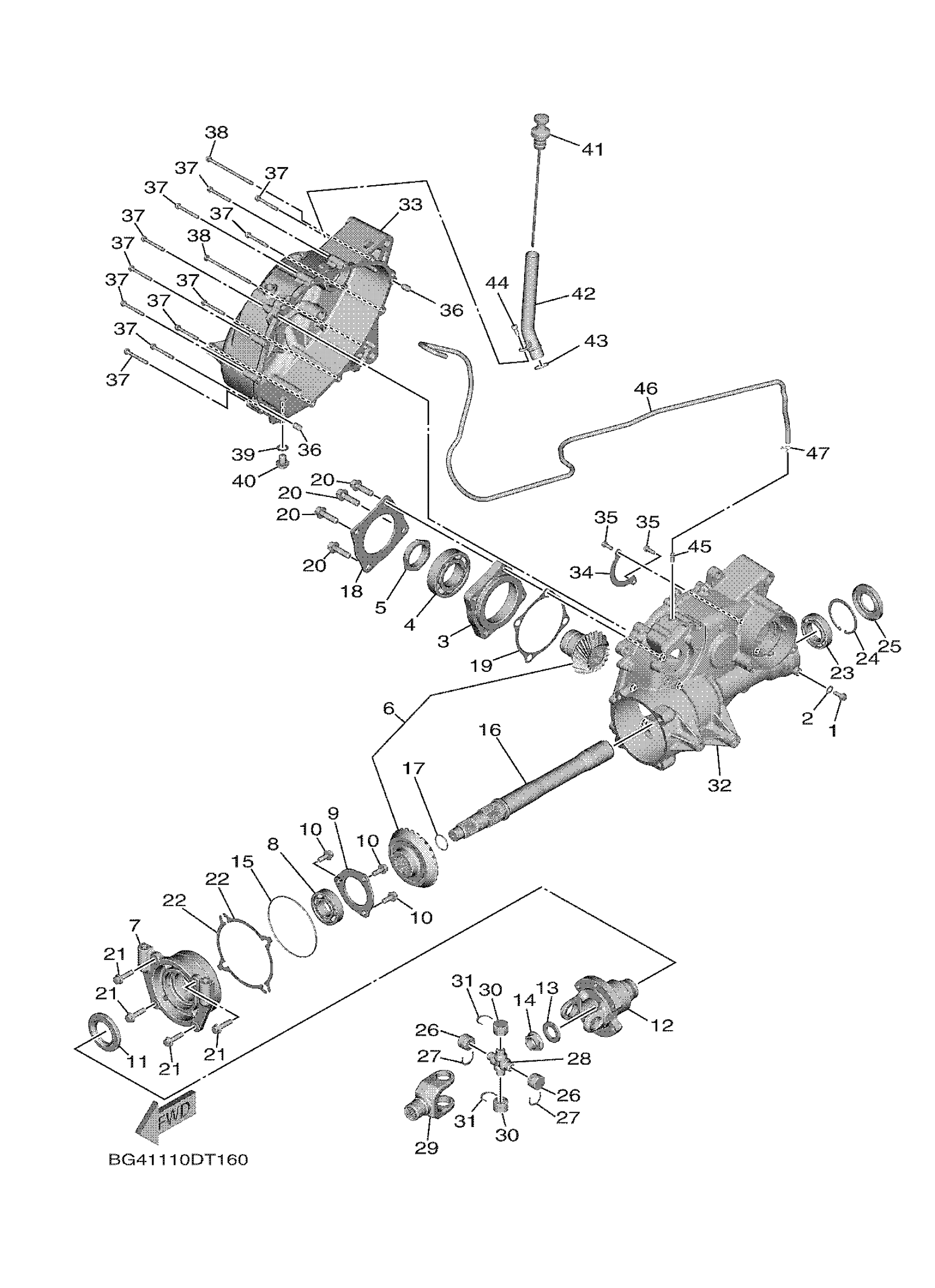

Yamaha YXE85WPBLL (WOLVERINE X2 EPS) BAN8 2020 MIDDLE DRIVE GEAR Diagram
#
1
BOLT, FLANGE
95022-06010-00
$5.60
2
GASKET 256113960000
90430-06014-00
Unavailable
3
HOUSING, BEARING
BG4-17521-00-00
Unavailable
4
BEARING
93306-20904-00
$86.99
5
NUT
90179-44001-00
Unavailable
6
PINION SET
BG4-17530-00-00
Unavailable
7
HOUSING, BEARING
BG4-17551-00-00
Unavailable
8
BEARING
93306-20654-00
$76.99
9
PLATE, BRG. 2
BG4-17568-00-00
Unavailable
10
BOLT, FLANGE
95812-08020-00
$2.80
11
OIL SEAL
93102-40031-00
$16.99
12
YOKE,JOINT 2
BG4-17576-00-00
Unavailable
13
WASHER, PLATE
90201-22026-00
$7.49
14
NUT
90179-22025-00
$20.99
15
O-RING (5H0)
93211-05471-00
$14.99
16
SHAFT, MIDDLE DRIVEN
BG4-17553-00-00
Unavailable
17
O-RING (M01)
93210-25755-00
Unavailable
18
PLATE, BEARING COVER
BG4-15383-00-00
Unavailable
19
SHIM, PINION (0.25T)
BG4-17531-00-00
Unavailable
19
SHIM, PINION (0.30T)
BG4-17531-10-00
Unavailable
19
SHIM, PINION (0.35T)
BG4-17531-20-00
Unavailable
19
SHIM, PINION (0.40T)
BG4-17531-30-00
Unavailable
19
SHIM, PINION (0.45T)
BG4-17531-40-00
Unavailable
19
SHIM, PINION (0.50T)
BG4-17531-50-00
Unavailable
20
BOLT, FLANGE
95812-10035-00
Unavailable
21
BOLT, FLANGE
90105-08236-00
Unavailable
22
SHIM, THRUST (0.15T)
BG4-17537-00-00
Unavailable
22
SHIM, THRUST (0.20T)
BG4-17537-10-00
Unavailable
22
SHIM, THRUST (0.25T)
BG4-17537-20-00
Unavailable
22
SHIM, THRUST (0.30T)
BG4-17537-30-00
Unavailable
22
SHIM, THRUST (0.40T)
BG4-17537-40-00
Unavailable
22
SHIM, THRUST (0.50T)
BG4-17537-50-00
Unavailable
22
SHIM, THRUST (0.60T)
BG4-17537-60-00
Unavailable
23
BRG,R-B 6007 62MM 150G KY
93306-00702-00
Unavailable
24
CIRCLIP(MF1)
99009-62500-00
Unavailable
25
OIL SEAL
93102-35042-00
Unavailable
26
BEARING
93399-99965-00
Unavailable
27
CIRCLIP
93440-23197-00
Unavailable
28
SPIDER
1YW-46187-10-00
Unavailable
29
YOKE, JOINT 2
BG4-46147-00-00
Unavailable
30
BEARING
93399-99965-00
Unavailable
31
CIRCLIP
93440-23197-00
Unavailable
32
CASE, TRANSFER 1
BG4-17541-00-00
Unavailable
33
CASE, TRANSFER 2
BG4-17542-01-00
Unavailable
34
PLATE, BEARING
BG4-17558-00-00
Unavailable
35
BOLT, FLANGE
95022-06016-00
Unavailable
36
PIN, DOWEL(3VD)
99530-10114-00
Unavailable
37
BOLT, FLANGE
95022-06045-00
Unavailable
38
BOLT, FLANGE
95022-06100-00
Unavailable
39
GASKET(3FD)
90430-12213-00
Unavailable
40
PLUG, STRAIGHT SCREW
90340-12006-00
Unavailable
41
PLUG, OIL LEVEL
BG4-15362-00-00
Unavailable
42
PIPE, OIL
BG4-15112-00-00
Unavailable
43
O-RING (26H)
93210-21631-00
Unavailable
44
BOLT,SOCKET
91317-06012-00
Unavailable
45
. CONNECTOR, SUCTION PIPE
137-13115-01-00
Unavailable
46
HOSE (L1200)
90445-080K8-00
Unavailable
47
CLIP (16G)
90467-08021-00
Unavailable
