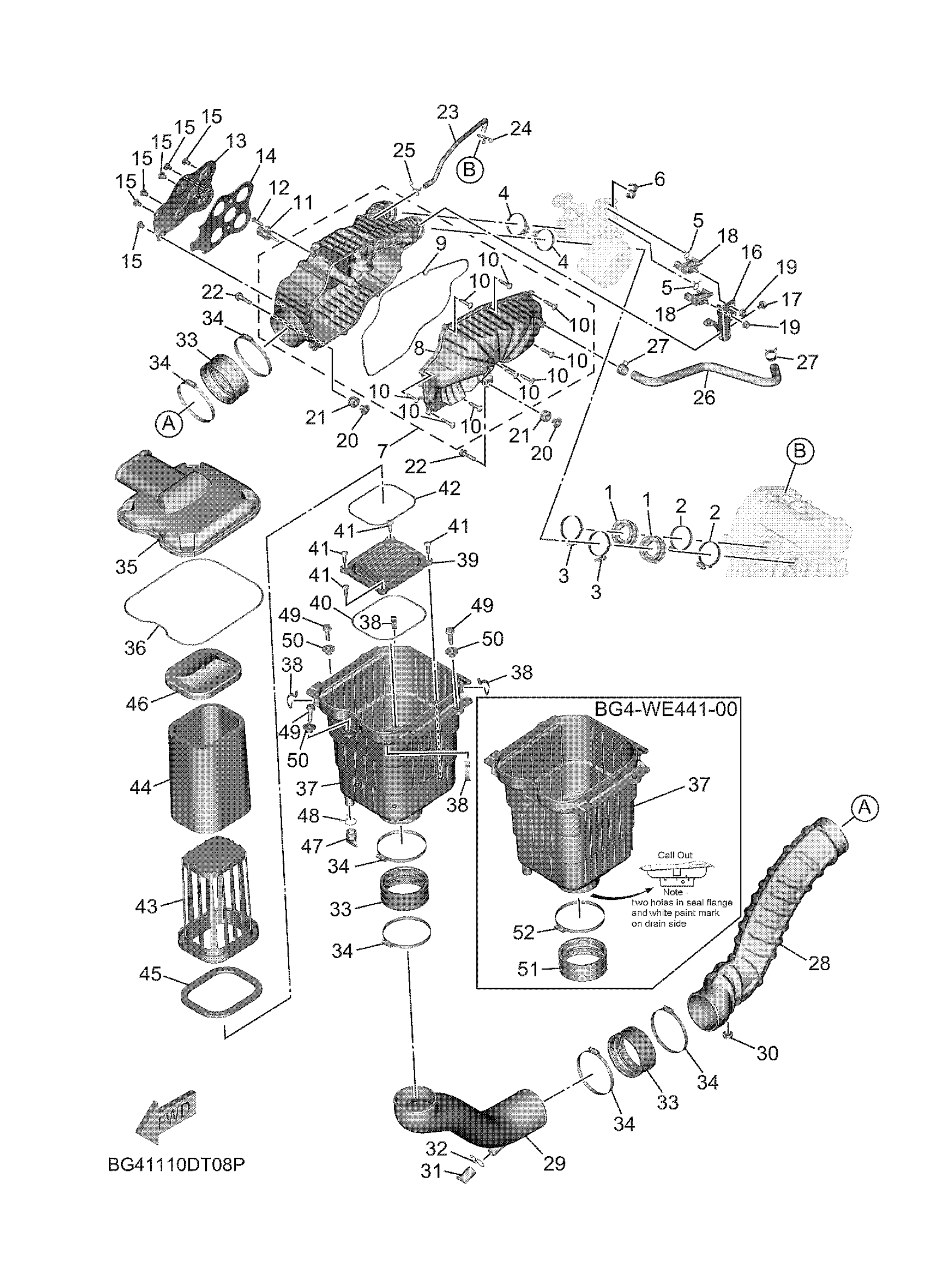

Yamaha YXE85WPBLL (WOLVERINE X2 EPS) BAN8 2020 INTAKE Diagram
#
1
JOINT, CARBURETOR 1
BG4-13586-00-00
$20.99
2
HOSE CLAMP ASSY
90450-56011-00
$13.99
3
HOSE CLAMP ASSY
90450-56013-00
Unavailable
4
HOSE CLAMP ASSY
90450-50005-00
Unavailable
5
CLIP
90467-100A1-00
$7.49
6
CLAMP(6M7)
90464-09M31-00
$8.49
7
SILENCER ASSY, INT
BG4-E4440-00-00
$123.99
8
SILENCER, INTAKE 1
BG4-E4431-00-00
$11.49
9
SEAL
BG4-E4467-00-00
$4.29
10
SCREW, TRUSS TAP.
97707-50025-00
$8.49
11
SENSOR, AIR TEMPERATURE
8FP-85886-00-00
$60.99
12
SCREW, PANHEAD TAPPING
97702-50520-00
$0.43
13
PLATE
BG4-E4477-00-00
$11.49
14
DAMPER
BG4-E4409-00-00
$4.88
15
SCREW, BIND(2TV)
98980-06008-00
$3.19
16
STAY 1
BG4-E4493-00-00
Unavailable
17
BOLT, FLANGE
95812-06008-00
Unavailable
18
SOLENOID VALVE ASSY
BG4-86120-00-00
Unavailable
19
NUT, FLANGE
95702-06500-00
Unavailable
20
COLLAR
90387-06199-00
Unavailable
21
GROMMET(4FM)
90480-12596-00
Unavailable
22
BOLT, FLANGE
95822-06025-00
Unavailable
23
PIPE, BREATHER 1
BG4-11166-00-00
Unavailable
24
CLIP
90467-100A1-00
$7.49
25
CLIP (4X4)
90467-12052-00
Unavailable
26
PIPE, OIL TANK BRE
BG4-F1745-00-00
Unavailable
27
CLIP(34X)
90467-22097-00
Unavailable
28
DUCT
BG4-E4437-01-00
Unavailable
29
DUCT
BG4-E443A-00-00
Unavailable
30
GROMMET(4FU)
90480-13567-00
Unavailable
31
SEAL
59V-14457-00-00
Unavailable
32
CLIP
90467-220A1-00
Unavailable
33
SEAL
BG4-E4476-10-00
Unavailable
34
HOSE CLAMP ASSY
90450-99806-00
Unavailable
35
CAP, CLEANER CASE
BG4-E4412-00-00
Unavailable
36
SEAL
BG4-E4452-00-00
Unavailable
37
CASE, AIR CLEANER 1
BG4-E4411-10-00
Unavailable
37
AIR CLEANER CASE COMPLETE
BG4-WE441-00-00
Unavailable
38
CLIP, CAP FITTING
B16-E4424-00-00
Unavailable
39
ELEMENT, AIR CLEAN
BG4-E4461-00-00
Unavailable
40
SEAL
BG4-E4462-00-00
Unavailable
41
SCREW, TAPPING(4TV)
90167-05078-00
Unavailable
42
SEAL
BG4-E4457-00-00
Unavailable
43
GUIDE
BG4-E4458-00-00
Unavailable
44
ELEMENT, AIR CLEAN
BG4-E4451-00-00
Unavailable
45
DAMPER 1
BG4-E4425-00-00
Unavailable
46
CAP, CLEANER CASE
BG4-E4422-00-00
Unavailable
47
PIPE, DRAIN
B16-E443E-00-00
Unavailable
48
CLIP
90467-220A1-00
Unavailable
49
BOLT, FLANGE
90105-06833-00
Unavailable
50
COLLAR (4N0)
90387-071E0-00
Unavailable
51
SEAL
B4J-14239-00-00
Unavailable
52
HOSE CLAMP ASSY
90450-99018-00
Unavailable
