Description

Price

1

SUPPORT, ROOF 3

B8K-K831A-10-00

$646.99

2

PLUG

B8K-F2417-00-00

$2.39

3

BOLT, FLANGE(4GB)

95817-10045-00

$6.99

4

NUT, SELF-LOCKING

90185-10819-00

$0.90

5

BOLT,BUTTON

92017-10070-00

$4.14

6

NUT, SELF-LOCKING

90185-10819-00

$0.90

7

WASHER 2

1XD-K7526-00-00

$5.49

8

SUPPORT, ROOF 4

B8K-K831E-10-00

$648.99

9

PLUG

B8K-F2417-00-00

$2.39

10

BOLT, FLANGE(4GB)

95817-10045-00

$6.99

11

NUT, SELF-LOCKING

90185-10819-00

$0.90

12

BOLT,BUTTON

92017-10070-00

$4.14

13

NUT, SELF-LOCKING

90185-10819-00

$0.90

14

WASHER 2

1XD-K7526-00-00

$5.49

15

MEMBER, ROOF FRAME

BG4-K8392-12-00

$208.99

16

BOLT,HEX. SOCKET B

90111-10802-00

Unavailable

17

ROOF SUPPORT ASSY

B8K-K830B-10-00

Unavailable

18

BOLT, FLANGE

95812-10016-00

Unavailable

19

REINFORCEMENT, ROO

B8K-K831M-10-00

Unavailable

20

BOLT,HEX. SOCKET B

90111-10802-00

Unavailable

21

BOLT

5UG-K7519-00-00

Unavailable

22

NUT, SPECIAL

5UG-K7573-00-00

Unavailable

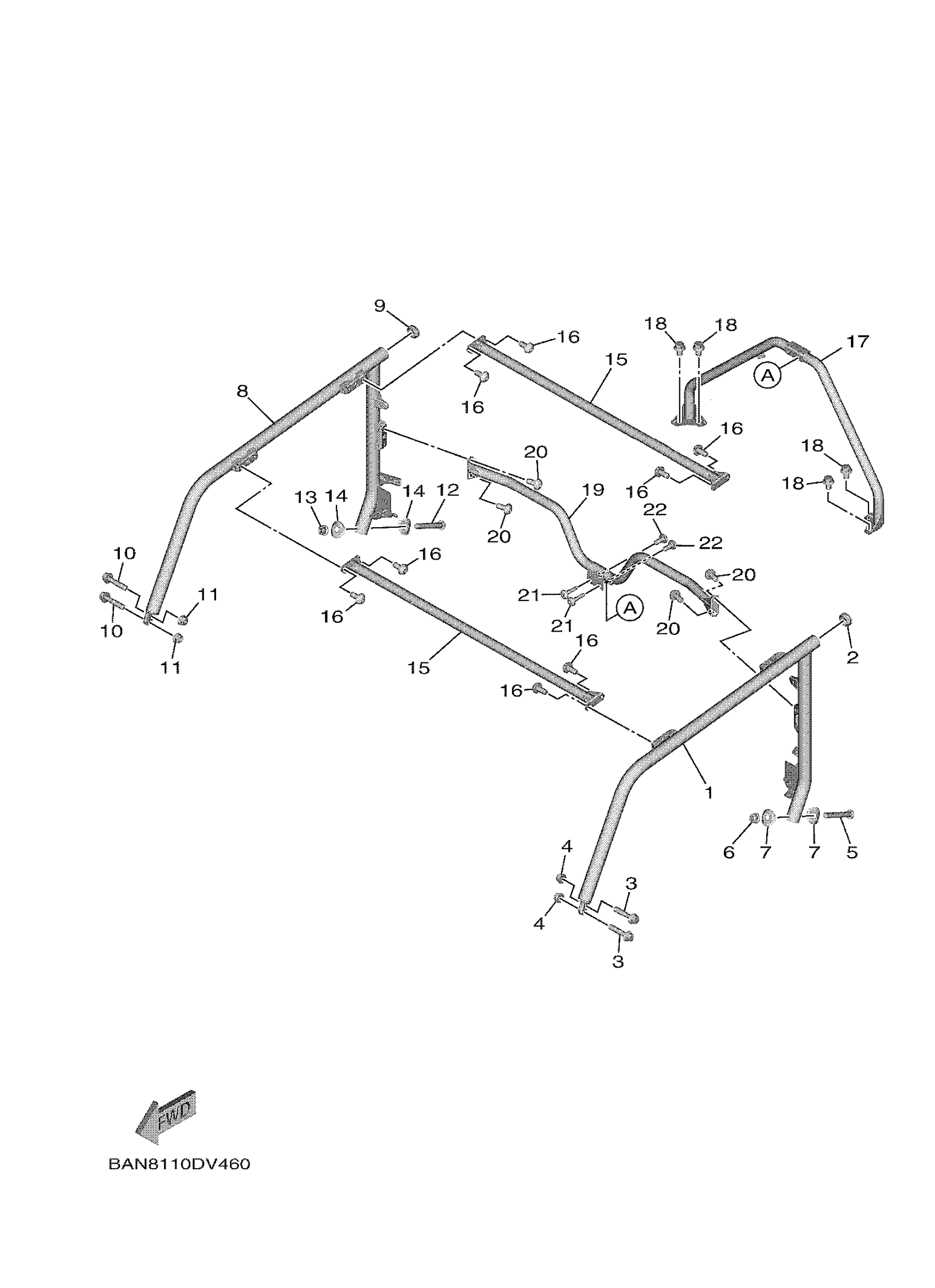

Yamaha YXE85WPBLL (WOLVERINE X2 EPS) BAN8 2020 GUARD 2 Diagram

SUPPORT, ROOF 3

PLUG

BOLT, FLANGE(4GB)

NUT, SELF-LOCKING

BOLT,BUTTON

NUT, SELF-LOCKING

WASHER 2

SUPPORT, ROOF 4

PLUG

BOLT, FLANGE(4GB)

NUT, SELF-LOCKING

BOLT,BUTTON

NUT, SELF-LOCKING

WASHER 2

MEMBER, ROOF FRAME

BOLT,HEX. SOCKET B

ROOF SUPPORT ASSY

BOLT, FLANGE

REINFORCEMENT, ROO

BOLT,HEX. SOCKET B

BOLT

NUT, SPECIAL
