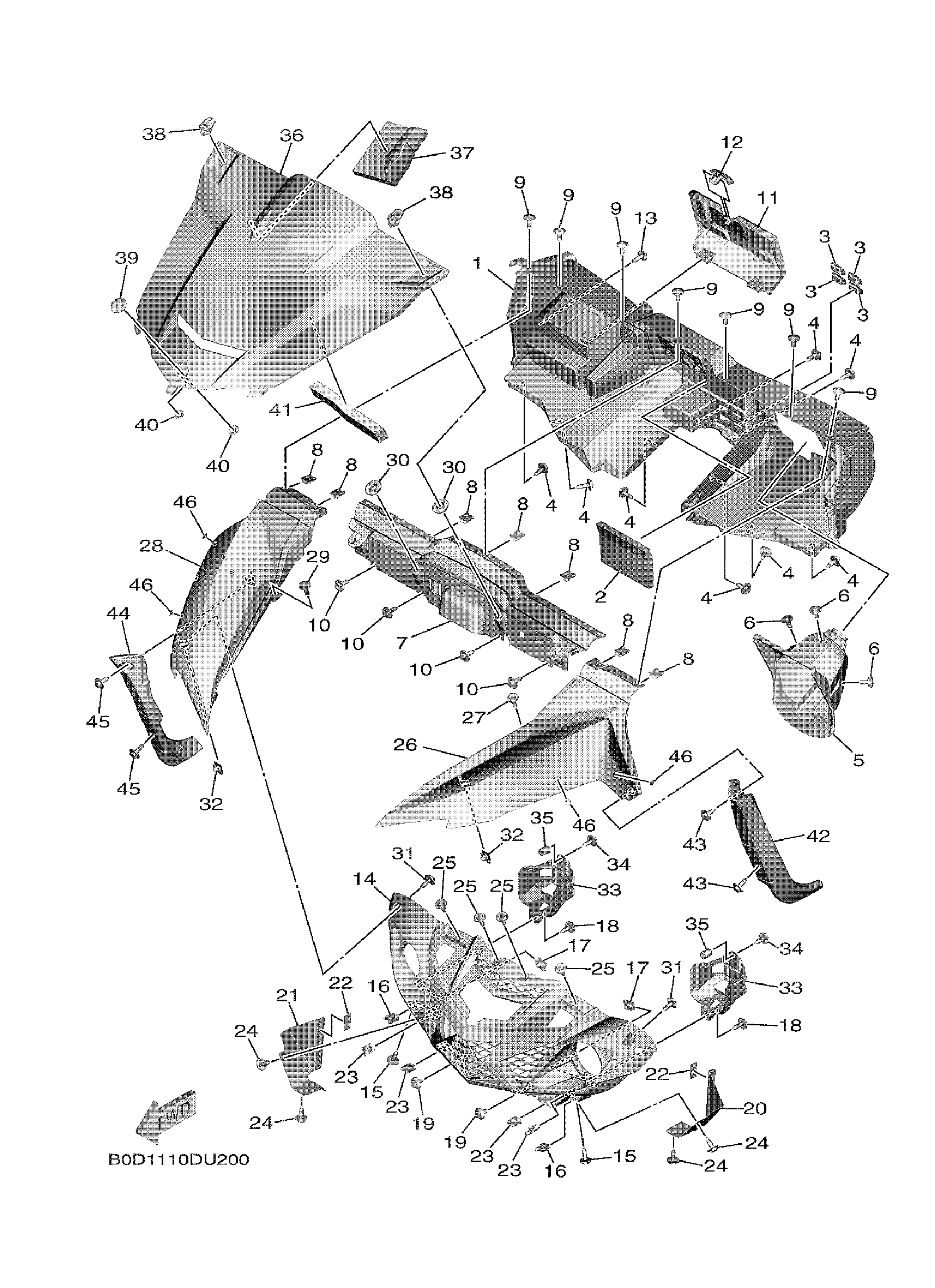

Yamaha YXE85WPBLL (WOLVERINE X2 EPS) BAN8 2020 FRONT FENDER Diagram
#
1
PANEL, INSTRUMENT
BG4-K7711-00-00
Unavailable
2
INSULATOR 4
B8K-F173S-00-00
$8.49
3
PLUG, HOLE
BG4-F312G-00-00
$1.64
4
BOLT, WITH WASHER
90119-06226-00
$8.49
5
COVER, STEERING
BG4-F3818-00-00
$18.99
6
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
7
COVER, FRONT
BG4-F2865-00-00
$33.99
8
NUT, SPRING
90183-060A6-00
$5.49
9
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
10
BOLT, WITH WASHER
90119-06226-00
$8.49
11
LID
BG4-F160F-00-00
$13.49
12
LOCK
F2X-U2875-00-00
Unavailable
13
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
14
GRILLE, FRONT
BG4-F8309-11-00
$85.99
15
BOLT, WITH WASHER
90119-06226-00
$8.49
16
NUT, SPRING
90183-060A6-00
$5.49
17
NUT, SPRING
90183-060A6-00
$5.49
18
BOLT, WITH WASHER
90119-06226-00
$8.49
19
BOLT
90109-06202-00
Unavailable
20
COVER 1
BG4-E246A-00-00
Unavailable
21
COVER 2
BG4-E246E-00-00
Unavailable
22
DAMPER
5UG-K7588-01-00
Unavailable
23
NUT, SPRING
90183-060A6-00
$5.49
24
BOLT, WITH WASHER
90119-06226-00
$8.49
25
BOLT, WITH WASHER
90119-06226-00
$8.49
26
FENDER, FRONT
BG4-F1511-00-00
Unavailable
27
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
28
FENDER, FRONT 2
BG4-F1556-00-00
Unavailable
29
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
30
GROMMET(4DN)
90480-01558-00
Unavailable
31
BOLT, WITH WASHER
90119-06226-00
$8.49
32
NUT, SPRING
90183-060A6-00
$5.49
33
COVER, HEADLIGHT
2UD-F838E-00-00
Unavailable
34
BOLT, WITH WASHER
90119-06226-00
$8.49
35
HOSE
90445-08029-00
Unavailable
36
HOOD 1
BG4-F1982-00-00
Unavailable
37
INSULATOR 4
B8K-F173S-00-00
$8.49
38
LEVER, LOCK
1XD-2175K-10-00
Unavailable
39
TUNING FORK MARK
1XD-F175B-01-00
Unavailable
40
NUT, SPRING
90183-06071-00
Unavailable
41
DAMPER, PLATE
90520-50004-00
Unavailable
42
EXT,FRONT FENDER 1
BG4-K8185-01-00
Unavailable
43
BOLT, WITH WASHER
90119-06226-00
$8.49
44
EXT,FRONT FENDER 2
BG4-K8186-01-00
Unavailable
45
BOLT, WITH WASHER
90119-06226-00
$8.49
46
PLUG
BG4-F4481-10-00
Unavailable
