Description

Price

1

SUPPORT, ROOF 3

B8K-K831A-00-00

$671.99

2

PLUG

B8K-F2417-00-00

$2.39

3

BOLT, FLANGE (8V9)

95812-10045-00

$4.19

4

NUT, SELF-LOCKING

90185-10011-00

$5.60

5

BOLT, BUTTON HEAD

92012-10070-00

$3.76

6

NUT, SELF-LOCKING

90185-10011-00

$5.60

7

WASHER 2

1XD-K7526-00-00

$5.49

8

SUPPORT, ROOF 4

B8K-K831E-00-00

$646.99

9

PLUG

B8K-F2417-00-00

$2.39

10

BOLT, FLANGE (8V9)

95812-10045-00

$4.19

11

NUT, SELF-LOCKING

90185-10011-00

$5.60

12

BOLT, BUTTON HEAD

92012-10070-00

$3.76

13

NUT, SELF-LOCKING

90185-10011-00

$5.60

14

WASHER 2

1XD-K7526-00-00

$5.49

15

MEMBER, ROOF FRAME

BG4-K8392-02-00

$215.99

16

BOLT,HEX. SOCKET B

90111-10802-00

Unavailable

17

ROOF SUPPORT ASSY

B8K-K830B-00-00

Unavailable

18

BOLT, FLANGE

95812-10016-00

Unavailable

19

REINFORCEMENT, ROO

B8K-K831M-00-00

Unavailable

20

BOLT,HEX. SOCKET B

90111-10802-00

Unavailable

21

BOLT, BUTTON HEAD

92012-10060-00

Unavailable

22

NUT, SELF-LOCKING

90185-10011-00

$5.60

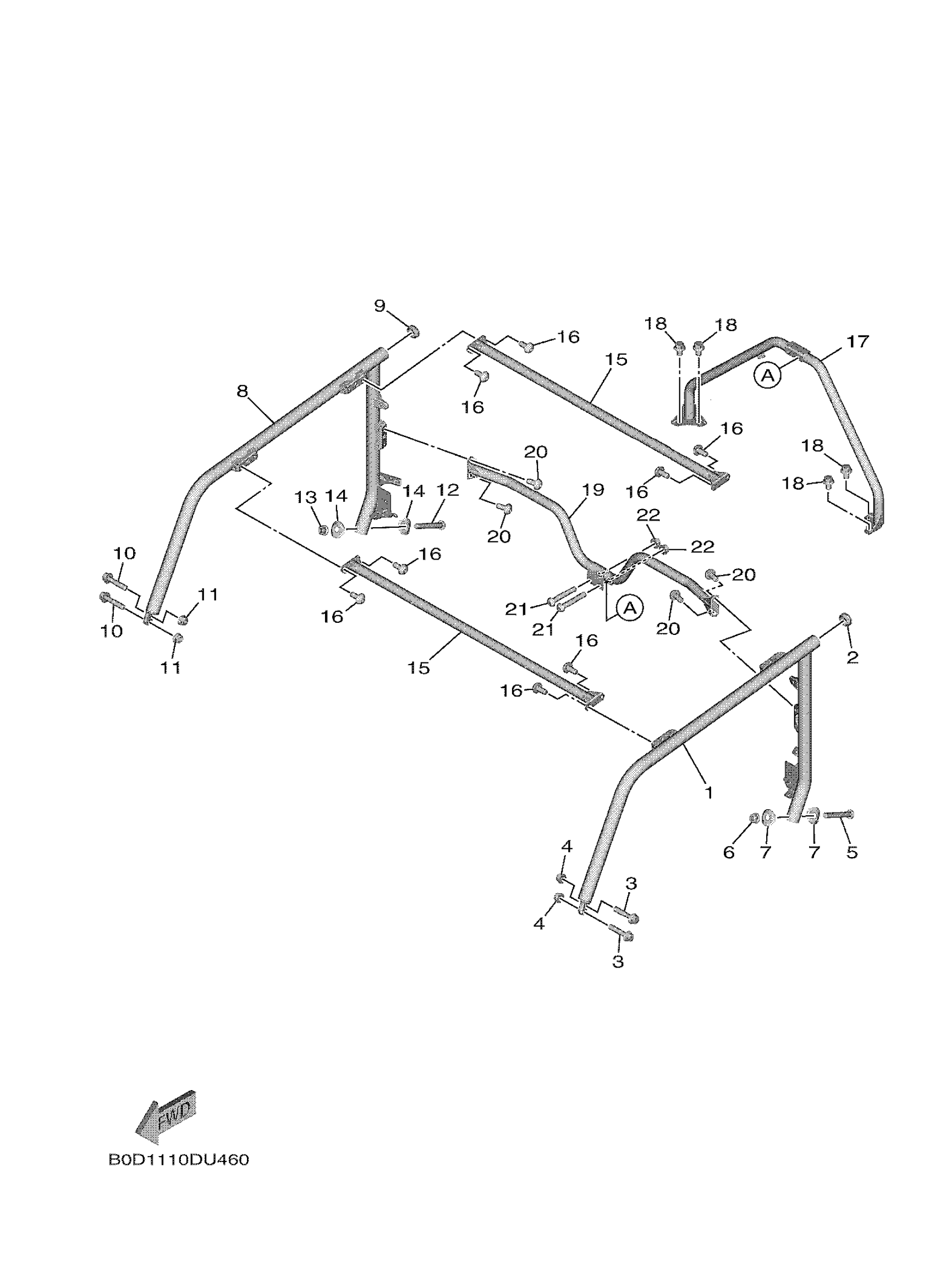

Yamaha YXE85WPBKD (WOLVERINE X2) B0D1 2019 GUARD 2 Diagram

SUPPORT, ROOF 3

PLUG

BOLT, FLANGE (8V9)

NUT, SELF-LOCKING

BOLT, BUTTON HEAD

NUT, SELF-LOCKING

WASHER 2

SUPPORT, ROOF 4

PLUG

BOLT, FLANGE (8V9)

NUT, SELF-LOCKING

BOLT, BUTTON HEAD

NUT, SELF-LOCKING

WASHER 2

MEMBER, ROOF FRAME

BOLT,HEX. SOCKET B

ROOF SUPPORT ASSY

BOLT, FLANGE

REINFORCEMENT, ROO

BOLT,HEX. SOCKET B

BOLT, BUTTON HEAD

NUT, SELF-LOCKING
