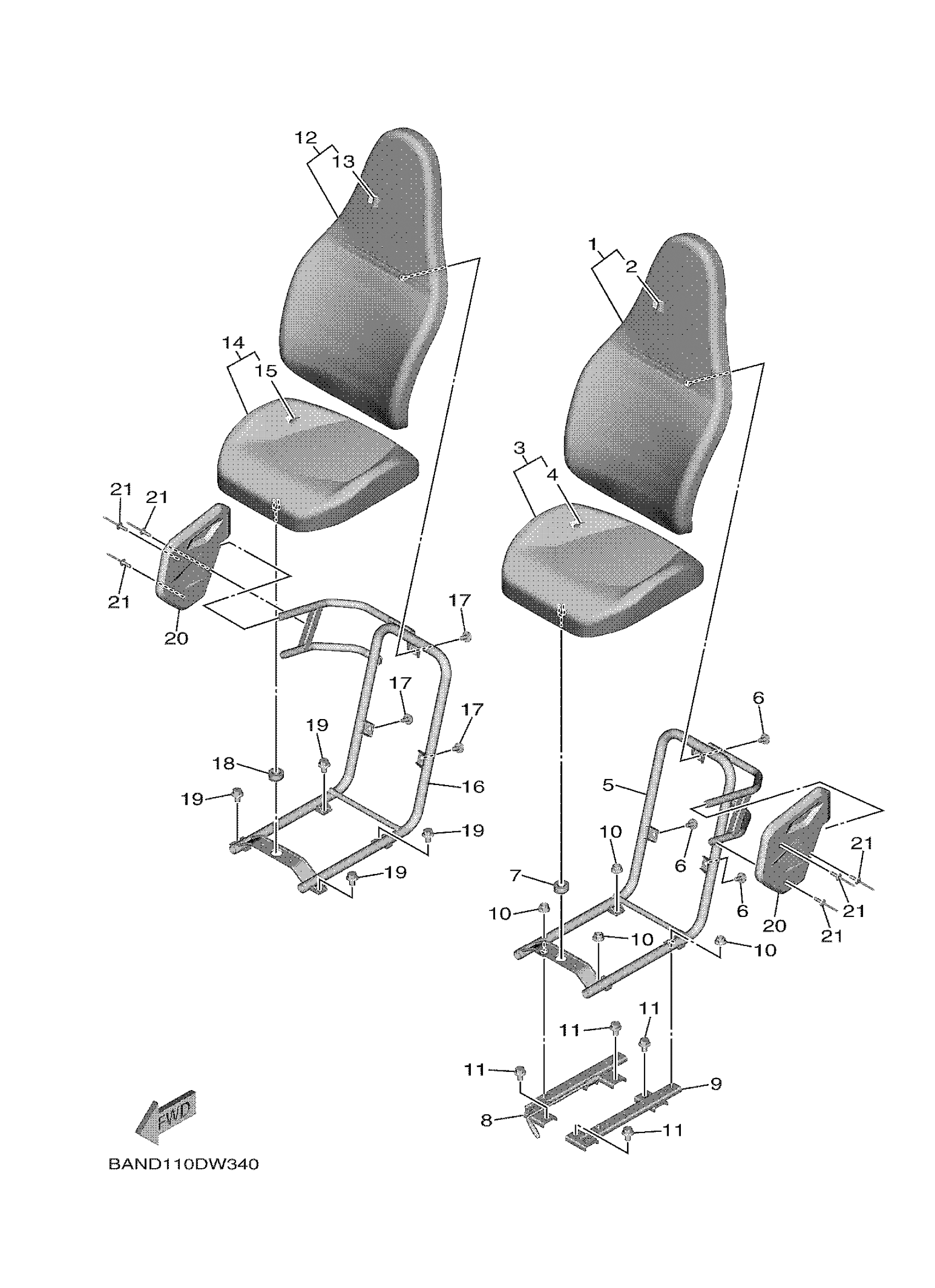

Yamaha YXE85WPAMS (WOLVERINE X2 EPS) BANF 2021 SEAT Diagram

#

Description
Price

1

SEAT BACK ASSY

BAR-F4790-02-00

$234.54

2

COVER, SINGLE SEAT

BAR-F4711-01-00

$222.78

3

SEAT ASSY 2

BAR-K8420-01-00

$147.00

4

COVER, SEAT BACK

BAR-F4791-01-00

$200.07

5

FRAME, SEAT 1

B4J-F473C-02-00

$124.85

6

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$1.68

7

GROMMET

1XD-F4742-00-00

$3.04

8

ADJUSTER ASSY

B4J-F7270-01-00

$47.09

9

ADJUSTER ASSY

B4J-F7260-01-00

$36.64

10

NUT, SELF-LOCKING

95602-08200-00

$2.69

11

BOLT, FLANGE

95817-08012-00

$3.71

12

SEAT BACK ASSY

BAR-F4790-02-00

$234.54

13

COVER, SINGLE SEAT

BAR-F4711-01-00

$222.78

14

SEAT ASSY 2

BAR-K8420-01-00

$147.00

15

COVER, SEAT BACK

BAR-F4791-01-00

$200.07

16

FRAME, SEAT 2

B4J-F473D-02-00

Unavailable

17

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$1.68

18

GROMMET

1XD-F4742-00-00

$3.04

19

BOLT, FLANGE

95817-08012-00

$3.71

20

COVER

B4J-F117F-00-00

Unavailable

21

RIVET, BLIND(J50)

90267-49152-00

Unavailable
