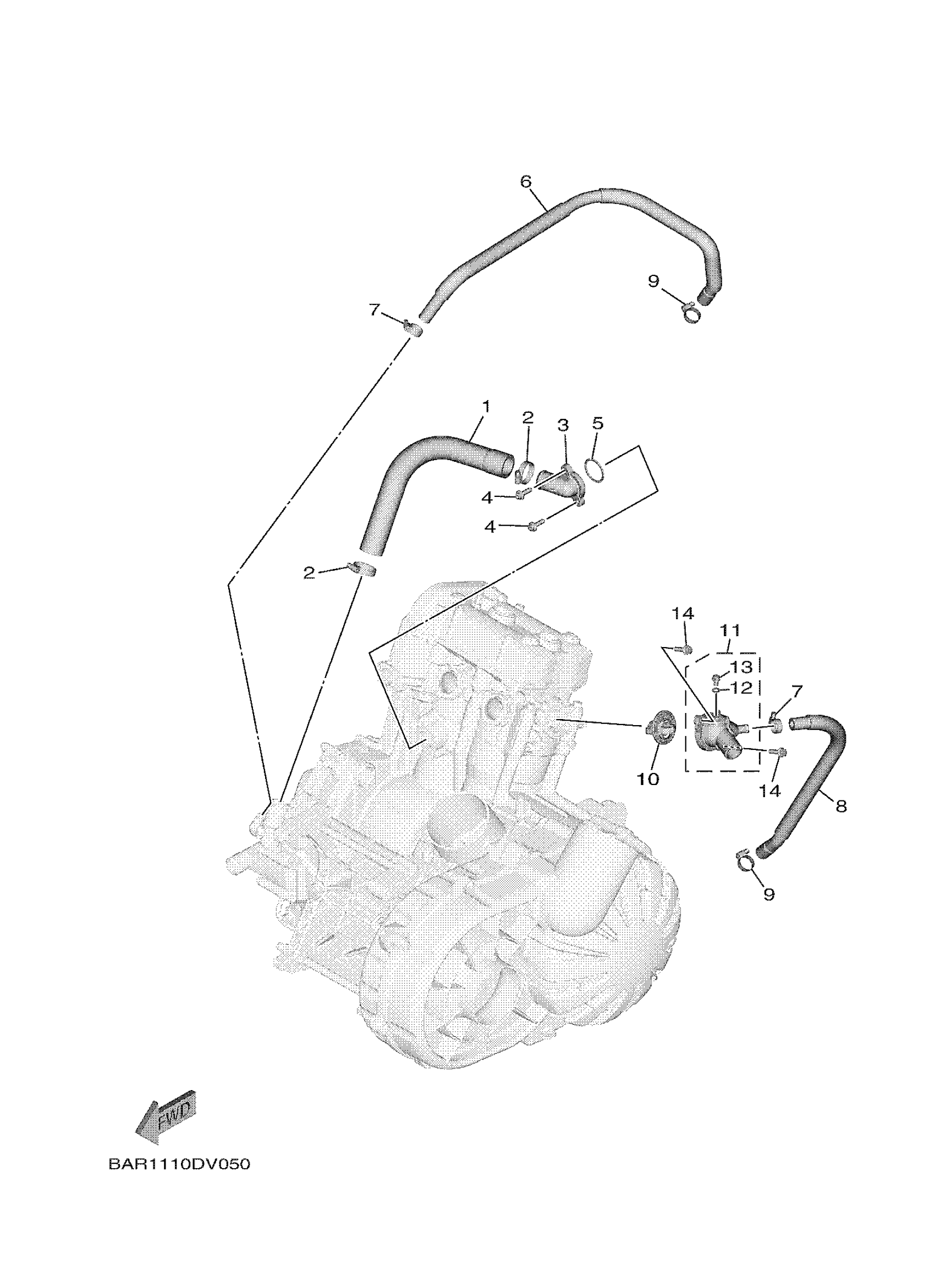

Yamaha YXE85WPALW (WOLVERINE X2 R-SPEC EPS) BAN5 2020 WATER PUMP Diagram

#

Description
Price

1

HOSE 7

B4D-E2551-00-00

$9.49

2

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

3

JOINT 1

B4D-E2469-00-00

$10.49

4

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$10.49

5

O-RING

93210-33006-00

$4.72

6

HOSE 5

BG4-12588-01-00

Unavailable

7

HOSE CLAMP ASSY

90450-18M09-00

Unavailable

8

HOSE 6

BG4-12589-00-00

Unavailable

9

HOSE CLAMP ASSY(64X)

90450-22M14-00

$16.99

10

THERMOSTAT ASSY

BG4-12410-01-00

$41.99

11

COVER ASSEMBLY

B4D-E240H-00-00

$17.99

12

GASKET 256113960000

90430-06014-00

Unavailable

13

BOLT, FLANGE

95022-06010-00

$5.60

14

BOLT, FLANGE

95817-06020-00

$3.81
