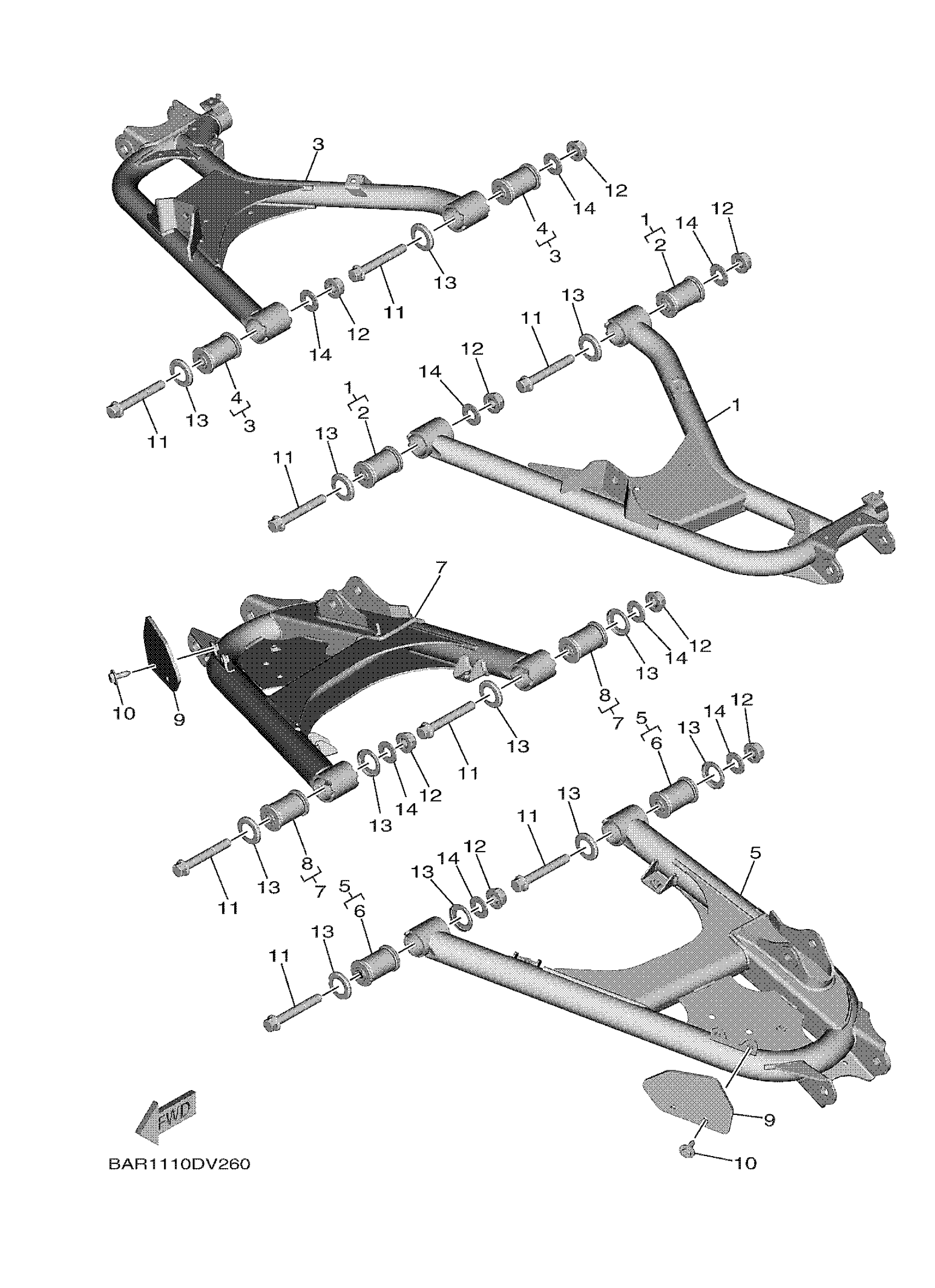

Yamaha YXE85WPALW (WOLVERINE X2 R-SPEC EPS) BAN5 2020 REAR ARM Diagram

#

Description
Price

1

RR. UPR. ARM COMP.

BAR-F2104-01-00

$62.17

2

BUSH

BAR-F3526-00-00

$92.48

3

RR. UPR. ARM COMP.

BAR-F2105-01-00

$63.23

4

BUSH

BAR-F3526-00-00

$92.48

5

RR LWR ARM COMP

BAR-F2106-02-00

$79.72

6

BUSH

BAR-F3526-00-00

$92.48

7

RR LWR ARM COMP

BAR-F2107-02-00

$103.28

8

BUSH

BAR-F3526-00-00

$92.48

9

COVER, THRUST 1

2HC-F2128-10-00

$2.00

10

BOLT, WITH WASHER

90119-06226-00

$2.00

11

BOLT, FLANGE

90105-12095-00

$7.16

12

NUT, SELF-LOCKING

90185-12002-00

$9.38

13

COVER, THRUST 1

BAR-F3517-00-00

Unavailable

14

WASHER, PLATE

90201-12045-00

$4.93
