- YXE85WPALW (WOLVERINE X2 R-SPEC EPS) BAN5 2020
FRONT BRAKE CALIPER

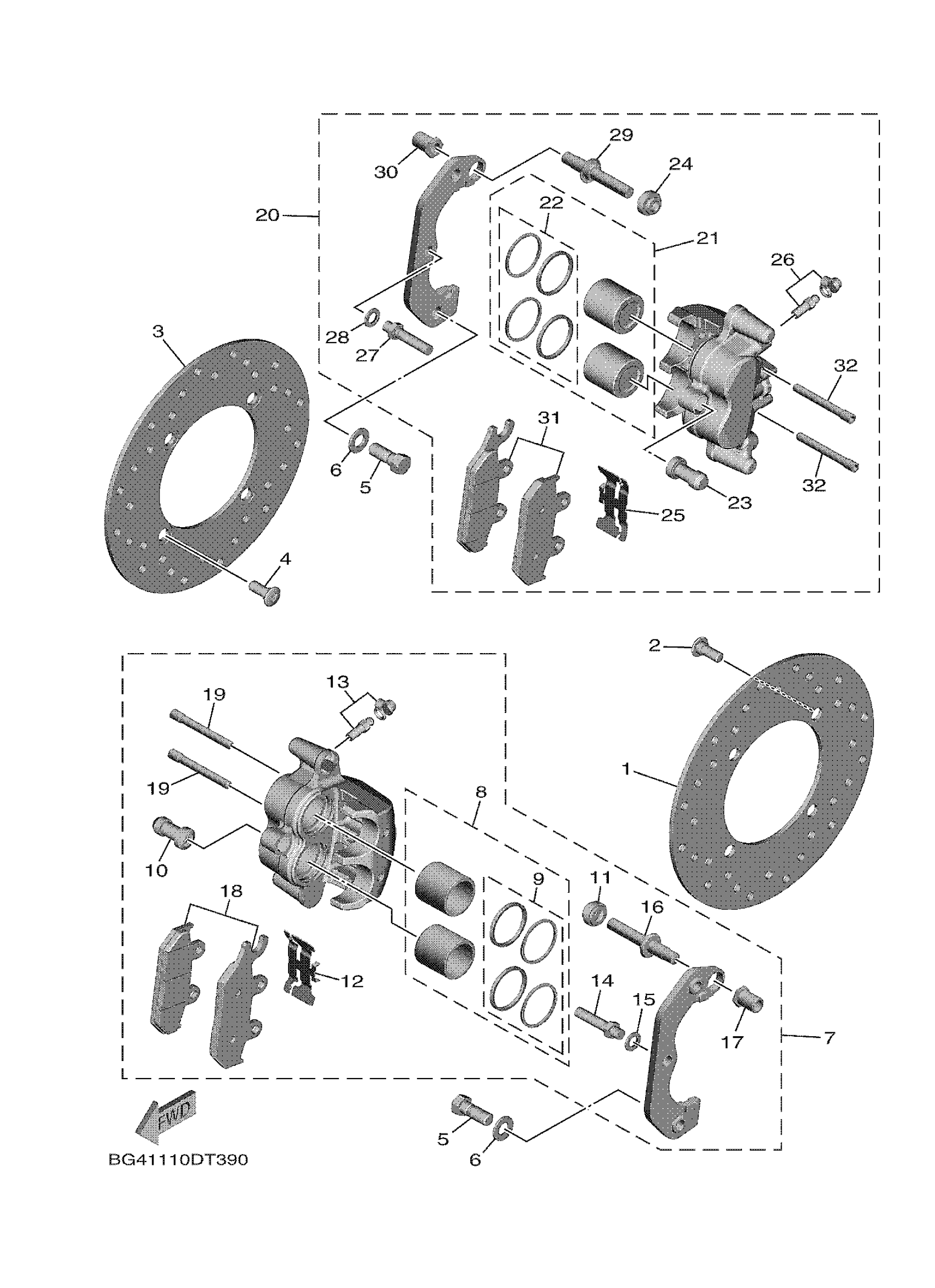

Yamaha YXE85WPALW (WOLVERINE X2 R-SPEC EPS) BAN5 2020 FRONT BRAKE CALIPER Diagram
#
1
DISC, BRAKE (LEFT)
2MB-F582T-00-00
Unavailable
2
BOLT
90109-08077-00
$8.49
3
DISC, BRAKE (LEFT)
2MB-F582T-00-00
Unavailable
4
BOLT
90109-08077-00
$8.49
5
BOLT
90101-10045-00
$2.55
6
WASHER, PLATE
90201-10033-00
$8.49
7
CALIPER ASSY (LEFT)
1XD-2580T-00-00
$427.99
8
PISTON ASSY, CALIPER
1XD-25802-00-00
$44.99
9
CALIPER SEAL KIT
1XD-25803-00-00
$42.99
10
BOOT 2
1UY-25937-51-00
$14.49
11
BOOT, CALIPER
3JD-25917-00-00
$8.99
12
SUPPORT, PAD
1XD-25919-00-00
$13.49
13
BLEED SCREW KIT
36Y-W0048-00-00
$9.99
14
BOLT
1UY-25926-51-00
$4.47
15
WASHER, SPRING
1UY-25938-51-00
Unavailable
16
BOLT
3JD-25926-00-00
Unavailable
17
NUT
3JD-25961-00-00
Unavailable
18
BRAKE PAD KIT
1XD-25805-00-00
Unavailable
19
PIN, PAD
3TB-25933-00-00
Unavailable
20
CALIPER ASSY (RIGHT)
1XD-2580U-00-00
Unavailable
21
PISTON ASSY, CALIPER
1XD-25802-00-00
$44.99
22
CALIPER SEAL KIT
1XD-25803-00-00
$42.99
23
BOOT 2
1UY-25937-51-00
$14.49
24
BOOT, CALIPER
3JD-25917-00-00
$8.99
25
SUPPORT, PAD
1XD-25919-00-00
$13.49
26
BLEED SCREW KIT
36Y-W0048-00-00
$9.99
27
BOLT
1UY-25926-51-00
$4.47
28
WASHER, SPRING
1UY-25938-51-00
Unavailable
29
BOLT
3JD-25926-00-00
Unavailable
30
NUT
3JD-25961-00-00
Unavailable
31
BRAKE PAD KIT
1XD-25805-10-00
Unavailable
32
PIN, PAD
3TB-25933-00-00
Unavailable
