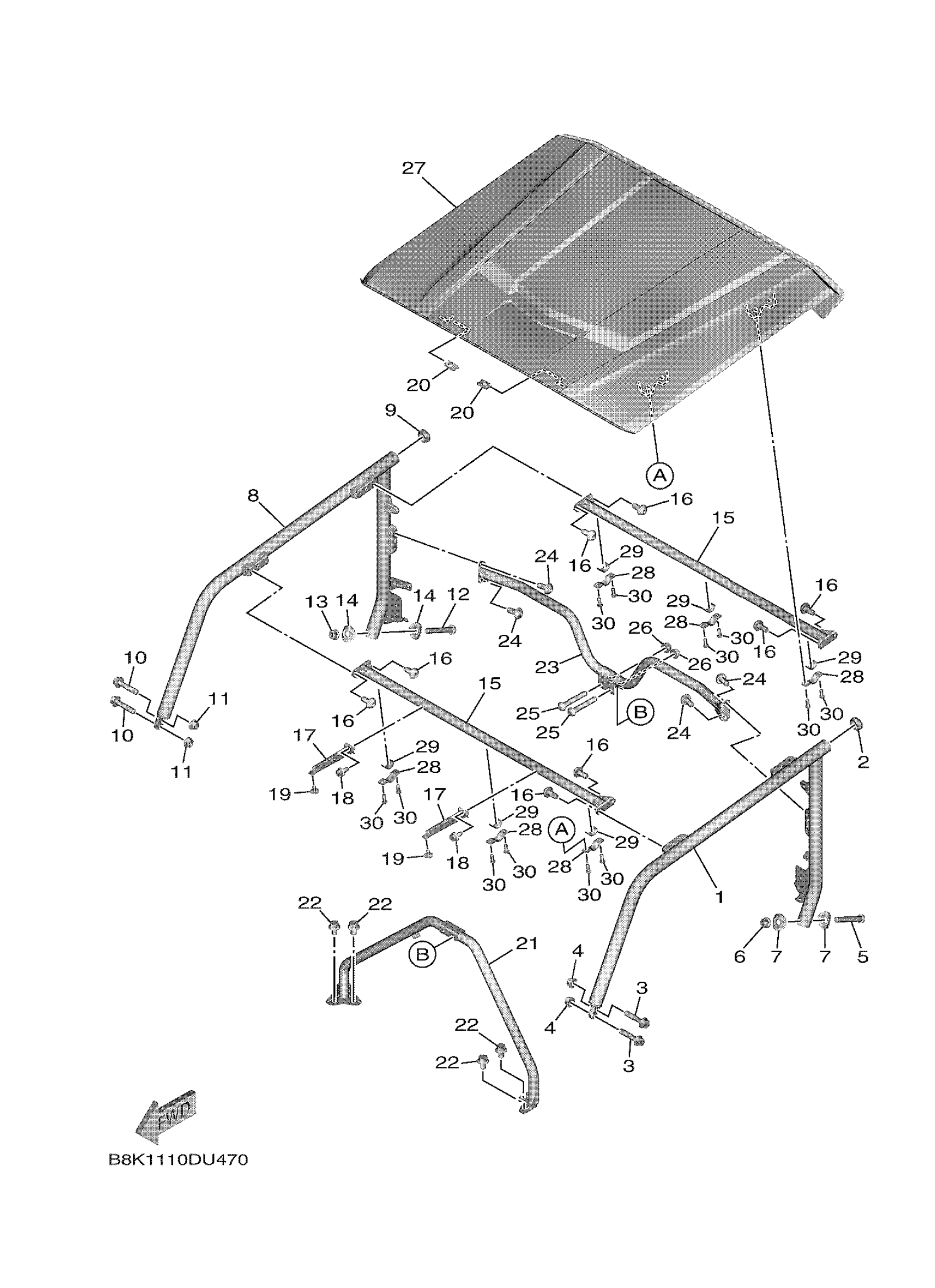

Yamaha YXE85WPAKW (WOLVERINE X2 R-SPEC EPS) B8K51 2019 GUARD 2 Diagram
#
Description
Price
1
SUPPORT, ROOF 3
B8K-K831A-00-00
$671.99
2
PLUG
B8K-F2417-00-00
$2.39
3
BOLT, FLANGE (8V9)
95812-10045-00
$4.19
4
NUT, SELF-LOCKING
90185-10011-00
$5.60
5
BOLT, BUTTON HEAD
92012-10070-00
$3.76
6
NUT, SELF-LOCKING
90185-10011-00
$5.60
7
WASHER 2
1XD-K7526-00-00
$5.49
8
SUPPORT, ROOF 4
B8K-K831E-00-00
$646.99
9
PLUG
B8K-F2417-00-00
$2.39
10
BOLT, FLANGE (8V9)
95812-10045-00
$4.19
11
NUT, SELF-LOCKING
90185-10011-00
$5.60
12
BOLT, BUTTON HEAD
92012-10070-00
$3.76
13
NUT, SELF-LOCKING
90185-10011-00
$5.60
14
WASHER 2
1XD-K7526-00-00
$5.49
15
MEMBER, ROOF FRAME
BG4-K8392-02-00
$215.99
16
BOLT,HEX. SOCKET B
90111-10802-00
Unavailable
17
SUPPORT 1
B8K-F2567-00-00
Unavailable
18
BOLT, FLANGE
90105-08867-00
Unavailable
19
BOLT,HEX. SOCKET BUTTON
90111-06083-00
Unavailable
20
NUT, SPRING
90183-060A6-00
Unavailable
21
ROOF SUPPORT ASSY
B8K-K830B-00-00
Unavailable
22
BOLT, FLANGE
95812-10016-00
Unavailable
23
REINFORCEMENT, ROO
B8K-K831M-00-00
Unavailable
24
BOLT,HEX. SOCKET B
90111-10802-00
Unavailable
25
BOLT, BUTTON HEAD
92012-10060-00
Unavailable
26
NUT, SELF-LOCKING
90185-10011-00
$5.60
27
COVER, SUN ROOF
B8K-K8314-00-00
Unavailable
28
CLAMP,SUPPORT
2HC-K8366-01-00
Unavailable
29
DAMPER, PLATE
90520-02842-00
Unavailable
30
TAPPING SCREW
90169-06801-00
Unavailable
