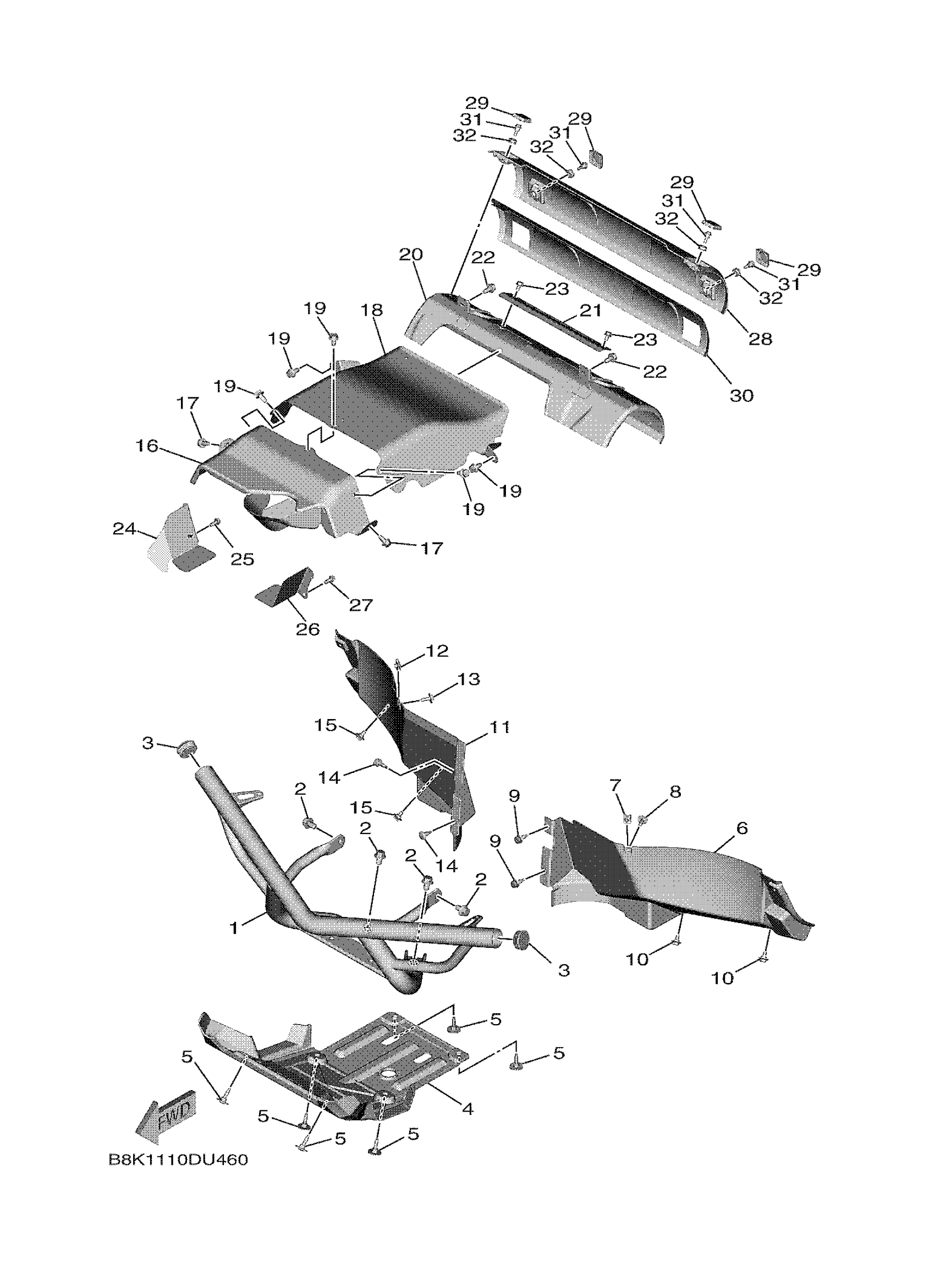

Yamaha YXE85WPAKW (WOLVERINE X2 R-SPEC EPS) B8K51 2019 GUARD Diagram

#

Description
Price

1

BAR, CARRY FRONT

BG4-F845N-01-00

Unavailable

2

BOLT, FLANGE

95812-10016-00

$9.49

3

PLUG (FRONT BUMPER)

5UG-F2417-00-00

$6.99

4

COVER, UNDER

2MB-F8385-00-00

$31.99

5

BOLT

90109-068A5-00

$7.49

6

GUARD 1

BG4-F2361-01-00

$18.99

7

NUT, SPRING

90183-060A6-00

$5.49

8

BOLT, WITH WASHER

90119-06226-00

$8.49

9

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

10

BOLT

90109-06202-00

$7.49

11

GUARD 2

BG4-F2362-01-00

$26.99

12

NUT, SPRING

90183-060A6-00

$5.49

13

BOLT, WITH WASHER

90119-06226-00

$8.49

14

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

15

BOLT

90109-06202-00

$7.49

16

INSULATOR, HEAT

BG4-F2898-02-00

Unavailable

17

BOLT, FLANGE

90105-08867-00

Unavailable

18

SHIELD, HEAT

BG4-F3892-01-00

Unavailable

19

BOLT, FLANGE

90105-08867-00

Unavailable

20

INSULATOR, MOUNTING

BG4-F2891-00-00

Unavailable

21

INSULATOR, MOUNTIN

BG4-F2894-00-00

Unavailable

22

BOLT, FLANGE

90105-08867-00

Unavailable

23

BOLT, FLANGE

95812-06010-00

Unavailable

24

PROTECTOR 2

BG4-F2826-00-00

Unavailable

25

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

Unavailable

26

PROTECTOR 1

BG4-F2825-00-00

Unavailable

27

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

Unavailable

28

PROTECTOR, MUFFLER

B8K-F194H-00-00

Unavailable

29

CAP

2MB-F143A-00-00

Unavailable

30

INSULATOR, HEAT

B8K-F2898-01-00

Unavailable

31

BOLT

90109-06262-00

Unavailable

32

GROMMET

90480-12025-00

Unavailable
