- YXE85WPAKW (WOLVERINE X2 R-SPEC EPS) B8K51 2019
FRONT WHEEL

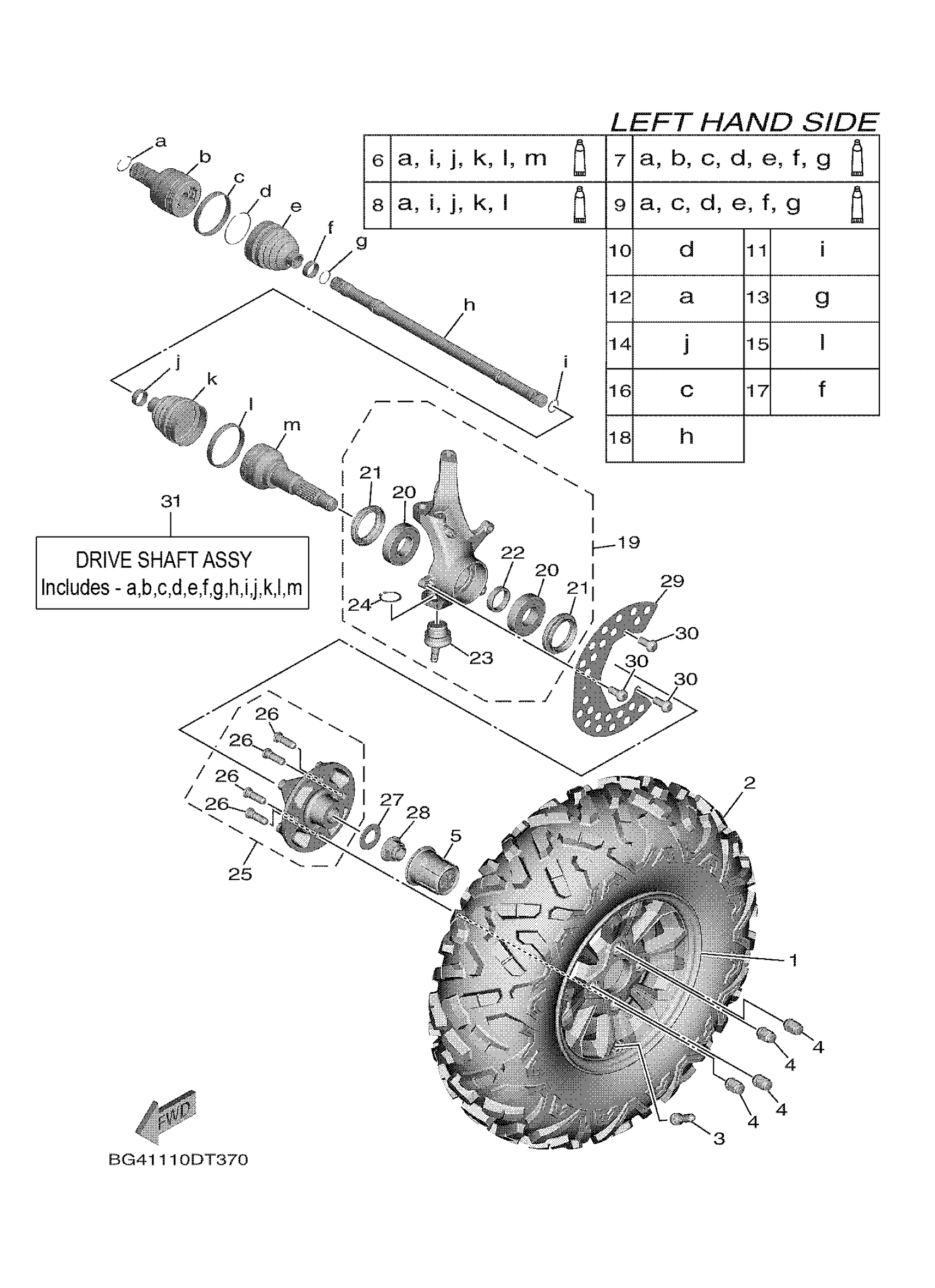

Yamaha YXE85WPAKW (WOLVERINE X2 R-SPEC EPS) B8K51 2019 FRONT WHEEL Diagram
#
1
CAST WHEEL, FRONT
BG4-F5168-00-00
$244.99
2
TIRE (26X8.00-12 MU75 4PR TL)
94108-12824-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
4
NUT, CROWN
90176-12800-00
$7.49
5
CAP, WHEEL
2MB-F512A-00-00
$2.65
6
BALL JOINT SET
BG4-2510F-00-00
$484.99
7
DOUBLE OFF SET JOINT
BG4-2510J-01-00
$355.99
8
BOOT SET (BALL JOI
BG4-2510G-02-00
Unavailable
9
BOOT SET(DOUBLE OFFSET JOINT)
BG4-2510H-01-00
$59.99
10
NUT, AXLE
BG4-25182-00-00
$3.98
11
CIRCLIP
2HC-2512H-00-00
$3.80
12
CLIP, SPRING
16B-2536E-00-00
$4.63
13
. SNAP RING
16B-2512J-00-00
Unavailable
14
BOOT BAND (BALL JOINT)
2HC-2510U-00-00
$6.99
15
BOOT BAND (SMALL)
BG4-2512G-00-00
$5.60
16
BOOT BAND(DOUBLE OFFSET JOINT)
BG4-2511H-00-00
Unavailable
17
BOOT BAND (BALL JOINT)
BG4-2511G-00-00
Unavailable
18
SHAFT
BG4-2518E-00-00
Unavailable
19
STEERING KNUCKLE A
1XD-F3501-00-00
Unavailable
20
BEARING
93306-20725-00
Unavailable
21
OIL SEAL
93106-50002-00
Unavailable
22
COLLAR
90387-35007-00
Unavailable
23
BALL JOINT 2
1XD-23579-00-00
Unavailable
24
CIRCLIP
93410-32075-00
Unavailable
25
HUB ASSY 2
2MB-F510D-04-00
Unavailable
26
BOLT, SERRATION
90114-12005-00
Unavailable
27
WASHER, PLATE
90201-25023-00
Unavailable
28
NUT
90179-24006-00
Unavailable
29
RING, WHEEL 1
1XD-F514A-01-00
Unavailable
30
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
31
DRIVE SHAFT ASSY
BG4-2518F-02-00
Unavailable
