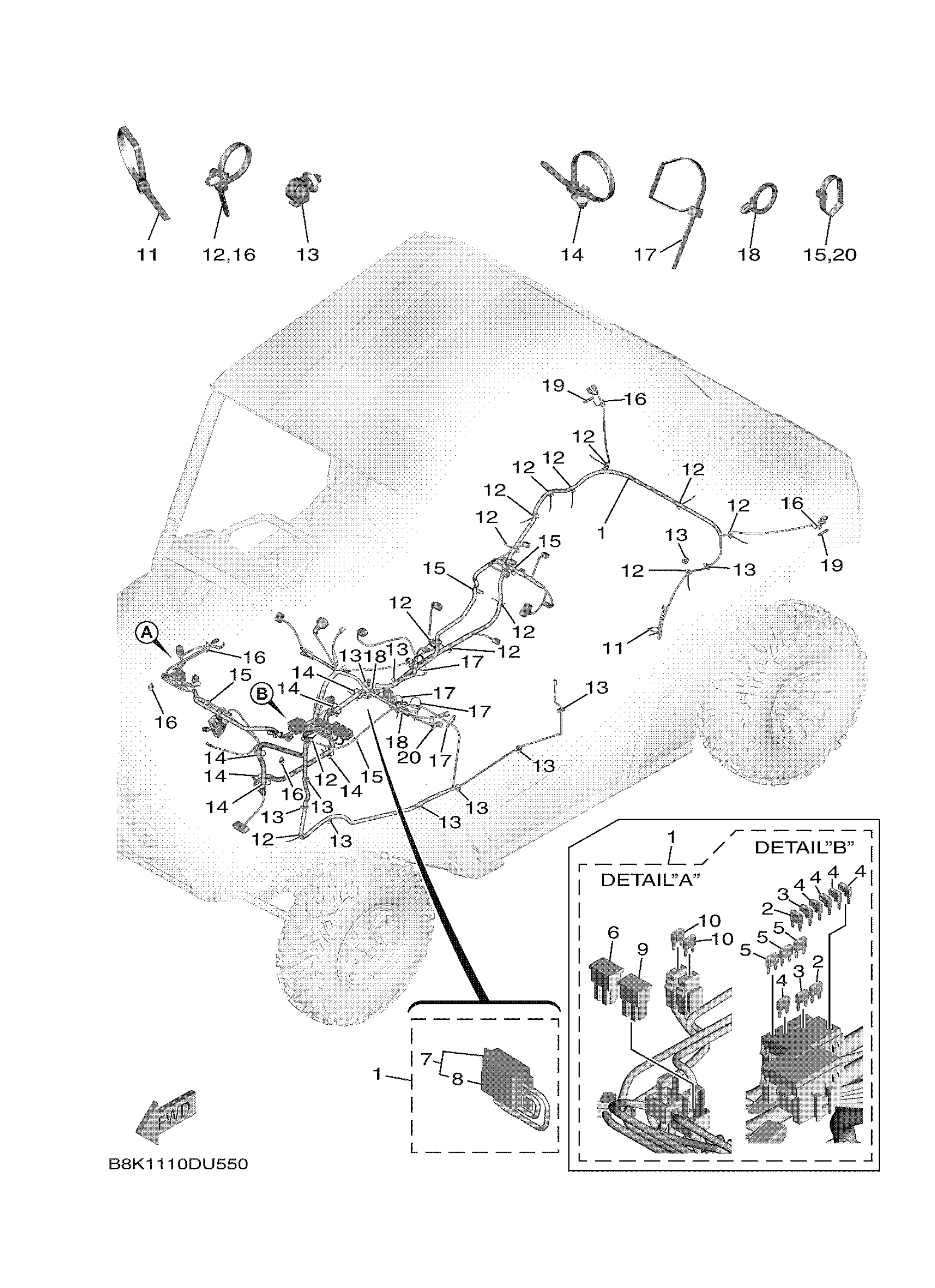

Yamaha YXE85WPAKW (WOLVERINE X2 R-SPEC EPS) B8K51 2019 ELECTRICAL 3 Diagram

#

Description
Price

1

WIRE HARNESS ASSY

B8K-82590-00-00

Unavailable

2

FUSE

5JJ-82151-60-00

$7.99

3

FUSE (15A)

67F-82151-50-00

Unavailable

4

FUSE (7.5A-BL)

5JJ-82151-00-00

$6.99

5

. FUSE (10A)

67F-82151-40-00

Unavailable

6

SLOW BLOW FUSE

JR9-82151-00-00

$13.49

7

CIRCUIT BREAKER ASSY

5B4-82180-00-00

$43.99

8

THERMO SWITCH ASSY

5B4-82560-00-00

$56.99

9

FUSE (50A)

5JW-82151-10-00

$16.49

10

FUSE

5JJ-82151-20-00

$7.99

11

CLAMP

90464-48800-00

Unavailable

12

CLAMP

5B4-F1338-00-00

$3.33

13

CLAMP

90464-12830-00

$1.49

14

CLAMP

1NS-F1338-00-00

$3.33

15

CLAMP(JN6)

90464-31827-00

$3.40

16

CLAMP

5B4-F1338-00-00

$3.33

17

CLAMP(JN6)

90464-40825-00

Unavailable

18

CLAMP

90464-19815-00

Unavailable

19

MOLD, FUEL TANK

5VN-24188-00-00

Unavailable

20

CLAMP(JN6)

90464-31827-00

$3.40
