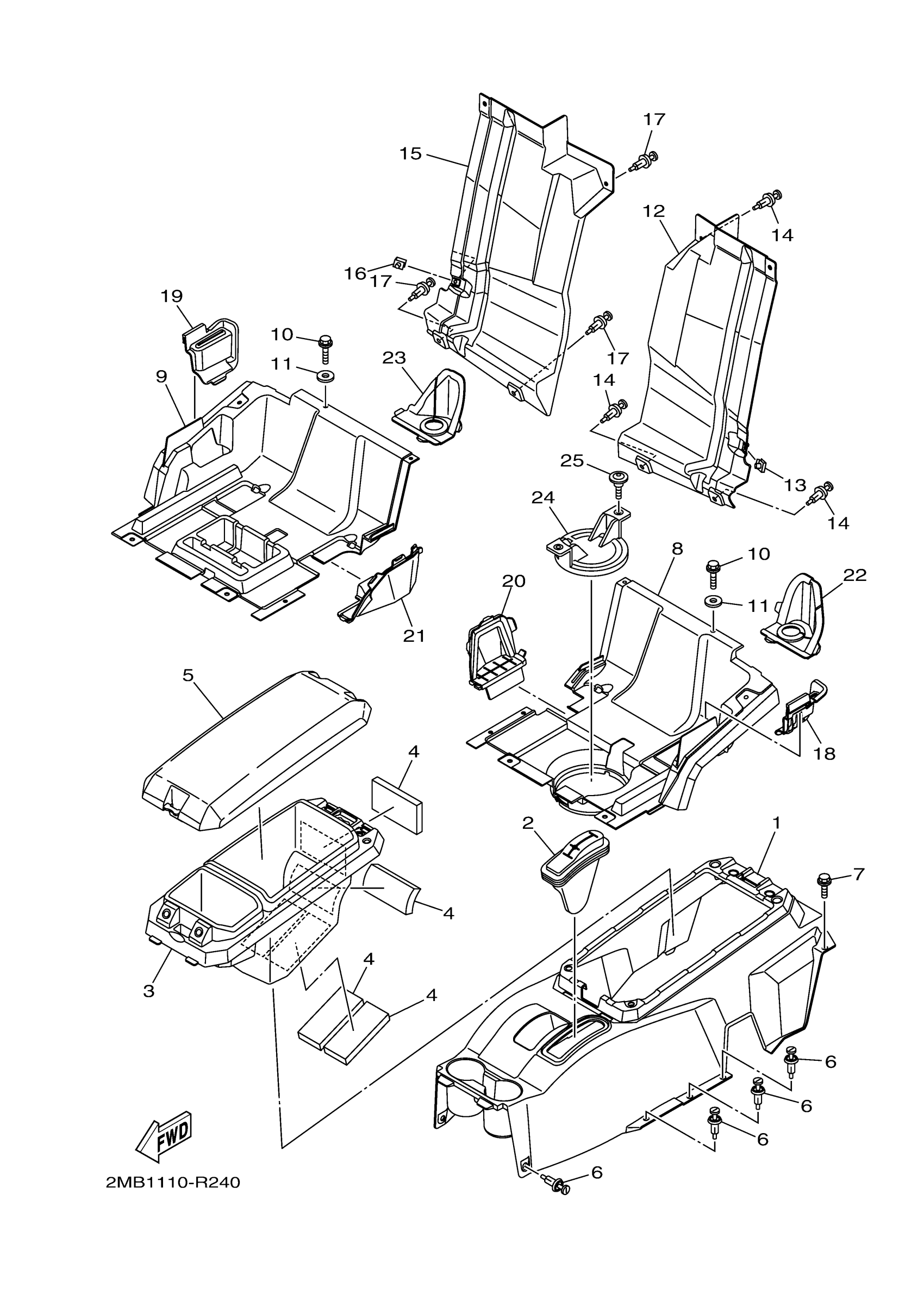

Yamaha YXE70WPXHG (WOLVERINE R-SPEC EPS) 2MBC 2017 SIDE COVER 2 Diagram

#

Description
Price

1

COVER 1

2MB-F8219-00-00

Unavailable

2

COVER, HANDLE LEVE

1XD-F6372-00-00

$7.56

3

BOX

2MB-F1653-00-00

$26.62

4

PAD, BODY PROTECT 8

JR4-7826L-00-00

$4.20

5

LID 2

2MB-F177J-00-00

$13.06

6

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

7

BOLT, WITH WASHER

90119-06226-00

$2.12

8

PLATE, UNDER 1

2MB-F84A3-00-00

Unavailable

9

PLATE, UNDER 2

2MB-F84A4-00-00

Unavailable

10

BOLT, FLANGE

90105-06833-00

$1.63

11

WASHER, PLATE

90201-06036-00

$5.84

12

MUD GUARD 1

2MB-F2327-00-00

$81.64

13

NUT, SPRING

90183-060A6-00

$3.90

14

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

15

MUD GUARD 2

2MB-F2328-00-00

$21.91

16

NUT, SPRING

90183-060A6-00

$3.90

17

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

18

PLATE, RUBBER 1

2MB-F8483-00-00

Unavailable

19

PLATE, RUBBER 2

2MB-F8484-00-00

$8.27

20

PLATE, RUBBER 3

2MB-F8485-00-00

$9.79

21

PLATE, RUBBER 4

2MB-F8499-00-00

$13.89

22

PLATE, RUBBER 5

2MB-F845J-00-00

Unavailable

23

PLATE, RUBBER 6

2MB-F846J-00-00

$8.71

24

PLATE, RUBBER 7

2MB-F847J-00-00

Unavailable

25

BOLT

90109-068A5-00

Unavailable
