Description

Price

1

BRACKET,PEDL SUPRT

1XD-F2548-00-KT

Unavailable

1

BRACKET,PEDL SUPRT

1XD-F2548-10-00

$61.99

2

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

3

ACCEL PEDAL ASSY

1XD-F7801-00-00

Unavailable

4

WASHER, PLATE

90201-15018-00

$7.49

5

CIRCLIP (122)

93430-12008-00

$8.49

6

SPRING, TENSION (2X4)

90506-20192-00

$7.49

7

PEDAL, BRAKE

1XD-F7200-00-00

$48.99

8

WASHER, PLATE

90201-15018-00

$7.49

9

CIRCLIP (122)

93430-12008-00

$8.49

10

SPRING, TENSION (2X4)

90506-20192-00

$7.49

10

SPRING, TENSION

90506-23023-00

$5.49

11

CABLE, THROTTLE 1

2MB-26311-00-00

$64.99

12

CLAMP(JN6)

90464-40825-00

$3.05

13

CLAMP

5B4-F1338-00-00

$3.33

14

PARKING LEVER ASSY

BDW-F5690-00-00

Unavailable

15

. SWITCH COMP

5UG-H251S-00-00

Unavailable

16

BOLT, FLANGE

95817-06012-00

Unavailable

17

WIRE, BRAKE 1

2MB-26341-02-00

Unavailable

18

CLAMP

90464-12830-00

Unavailable

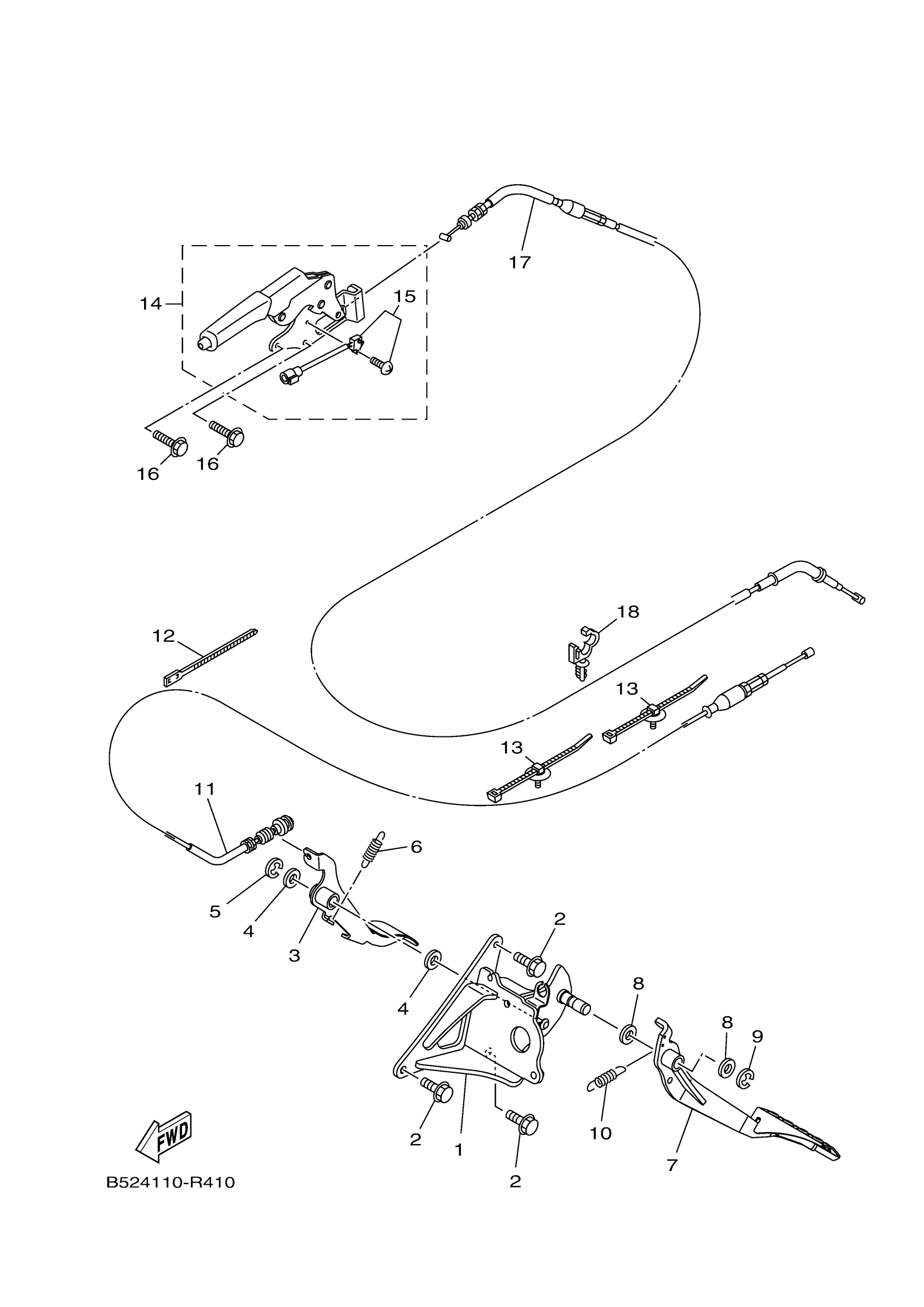

Yamaha YXE70WPXHG (WOLVERINE R-SPEC EPS) 2MBC 2017 PEDAL WIRE Diagram

BRACKET,PEDL SUPRT

BRACKET,PEDL SUPRT

BOLT, FLANGE(JN5)

ACCEL PEDAL ASSY

WASHER, PLATE

CIRCLIP (122)

SPRING, TENSION (2X4)

PEDAL, BRAKE

WASHER, PLATE

CIRCLIP (122)

SPRING, TENSION (2X4)

SPRING, TENSION

CABLE, THROTTLE 1

CLAMP(JN6)

CLAMP

PARKING LEVER ASSY

. SWITCH COMP

BOLT, FLANGE

WIRE, BRAKE 1

CLAMP
