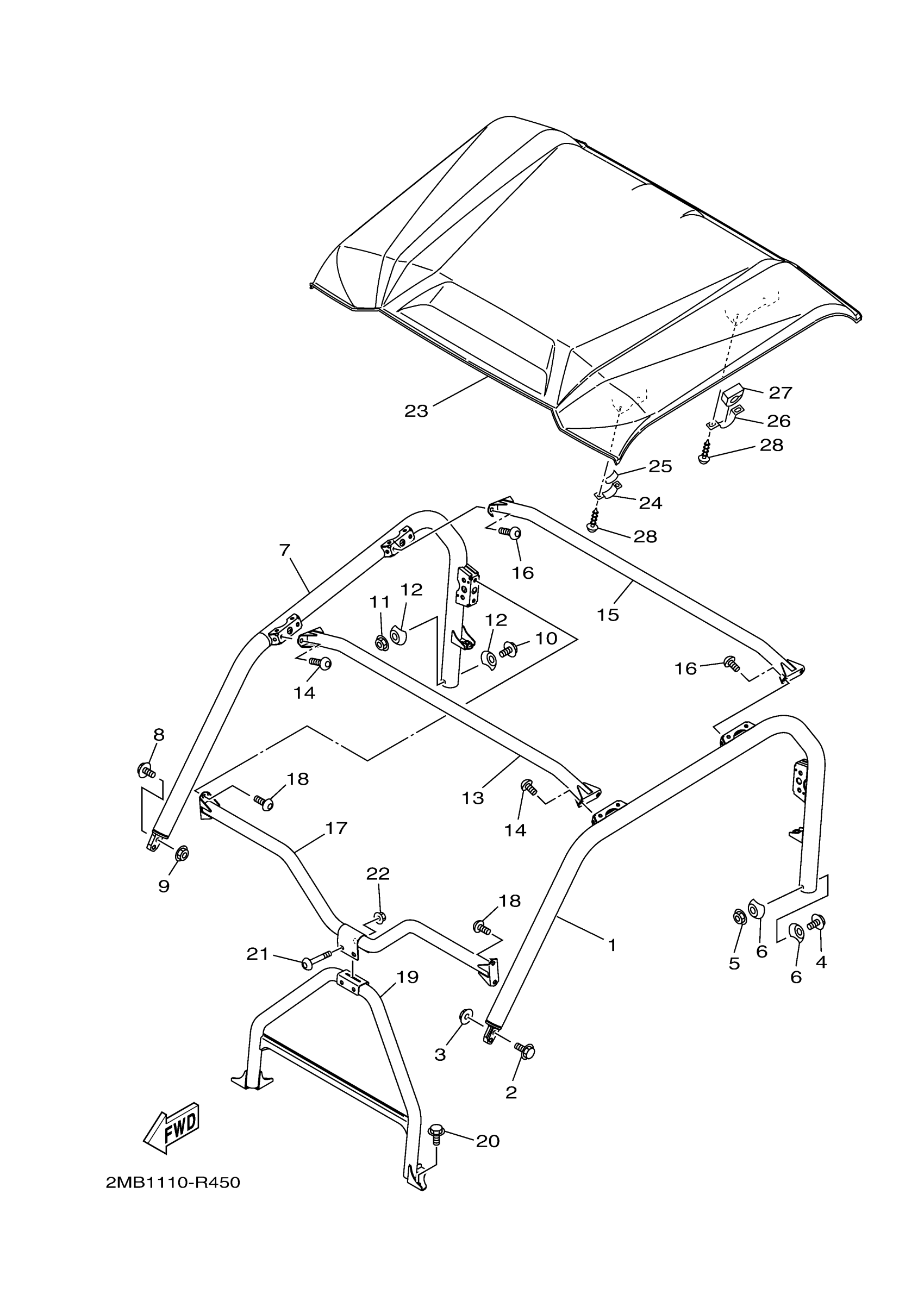

Yamaha YXE70WPXHG (WOLVERINE R-SPEC EPS) 2MBC 2017 GUARD 2 Diagram

#

Description
Price

1

SUPPORT, ROOF 3

1XD-K831A-00-00

$255.08

2

BOLT, FLANGE (8V9)

95812-10045-00

$3.48

3

NUT, SELF-LOCKING

90185-10011-00

$3.67

4

BOLT, BUTTON HEAD

92012-10070-00

$3.92

5

NUT, SELF-LOCKING

90185-10011-00

$3.67

6

WASHER 2

1XD-K7526-00-00

$3.92

7

SUPPORT, ROOF 4

1XD-K831E-00-00

$229.50

8

BOLT, FLANGE (8V9)

95812-10045-00

$3.48

9

NUT, SELF-LOCKING

90185-10011-00

$3.67

10

BOLT, BUTTON HEAD

92012-10070-00

$3.92

11

NUT, SELF-LOCKING

90185-10011-00

$3.67

12

WASHER 2

1XD-K7526-00-00

$3.92

13

MEMBER, ROOF FRAME

2MB-K8392-00-00

Unavailable

14

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

15

MEMBER, ROOF FRAME

2MB-K8393-00-00

$70.17

16

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

17

ROOF SUPPORT ASSY

2MB-K830A-00-00

Unavailable

18

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

19

ROOF SUPPORT ASSY 2

2MB-K830B-00-00

$118.24

20

BOLT, FLANGE

95812-10016-00

Unavailable

21

BOLT, BUTTON HEAD

92012-10060-00

Unavailable

22

NUT, SELF-LOCKING

90185-10011-00

$3.67

23

COVER, SUN ROOF

2MB-K8314-00-00

$274.99

24

CLAMP, SUPPORT

5UG-K8366-00-00

Unavailable

25

DAMPER

5UG-K7588-01-00

Unavailable

26

CLAMP, SUPPORT

1XP-K8366-00-00

Unavailable

27

DAMPER

1XP-K7588-00-00

Unavailable

28

SCREW, TAPPING

90167-06800-00

Unavailable
